PIAGGIO X9 - Page 40

X9 125-180 ce 4T4V
Vehicle overhaul data

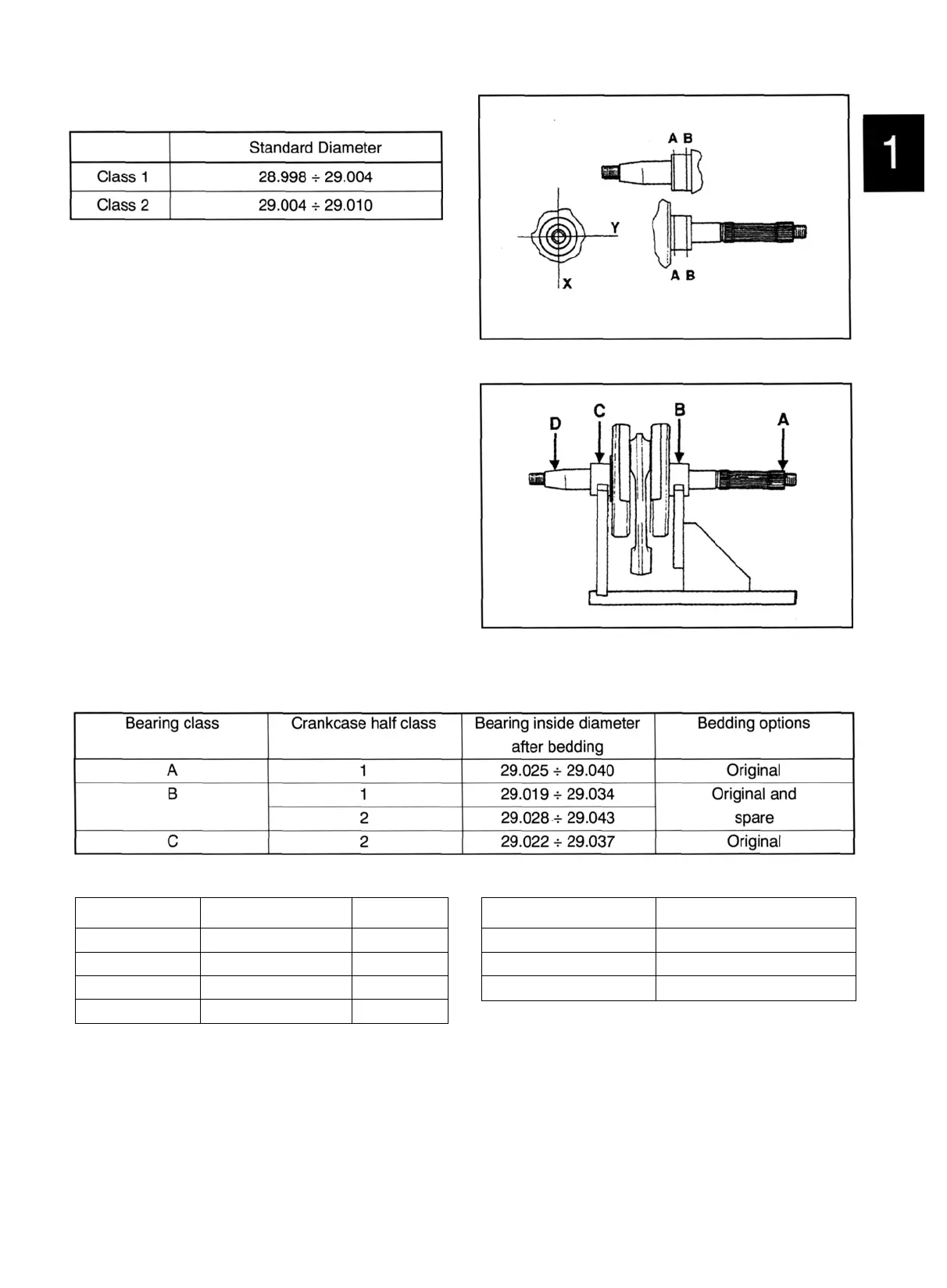

Checking the crankshaft alignment
01 011
Maximum allowable misalignment: A = 0.15 mm
Β = 0.01 mm
C = 0.01 mm
D = 0.10 mm
01 012
Bearing and crankcase half classes
Crankcase half
Class 1
Class 2
Class 1
Class 2
Axle shaft
Class 1
Class 2
Class 2
Class 1
Bearing
Β
Β
A
C
TYPE
A
Β
C
COLOUR CODING
Red
Blue
Yellow
1 st Update to part no. 594599 X9 125-180 cc 4T 4V 1 - 31
Primera actualización dib. 594599 X9 125-180 cc 4T 4V
1 ' Atualização Des. 594599 X9 125-180 cc 4T 4V
