PIEPS DSP SPORT User Manual

ADDITIONAL FUNCTIONS FOR PIEPS DSP PRO
2. FREQUENCY MEASUREMENT
Press the SCAN button for more than 3 seconds while in
the SEARCH-mode. The PIEPS DSP PRO uses the frequency
measurement to check the frequency of all other beacons. The
frequency of the strongest (closest) beacon is measured. The
deviation from the standardized frequency 457kHz is indicated.
The shown number is the deviation in Hz and the arrows indicates
+ (right) or – (left). The frequency measurement ends when the
button SCAN is not pressed any longer.
IMPORTANT! Check the transmitting frequency of your partners
on tour regularly. According the standard EN300718 a beacon must
transmit within the range of 457 kHz +/- 80 Hz. Ideal and reasonable
technical operation will have a maximum deviation of no more than
+/- 30 Hz.
3. TX600-SUPPORT
The PIEPS TX600 is a mini-transmitter for dogs and equipment that
is transmitting out of the standard, EN300718 and can be received
with every PIEPS DSP PRO.
Press the MARK and SCAN buttons simultaneously for 3 seconds
while in the SEARCH-mode. The PIEPS DSP PRO switches into
the TX600-mode (“TX”-indication on the display) and indicates
the direction and distance to the strongest TX600 signal. Also the
functions MARK, SCAN and frequency measurement are available
in TX600-mode. To activate the search according to the standard
EN300718 again, switch the PIEPS DSP PRO to the SEND-mode
and then back to the SEARCH-mode.
IMPORTANT! In the standard SEARCH-mode the PIEPS DSP
PRO does not indicate the TX600. Active search operations are never
inuenced. A detection of the TX600 without switching to a special
mode is only possible in immediate vicinity (<1 m).

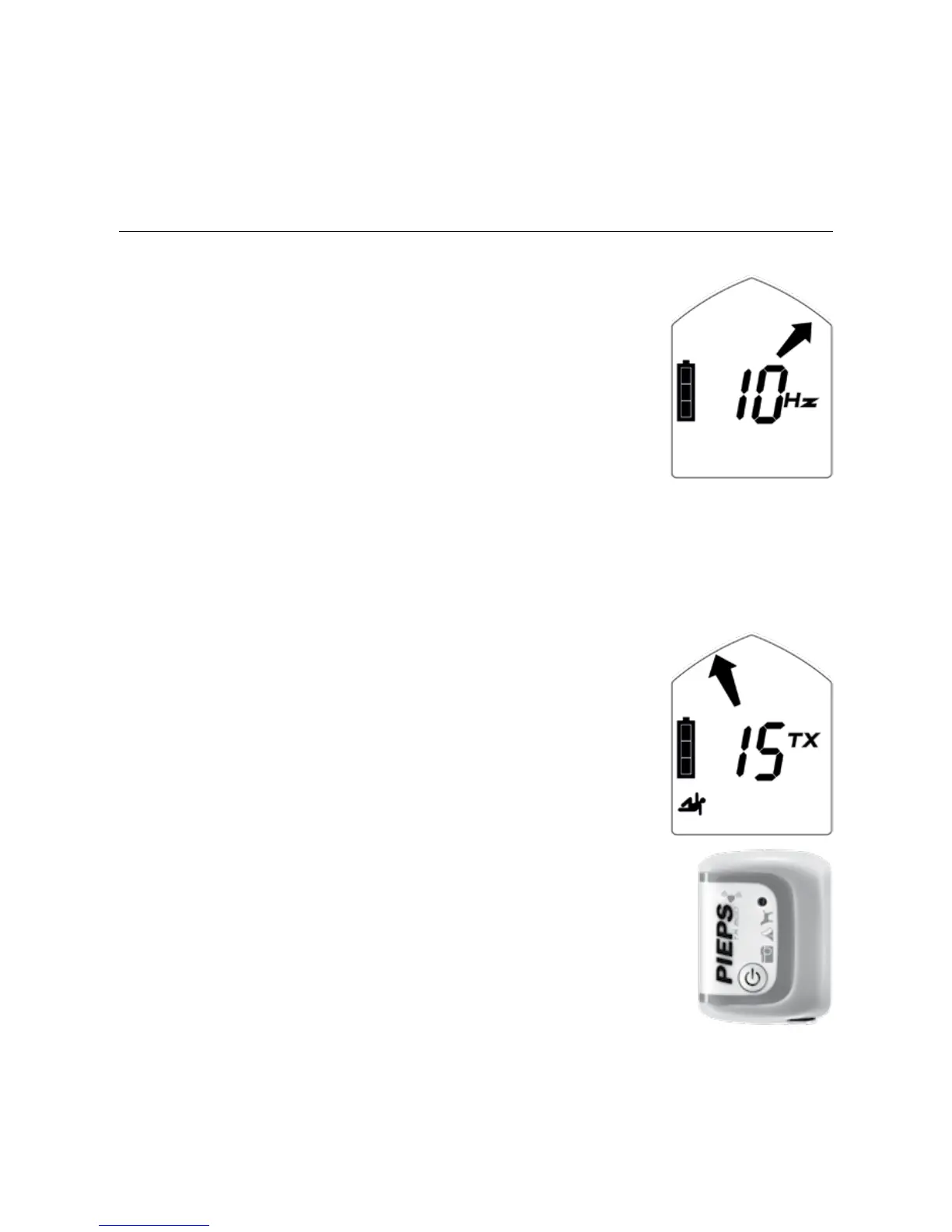

Example: the frequency
of the measured signal
is 457 kHz + 10 Hz
(=457.010 Hz)
| 08/13
32

PIEPS DSP SPORT Specifications

General

Frequency	457 kHz
Temperature Range	-20°C to +45°C
Marking function	Yes
Number of antennas	3
Multiple Burial Function	Yes
Range	50 m
Battery Life	200 h
Batteries	3 AAA
