8

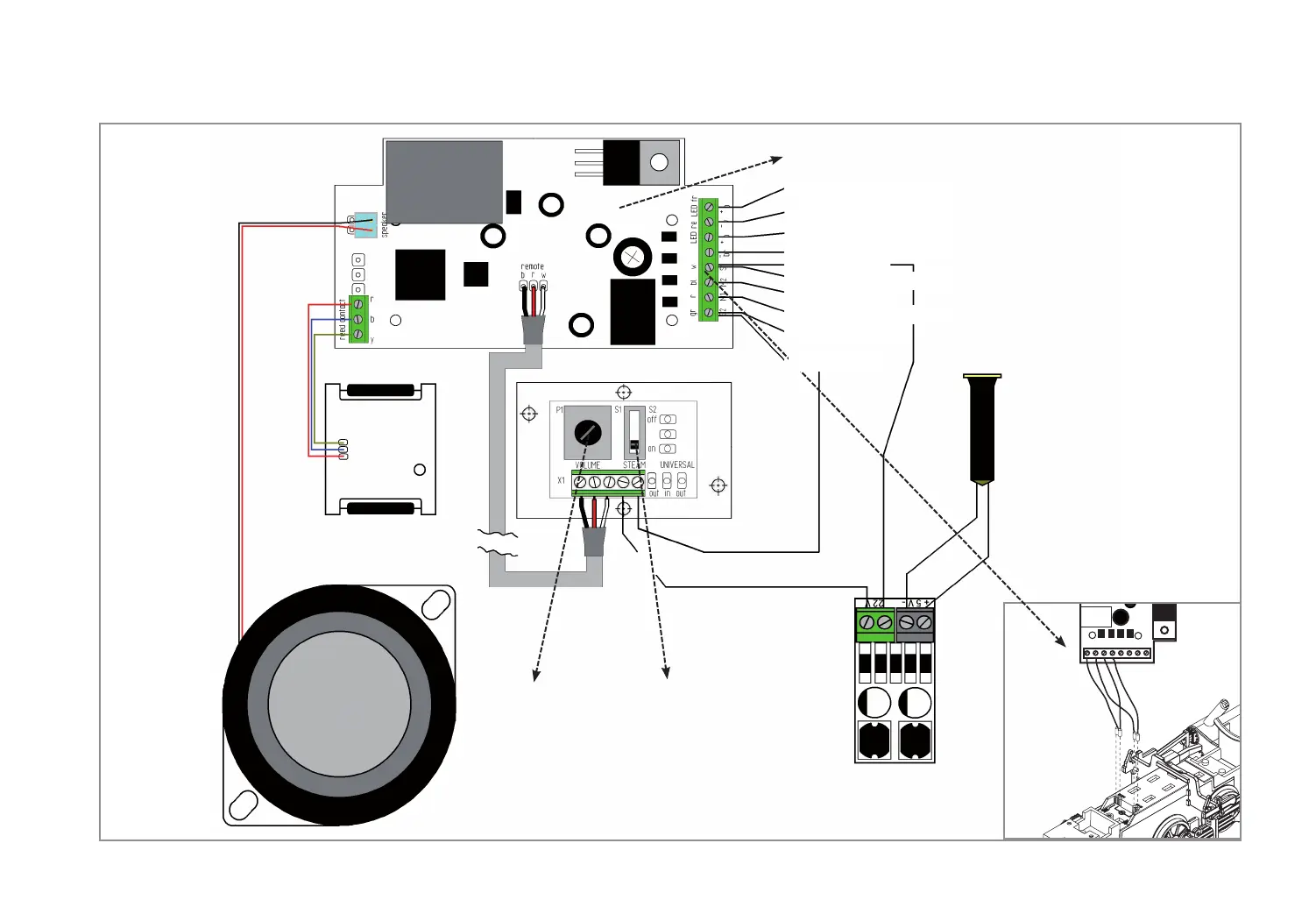

VERDRAHTUNGSSCHEMA
Wiring scheme · Schema de câblage · Bedradingsschema
36142
Dampfgenerator
Smoke Unit
Génétateur de fumée
Rookgenerator
rot / red
blau / blue
grün / green
Hauptplatine
Main Circuit Board
Lautstärkeregler
Volume control
Réglage du volume
Volume regelaar
36143
Festspannungsregler
Voltage Regulator
Lautsprecher
loud-speaker
haut parleur
luidspreker
Reedkontaktschalter
Reed Switch Assembly
Contact Reed
Reed contact
gelb/rot
yellow/red
jaune/rouge
geel/rood
schwarz/rot
black/red
noir/rouge
zwart/rood
S2
S2
M2
M2
M1
M1
S1
S1
Schalter für Dampf-Funktion
Smoke Switch
Interrupteur de générateur de fumée
Schakelaar voor de rookgenerator
LED + vorne schwarz / front black
LED vorne gelb / front yellow
LED + hinten schwarz / rear black
LED + hinten braun / rear brown
M2 Motor blau / blue
M1 Motor rot / red
S2 Gleis grau / S2 track grey
AUX grün / green
AUX schwarz / black
S1 Gleis weiß / S1 track white
