6
Pin hinge(24x24mm)
Make sure hinges are
mounted in the same line.
1mm
Aileron
Tailing
edge
Make sure they are in
the right position while
installing.
Securely glue together. If coming off during flights, you 'll
lose control of your airplane which leads to accidents!
8
6
2
2
2
4
2
2
2
2
Clevis
Rod (2x300mm)
Retainer
TP Screw (2.3x12mm)
Wooden Block
(20x20x8mm)
Servo tray(68.5x56.5x2mm)
Pin hinge(24x24mm)
Screw (3x35mm)
Washer(3x15mm)
2
Washer(3x15mm)
Lock Nut (3mm )
Clevis
Retainer
Rod (2x300mm)
Screw (2x10mm)

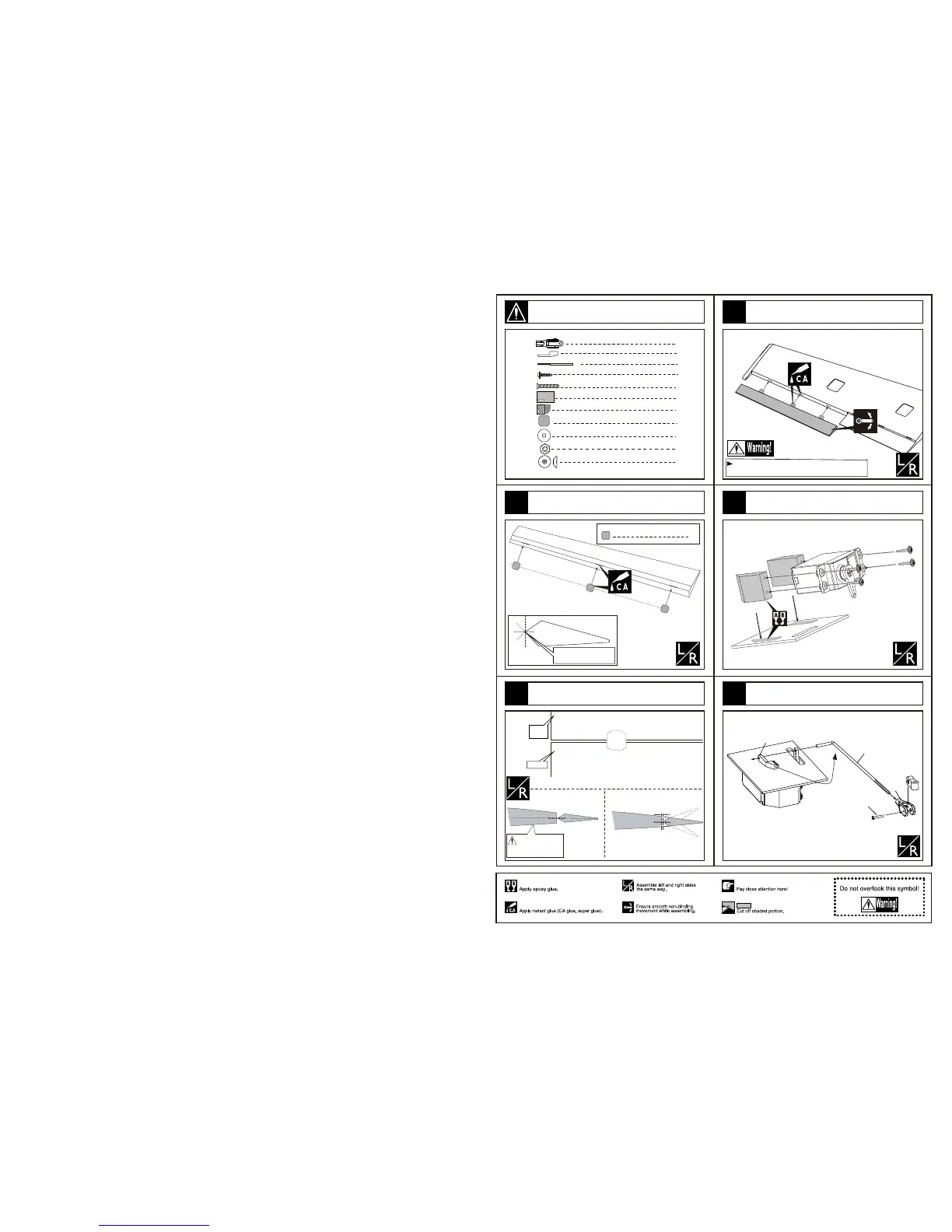

Install the nylon control horn and connect the linkage.
Install the servo as the illustration below.
Assemble the aileron to main wing with instant type
CA glue.
Keep some space about 1mm width between aileron
and trailing edge.
Accessory list for the coming installation steps.
Apply instant type CA glue to aileron and pin hinge.
1
2
3
4
5
1
