Cut free the trailing edge of the vertical rudder in line with the stabiliser, in order to
allow you to slide the stabiliser into the fuselage. Keep the removed section for
later.

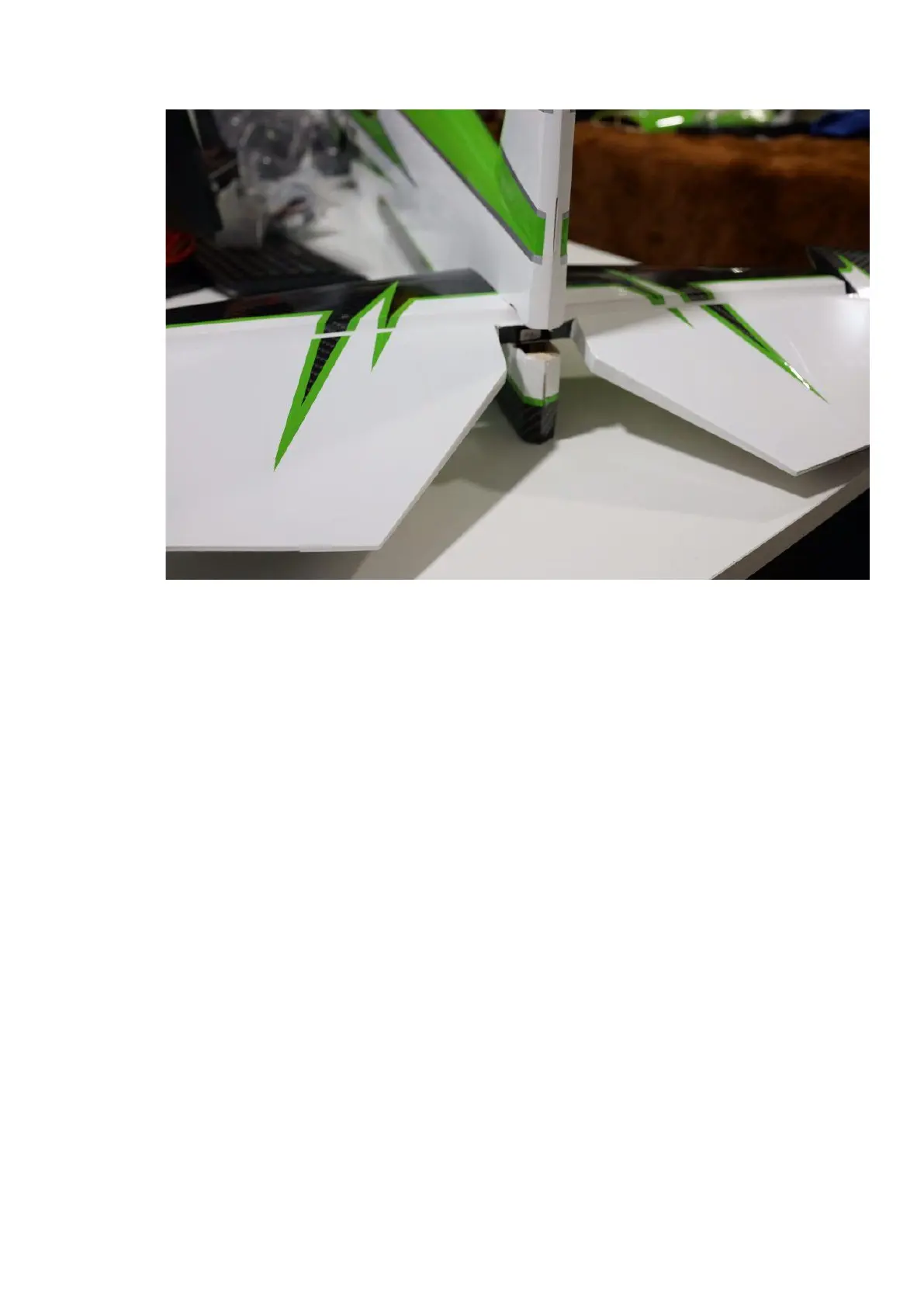

Trial fit the stabiliser into the fuselage. Make sure that it is centered (measure the
tip of the stabiliser to the tip of the wing on both sides and make sure they are the
same distance) and correctly aligned (looking at wings and stabiliser, should show
all being parallel)
Once centred and aligned, mark where it meets the fuselage. Remove the stabiliser
and carefully cut the covering on the inside of your mark, for gluing.
Prepare a mix of Epoxy and generously coat the inside of the fuselage where the
stabiliser will fit, then re-insert the stabiliser into its final location, checking again
that it is centred and aligned.
Glue back into place the section removed earlier in this process.
Excess epoxy glue can be removed with acetone
INSTALLING THE SERVO HORN ON THE ELEVATOR:
