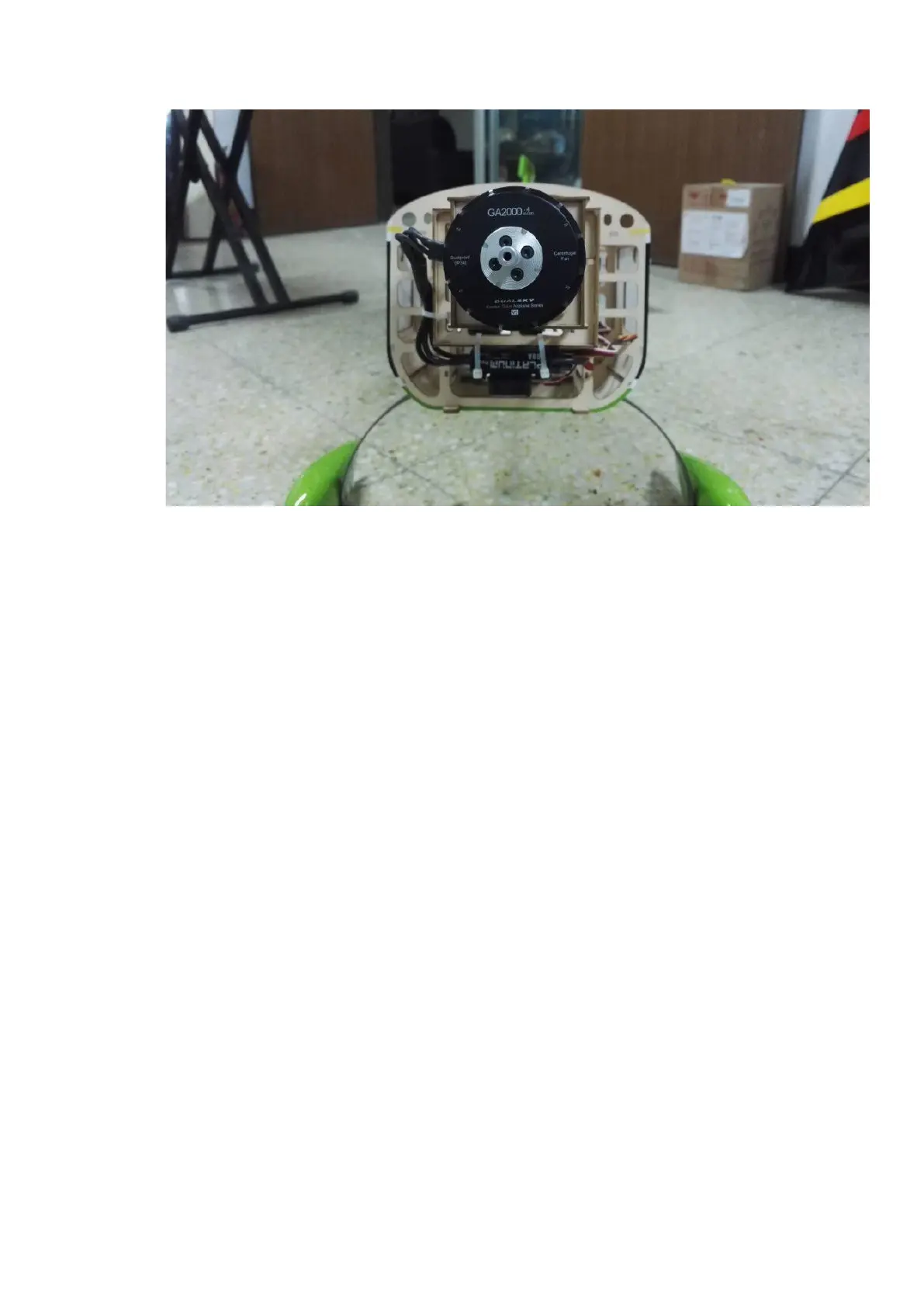

First, locate the secondary firewall box that acts as a standoff for the electric motor.
Attach it to the main firewall using the provided bolts and blind nuts.l
Follow the laser diagram on the firewall to drill the necessary holes for the
motor. These are designed for use with the Pilot-RC CC20 motor. If using a
different motor, hole position may vary.
Check if your engine requires any additional standoffs or washers in order to reach
the necessary position, before attaching permanently to the model using bolts and
blind nuts as per the images.
Secure your ESC to the firewall close to the motor, ideally in a location that will
allow airflow over the ESC to aid in its cooling.
MOTOR INSTALLATION – FOR GAS SETUP:
