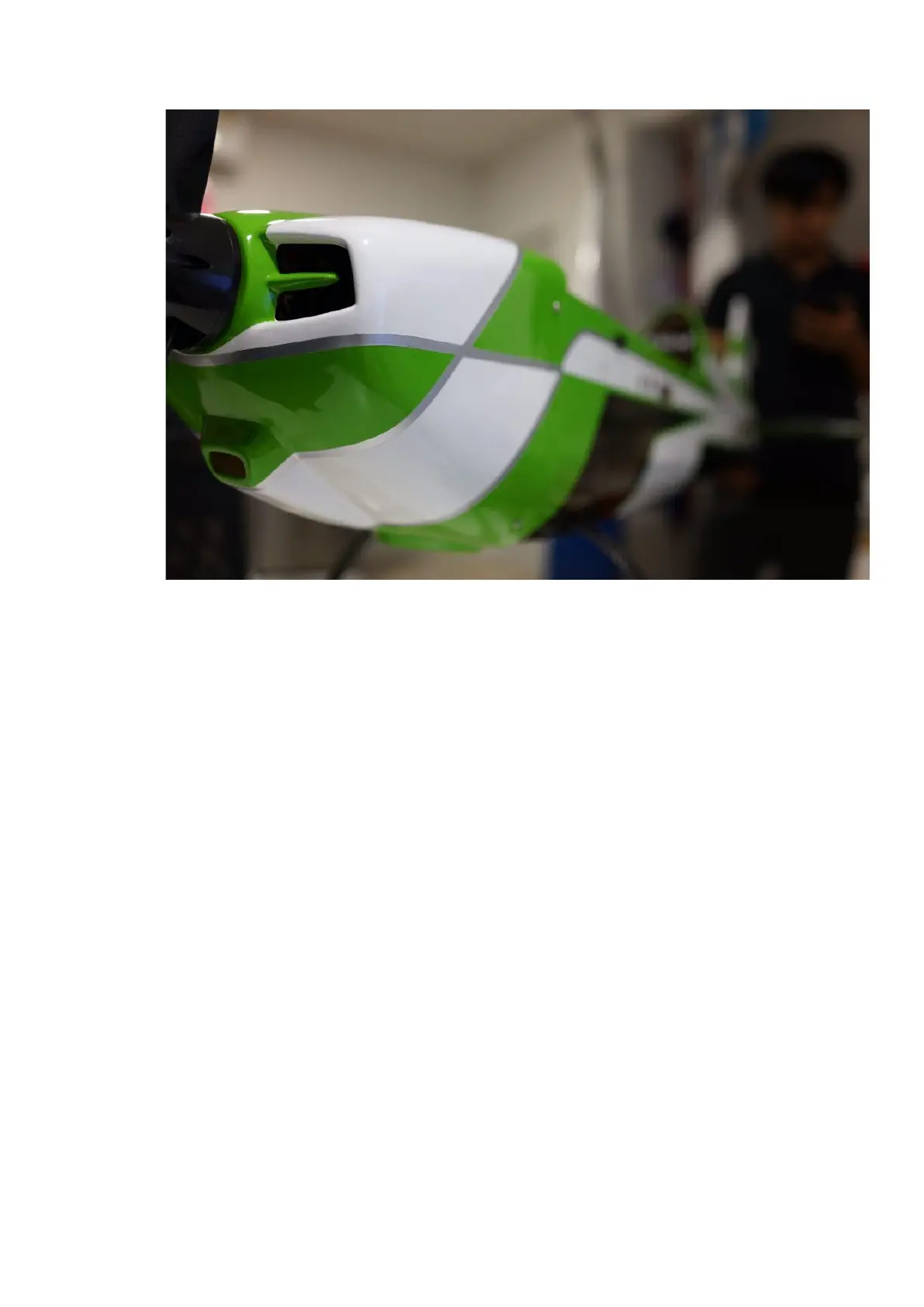

The cowling is installed using four screws that go into four “tabs” in the fuselage.
The exact location of the cowling can be adjusted slightly to allow an easy fit of
whichever your chosen motor is (longer or shorter)
In order to assure drilling in the correct location, with the cowl off, place some small
strips of masking tape in line with the four tabs where we want the cowling screws
to go. Pin point on the masking tape where the center of the tab is. Now draw a
straight line on the masking tape going back from that center mark, and
mark/measure where the hole is relative to the lines. Offer up the cowling to the
fuselage, and once in place, use additional masking tape to keep temporarily in
place.
Now, on the cowling, using the straight lines and measurements drawn previously,
mark where each of the four screws need to go.
Drill out the necessary holes, remove all the masking tapes and re-install the cowl
using the four screws.
INSTALLATION OF ANCILLARY COMPONENTS:
