Pilotcar PC2 - BATTERY MOUNTING AND WIRING; Battery Mounting Steps; Conductor Wire Connection

34
MAINTENANCE

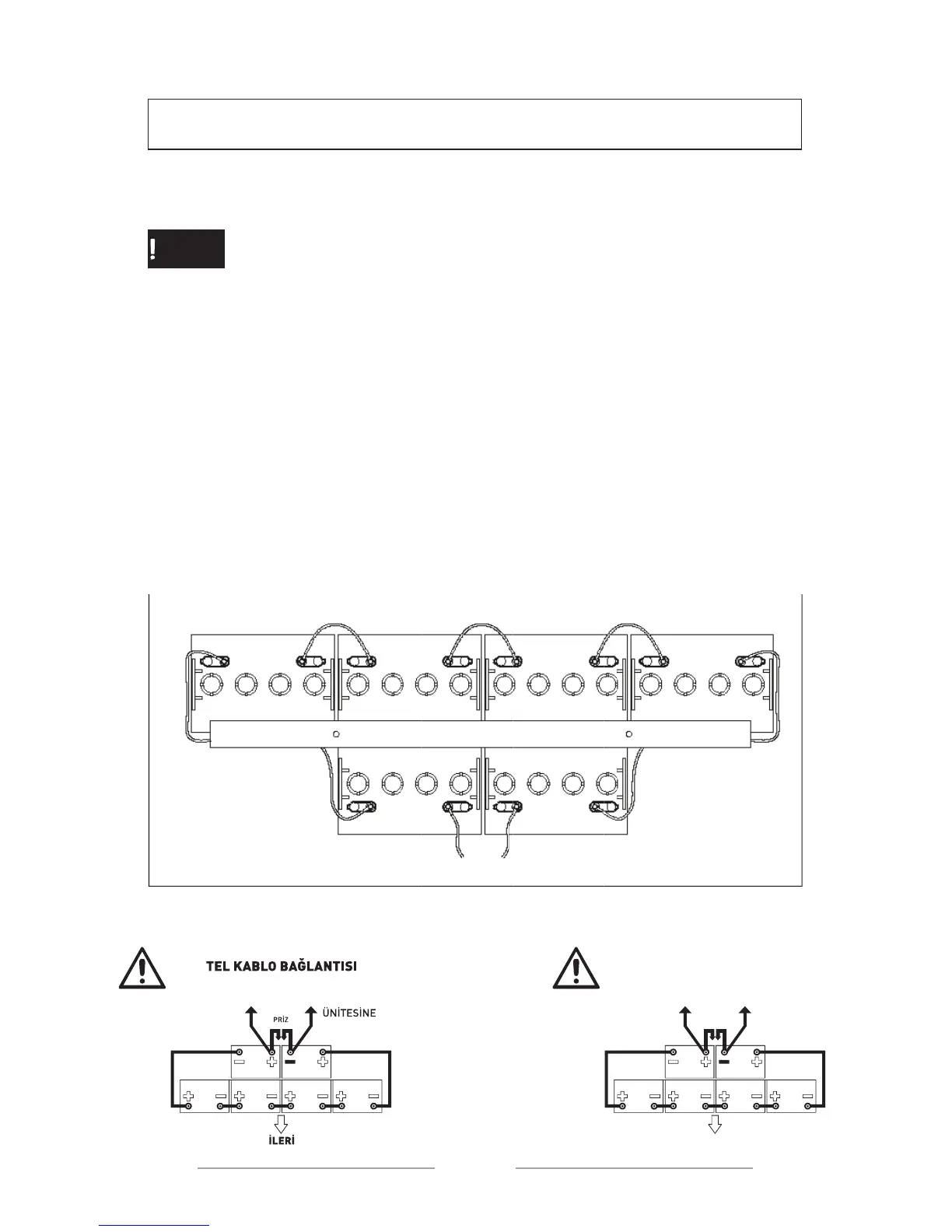

Mounting the battery
--------------------------------------
ATTENTION
While working with the batteries, do not put key or similar materials on accumulator
terminals. Sparkings may cause battery to explode.
--------------------------------------
1. Place the battery holding plates and tighten with 7-9 Nm torque as shown.
A FORWARD GEAR
B BATTERY
C BATTERY HOLDING PLATE
2. Place the conductor wires and tighten with 7-9 Nm torque as shown.
AKÜ MONTAJI VE
KONTAKTÖRE
(+)
MOTOR
KONTROL
(B-)
BATTERY INSTALLATION AND
WIRE LEAD CONNECTION
TO CONTACTOR
(+)
FORWARD
TO MOTOR
CONTROL UNIT
ASSY.
(B-)
RECEPTACLE
35
MAINTENANCE
--------------------------------------
ATTENTION
While working with the batteries, do
not put key or similar materials on
accumulator terminals. Sparkings may
cause battery to explode
--------------------------------------
-----------------------------------------
CAUTION !
Do not excessively tighten the battery
holding screws. Excessive power may
damage battery case.
--------------------------------------
Changing the Fuse
--------------------------------------
ATTENTION
Make sure to use the identified fuse.
Use of incorrect fuse may damage the
electric system and risk of fire may
arise.
--------------------------------------
CAUTION !
While chaging the fuse, in order
to prevent accidental short circuit
formation, make sure that the ignition
key is turned off.
--------------------------------------
1. Place the serial fuse holder on the
main wiring harness next to the
pulling button.
2. Remove the fuse holder cover.
3. Pull the fuse outside, control
and replace with a new one if
necessary.
A
B
A Fuse Holder
B Fuse
