1
Min.1
Max.2
Esc
+/-
0
1 2
3
4
5
6
7
8 9
Clr
Enter
Esc
Enter
Close the window
Correct the set value
Confirm the set value
SERIES
KERF
PRIMARY
POSITION
After pressing the button SERIES, a screen for viewing
and setting of the cut series will appear on the display.
Downcutting is used for cutting off the end of the newly
inserted material. Insert the material so that the cut is
under the saw blade (the material will not move during
downcutting). After pressing the downcutting button, both
vices will clamp, the cut will be performed, the arm will
ascend to the upper position and the left vice will be
released. The right vice will still hold the material prepared
for serial cutting. It is not necessary to perform the
downcutting when it is not needed.
For example, when switching from the MANUAL MODE to
the AUTOMATIC MODE, the machine does not
automatically switch to the starting position. Therefore is it
necessary, after checking the position of the material etc.,
to press the PRIMARY POSITION button - the hydraulic
unit will switch on, the arm will ascend to the upper
position, the vices will release and the left vice will move to
position 0 mm.
Back to Main Menu.
Vice
closed
Vice
open
L R
Informational status icons of
the vices
Active features of the mode
Hydraulics on
Saw blade upwards
Saw blade downwards
Saw blade on
Overview of the active series
Hydraulic unit Start/Stop Press the
hydraulic unit START/STOP icon to start
or stop the hydraulic unit.
START
Starting the automatic cycle
After pressing the START button, the
CORRECTION screen appears on the
display. If you do not wish to specify the
material length correction press the Continue
button. If the series are set, the machine
begins to execute the serial cutting. Otherwise
the button SERIES will start to flash which
signalizes that the system is waiting for the
setting of the series.
CORRECTION
Continue
1.12
(mm)
If you wish to perform a correction of
the material length, press the button
showing correction. A screen with
keys for entering the correction will
appear on the display (see the
following table).
The entire working cycle consists of:
• clamping of the movable vice setting of the material for
a particular cutting length clamping of the fixed vice starting of the
saw blade
• switching on of the saw blade arm descent into the cut -
performing the cut ascending of the saw blade arm to the upper
position stopping of the saw blade releasing of the fixed vice.

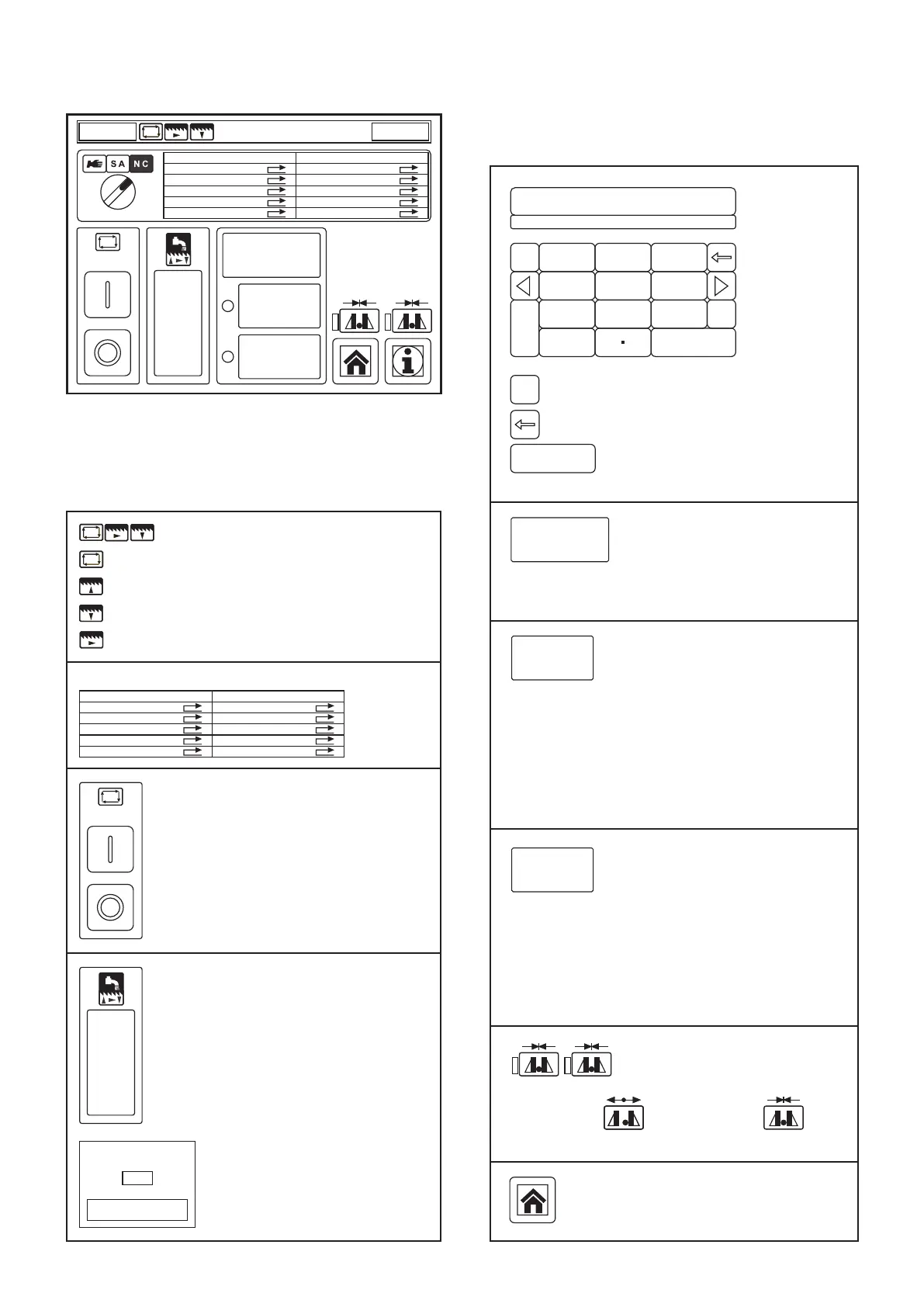

4.1.2. Automatic mode
AUTOMATIC MODE
HOME button
NC MODE
0 9 : 2 0 : 0 3 0 8 / 1 0 / 2 0 1 6
SERIES
SE RIES LE NGTH PIECES FE ED
1 35 7 10
2 15 9 15
5 35 8 75
7 58 6 33
8 25 5 45
SE RIES LE NGTH PIECES FE ED
9 33 9 87
12 982 65
14 244 27
15
25 0 13
16 365 65
KERF
PRIMARY
POSITION
START
L R
SE RIES LE NGTH PIECES FE ED
1 35 7 10
2 15 9 15
5 35 8 75
7 58 6 33
8 25 5 45
SE RIES LE NGTH PIECES FE ED
9 33 9 87
12 982 65
14 244 27
15
25 0 13
16 365 65
To Next Page
