pingbingding WA-2608 - Mount the Antenna

4

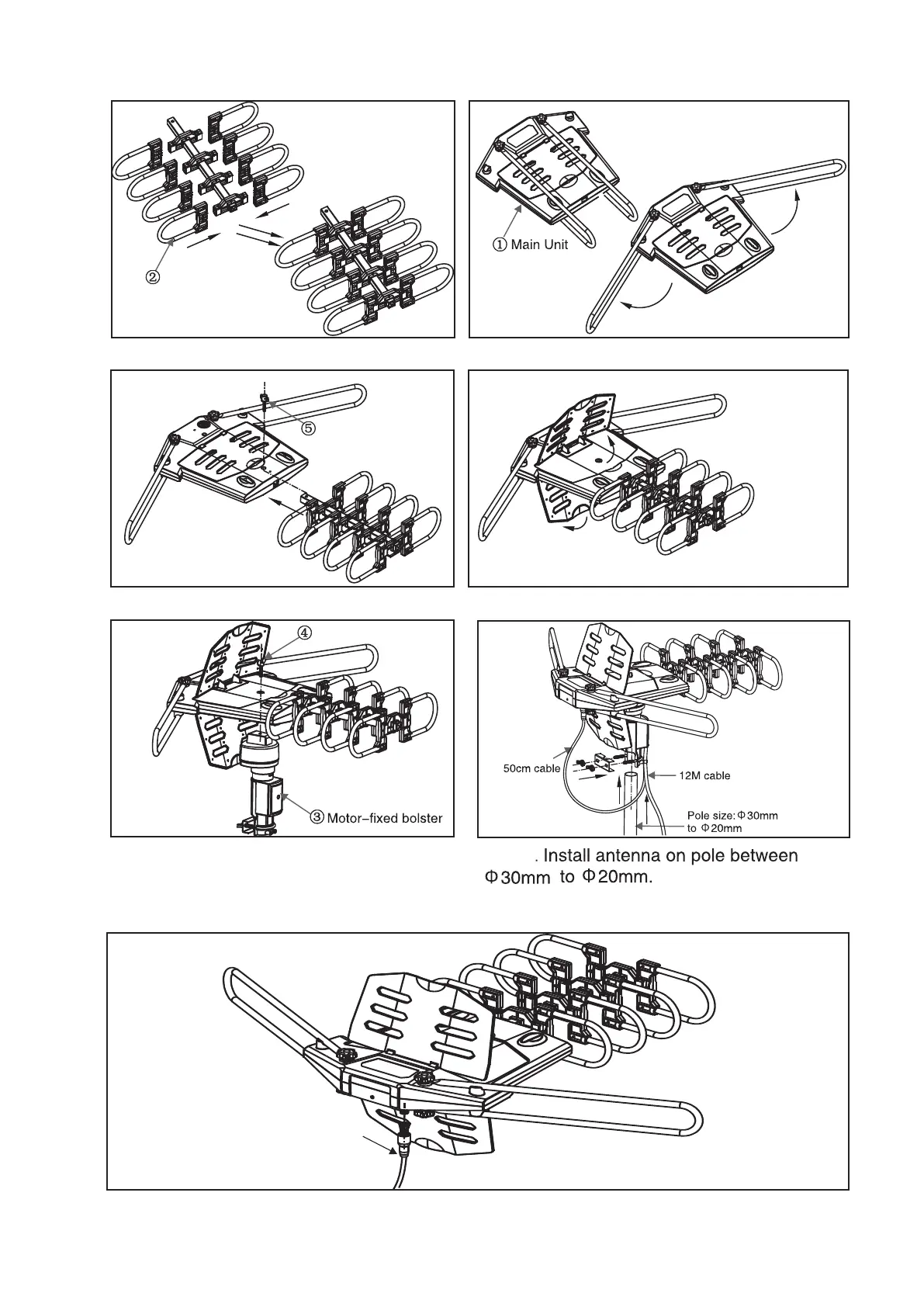

Step 1. Assemble 8pcs of directors. Step Spread out the antenna VHF dipoles.2.
Mount the Antenna
A B
E
F
G
Connect the 12m cable with power supply
ANT kit.
Step 7
Step 3. Fix the directors by M4x18mm screw Step 4 Spread out the antenna reflectors.
C
D
Step 5.
screw
Fix the motor bolster by M5x25mm
Step 6 Thread the 50cm coaxial cable end with the
weather boot into antenna dipole kit.
.
Wing screw
Director
Wing screw
Very important!!
