4. OPERATION

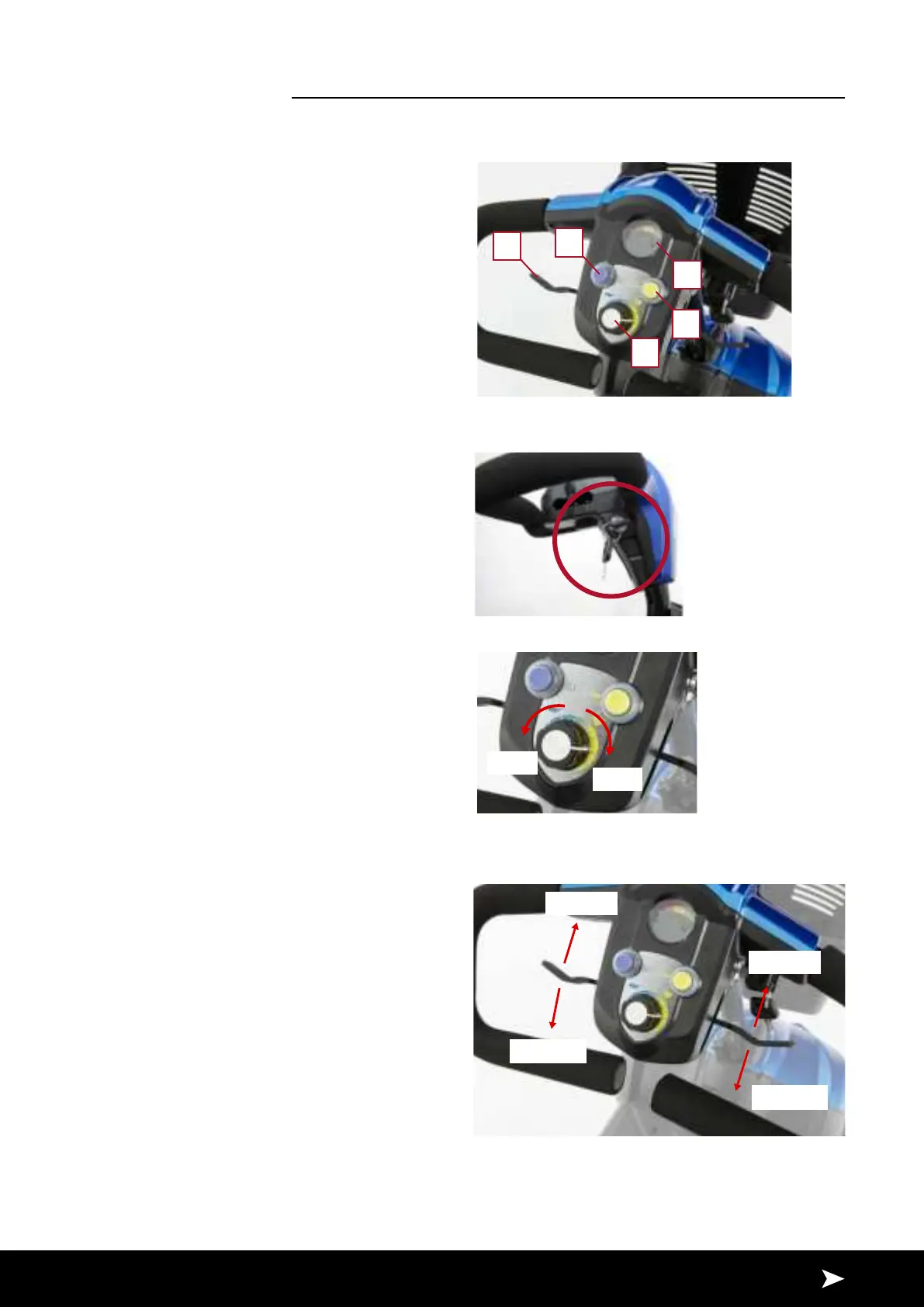

4.1 CONTROL PANEL
1. Battery Level Indicator
2. Speed Dial
3. Horn
4. Wigwag Paddle
5. Headlight button
4.2 HOW TO OPERATE YOUR
SCOOTER
Turn the key to power ON or OFF
(ON) : Power is turned on
(OFF) : Power is turned o
Speed Dial
Press the slowest or fastest setting
to determine the maximum speed
of the scooter.
Forward, Reverse, and Braking
» Pull the wig wag lever towards
you on the left or right hand
side to go forward
» Push the wigwag lever away
from you on the left or right
hand side to reverse.
» The horn will beep when the
vehicle is in reverse.
» Release the wig wag lever
freely while either going
forward or reverse, and the
electromagnetic brake in the
motor will be activated, and
the vehicle will stop.
Forward
Forward
Reverse
Reverse
Slow
Fast
5
2
3
1
4
