Pioneer Eclipse PE225FP - Gearbox Assembly

25

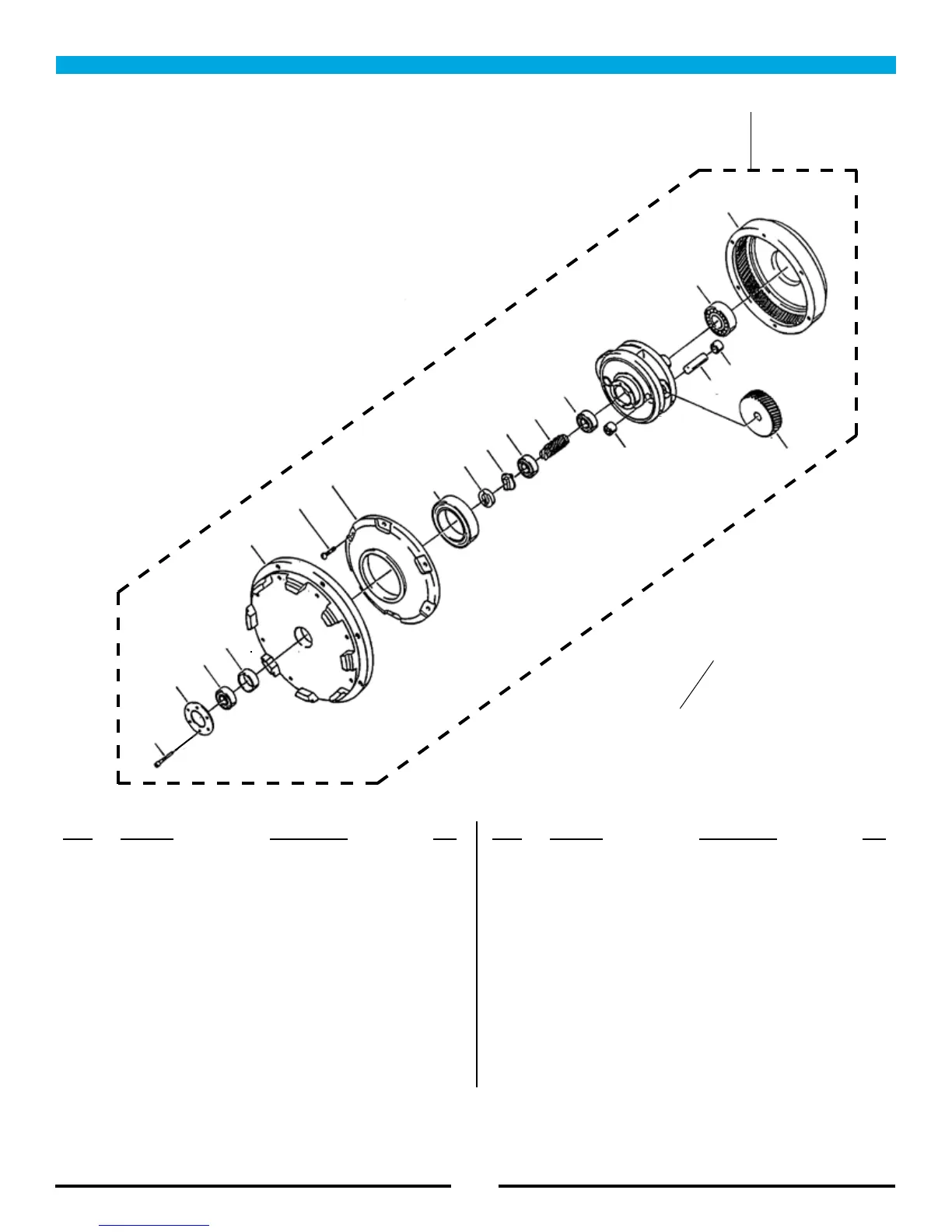

Gearbox Assembly
Item Ref. No. Description Qty
1 53646A GEARBOX, ASM. 1
2 53647A GREASE, TUBE, 14OZ 1
3 54408A GEAR, PLANET 3
4 54856A GEAR, RING 1
5 54858A COVER, GEARBOX 1
6 56922A RETAINER, BEARING 1
7 58312A SHAFT, PLANET 3
8 58313A GEAR, PINION 1
9 58314A RETAINER, SHAFT 1
Item Ref. No. Description Qty
10 58520A SPACER, SLEEVE 1
11 69195A COUPLING, SHAFT 1
12 80141A SCREW, SH, #10 X 1” 6
13 902606 BEARING, BALL, 6002 3
14 902654 BEARING, BALL, 6204 1
15 902736 BEARING, BALL, 6010 1
16 902737 BEARING, NEEDLE 6
17 84808A SCREW, #10 X 3/4” 6
18 53848A PLATE, MOUNTING 1
6
13
10
18
17
5
15
9
11
13
8
13
16
3
7
16
14
4
12
1
Note: Use 8 ounces
of grease in Gearbox
53647A
2
