Pioneer Eclipse PE225FP - 2-Speed Motor Assembly

26

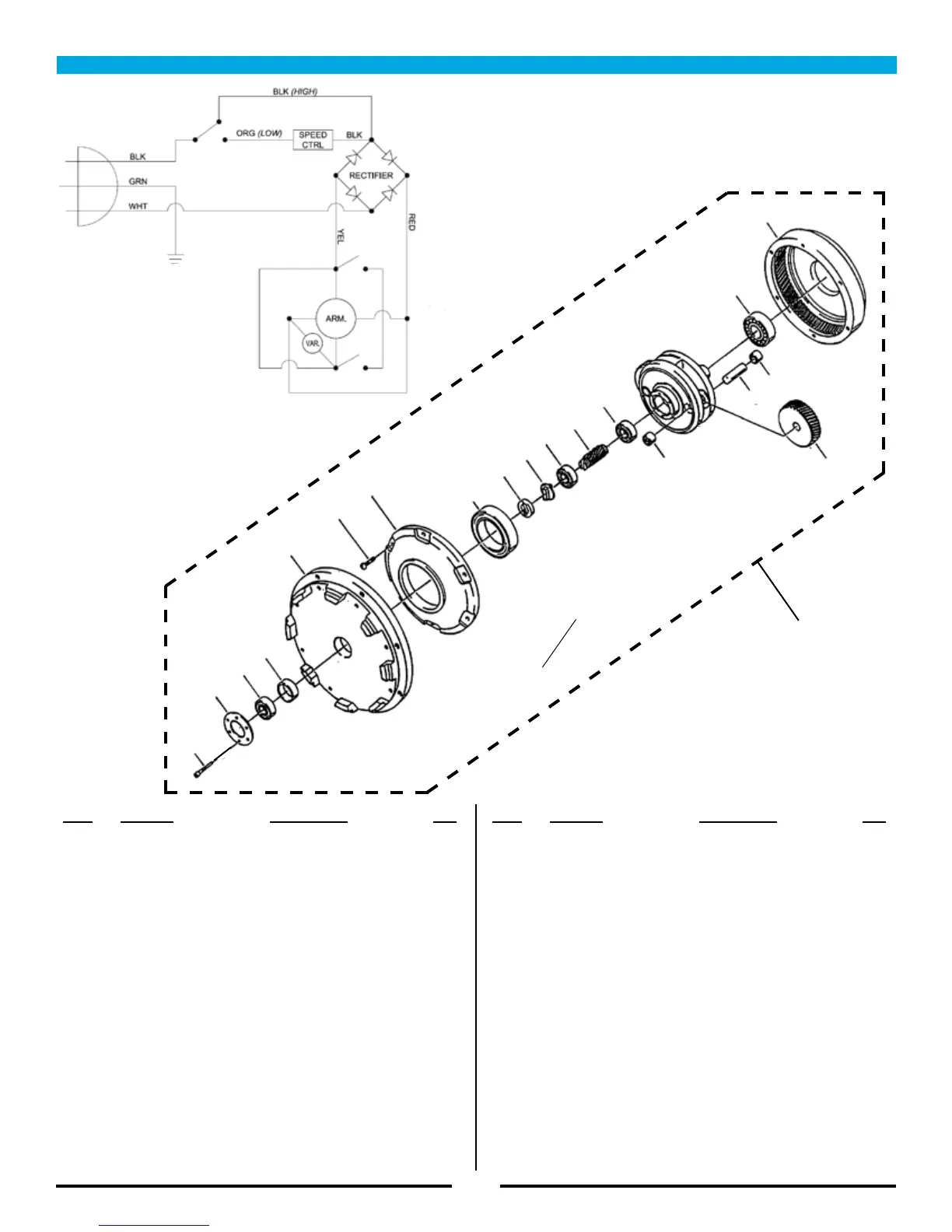

2-Speed Motor Assembly
Item Ref. No. Description Qty
1 53647A GEARBOX 1
2 503802 GREASE, 14oz TUBE
(NOT SHOWN) 1
3 54408A GEAR, PLANET 3
4 54856A GEAR, RING 1
5 54858A COVER, GEARBOX 1
6 56922A RETAINER, BEARING 1
7 58312A SHAFT, PLANET 1
8 58313A GEAR, PINION 1
9 58314A RETAINER, SHAFT 1
10 58520A SPACER, SLEEVE 1
11 69195A COUPLING, SHAFT 1
12 80141A SCREW, #10 X 1” 6
13 902606 BEARING, BALL 6002 3
Item Ref. No. Description Qty
14 902654 BEARING, BALL 6204 1
15 902736 BEARING, BALL 6010 1
16 902737 BEARING, NEEDLE 6
17 84808A SCREW, #10 X 3/4” 6
18 MP487800
FLANGE, MOUNTING, GEARBOX 1
REPLACEMENT MOTOR PARTS
(NOT SHOWN)
19 MP487900 BRUSH, CARBON, ASM. 4
20 MP488000 RECTIFIER, MOTOR 1
21 MP488100 CONTROL, SPEED, ASM. 1
22 MP488200 COVER, DRIP 1
23 MP488300 CORDSET, 4-WIRE 1
24 MP488400 BEARING, TOP 1
25 MP488500 BEARING, BOTTOM 1
12
6
13
10
18
17
5
15
9
11
13
8
13
16 3
7
16
14
4
1
Note: Use 8 ounces
of grease in Gearbox
53647A
2
ELECTRICAL SCHEMATIC
(120V)
2-SPEED
