Pioneer AVH-2390DVD User Manual

AVH-P2300DVD/XNUC
81
5678
56
7
8
C
D
F
A
B
E
1
1
2
2

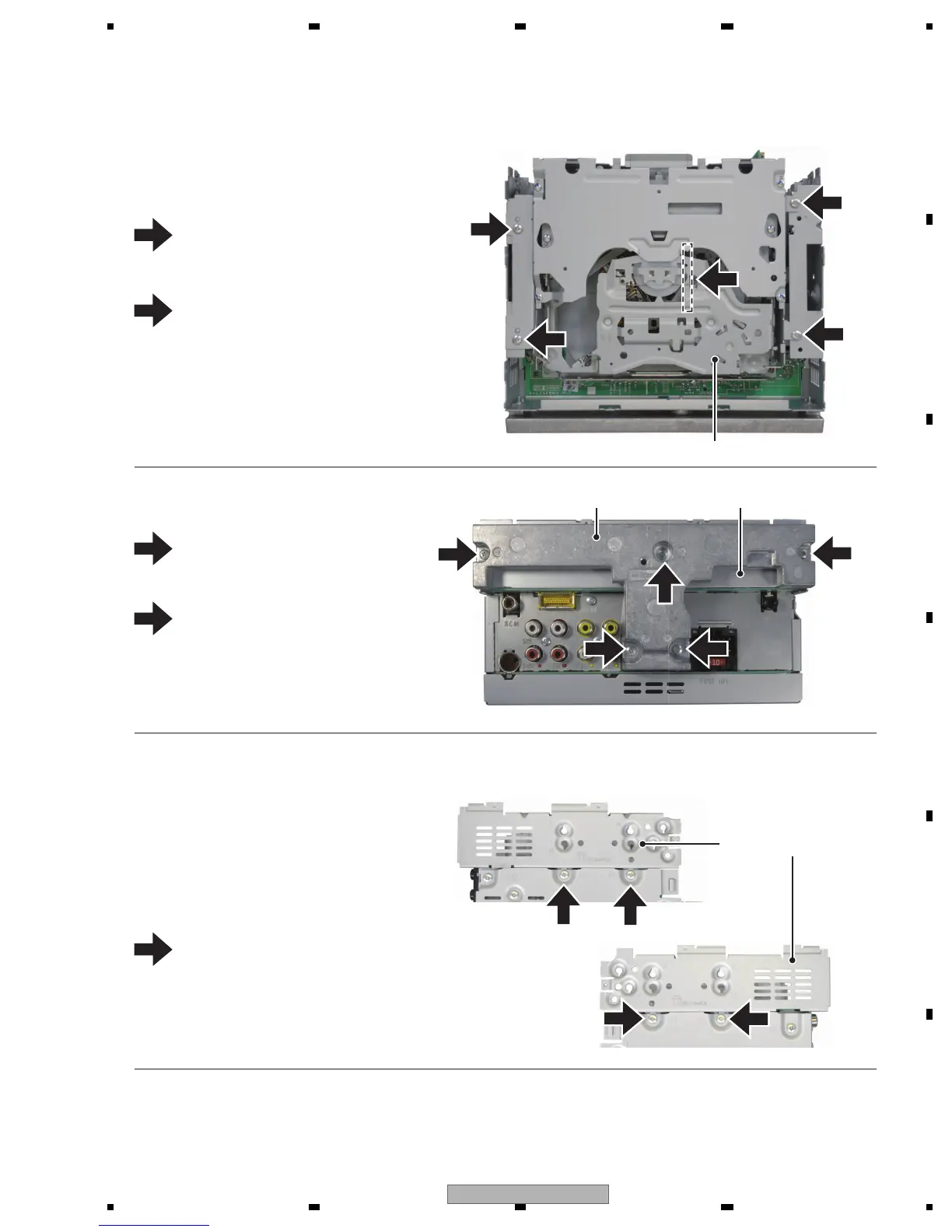

- Removing the DVD Mechanism Module (Fig.6)
Remove the four screws.
Disconnect the FFC
and then remove the DVD Mechanism Module.
Fig.6
-
Removing the Heat Sink and Holder (Fig.7)
Fig.7
Remove the two screws.
Remove the three screws
and then remove the Heat Sink
and Holder.
-
Removing the the Upper Chassis (Fig.8, 9)
Fig.8
1
Remove the four screws
and then remove the Upper Chassis.(Fig.9, 10)
Fig.9
Holder
Upper Chassis
Heat Sink
DVD Mechanism Module
1
1
1
1
2
1 1
2
2
2
1
1
1
1
