Pioneer DV-343 Service Manual

DV-340, DV-343
8

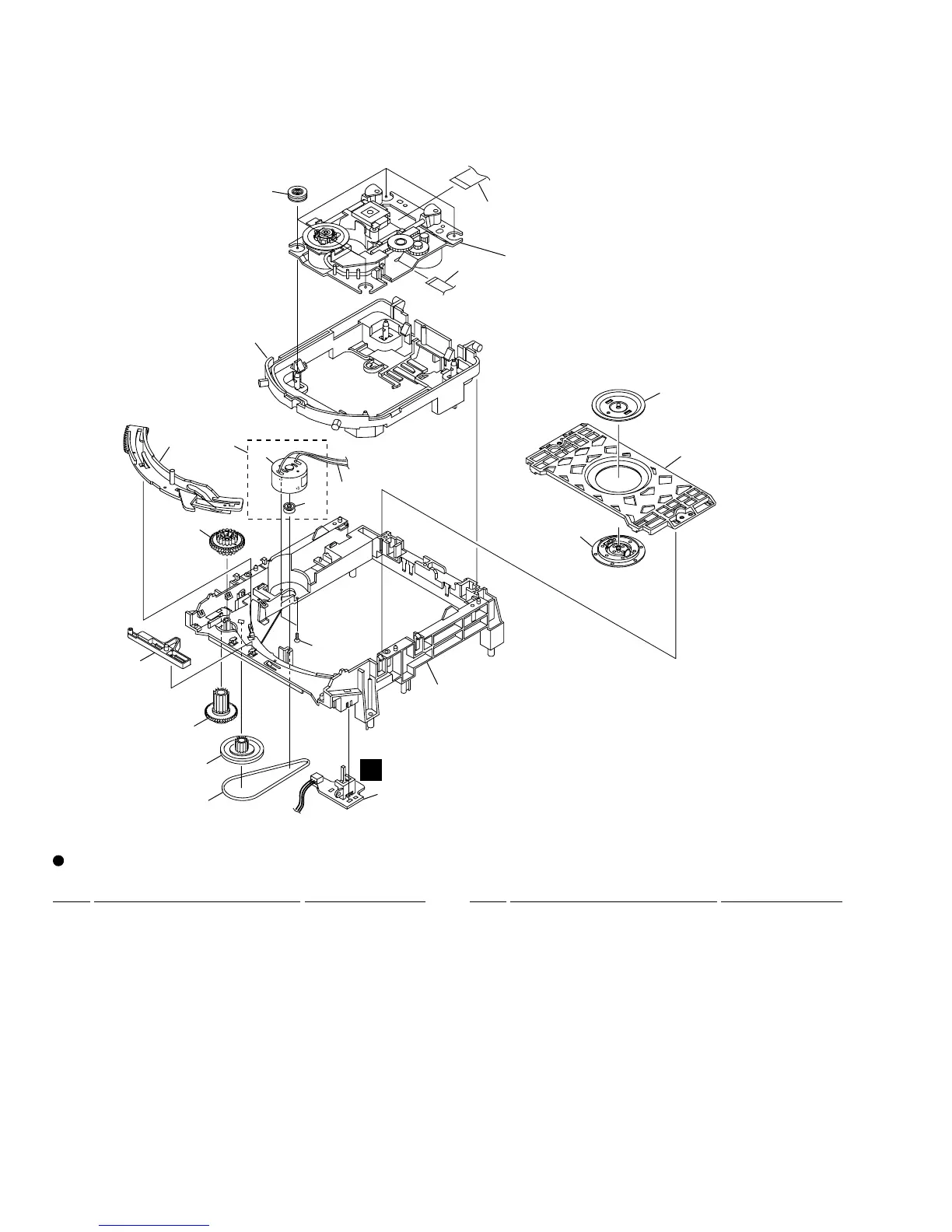

2.3 LOADING MECHANISM ASSY
22
20
21
18
To DVDM Assy
CN4
To DVDM Assy
CN3
To DVDM Assy
CN2
15
12
11
13
14
4
5
9
2
10
8
7
4
3
6
1
16
17
Refer to
"2.4 TRAVERSE MECHANISM ASSY-S".
A
1 Traverse Mechanism Assy-S VXX2653
NSP 2 LOAB Assy VWG2171
3 Drive Cam VNL1862
4 Drive Gear VNL1861
5 Lock Plate VNL1820
6 Loading Base VNL1863
7 Belt VEB1320
8 Gear Pulley VNL1866
9 Screw JGZ17P028FMC
10 Loading Gear VNL1860
11 Loading Motor Assy VXX2505
12 DC Motor / 0.3W (LOADING) PXM1027
13 Motor Pulley PNW1634
14 Connector Assy VKP2253
15 Flexible Cable (08P) VDA1818 (or VDA1852)
16 Float Base VNL1865
17 Floating Rubber VEB1327 (or VEB1286)
18 Flexible Cable (24P) VDA1820
19 • • • • •
20 Clamper Plate VNE2162
21 Clamper VNL1738
22 Bridge VNL1859
LOADING MECHANISM ASSY PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
