7. DISASSEMBLY
DVD Mechanism Module
1
1
2
3
Fig.1
Fig.2

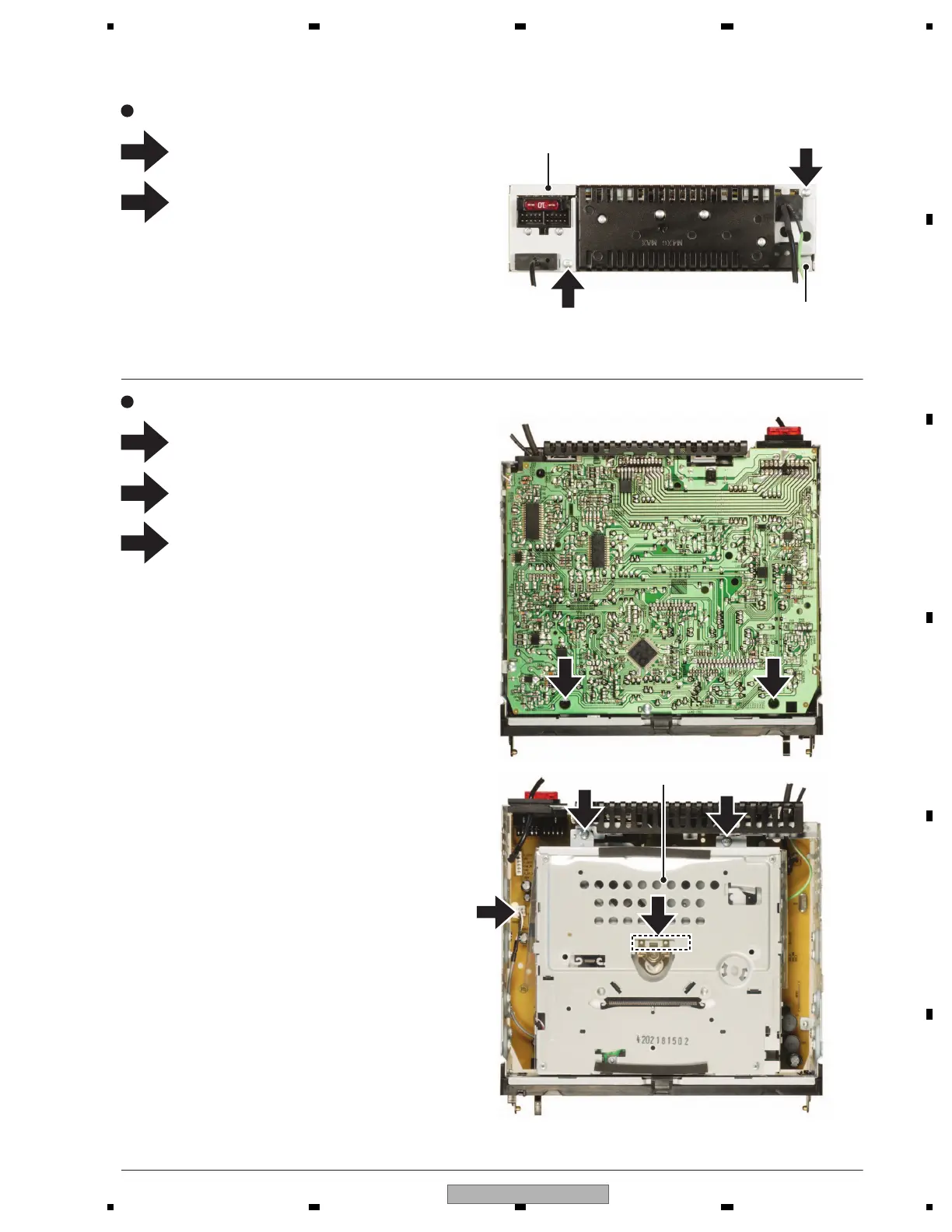

Removing the Top Cover and the Bottom Cover (Fig.1)
Removing the DVD Mechanism Module (Fig.2)
Remove the screw and then remove the
Bottom Cover.
Remove the screw and then remove the
Top Cover.
Bottom Cover
Top Cover
2
2
2
1 1
1
2
Remove the two screws.
Remove the two screws.
Disconnect the two connectors and then
remove the DVD Mechanism Module.
3
3
