Pioneer DVH-860AV/XEUW5 User Manual

DVH-860AV/XEUW5
18
1234
1234
C
D
F
A
B
E

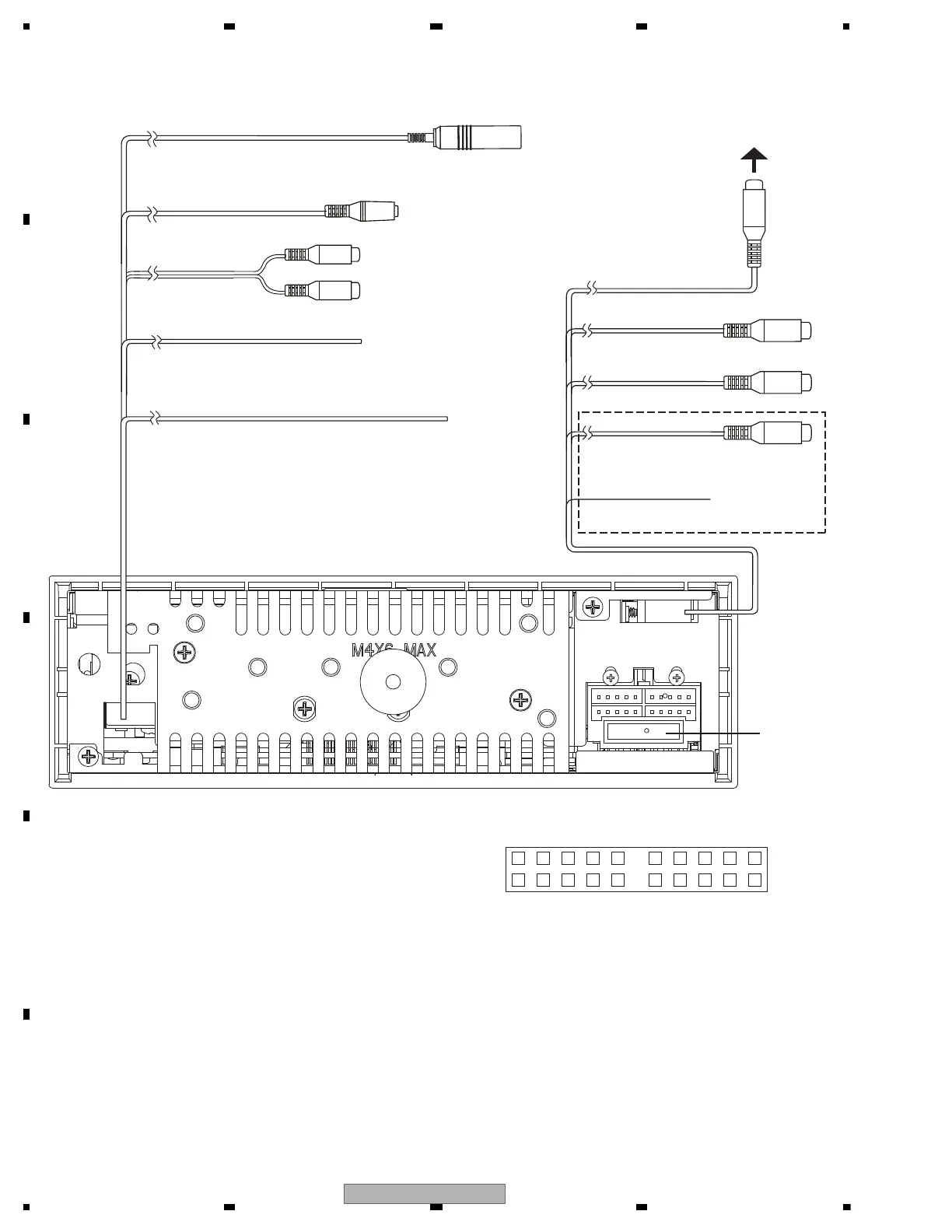

5.3 CONNECTOR FUNCTION DESCRIPTION
BT Antenna
Do not connect
the wire to metal
body
1: FR-
2: FL+
3: FR+
4: FL-
5: RR+
6: ILLU_IN
7: RR-
8: ANT
9: T_MUTE
10: +B
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
17
18
19
20
11: RL+
12: GND
13: RL-
14: LO-FL
15: ACCIN
16: LO-FR
17: GND
18: GND
19: LO/SUB-RR
20: LO/SUB-RL
Fuse 10A
(Light Green/
White)
Radio Antenna
Parking SW
(Active low level input)
(Pink)
SWC (Steering Wheel Control)
Reverse
AUDIO IN (AV)
L(White)
R(Red)
VIDEO OUT
(Yellow)
To Monitor with
NTSC system
(Yellow)
CAMERA IN
(Yellow)
VIDEO IN (AV)
(Black)
MIC
Only RD, RI, BR

Pioneer DVH-860AV/XEUW5 Specifications

General

Brand	Pioneer
Model	DVH-860AV/XEUW5
Category	Stereo Receiver
Language	English
