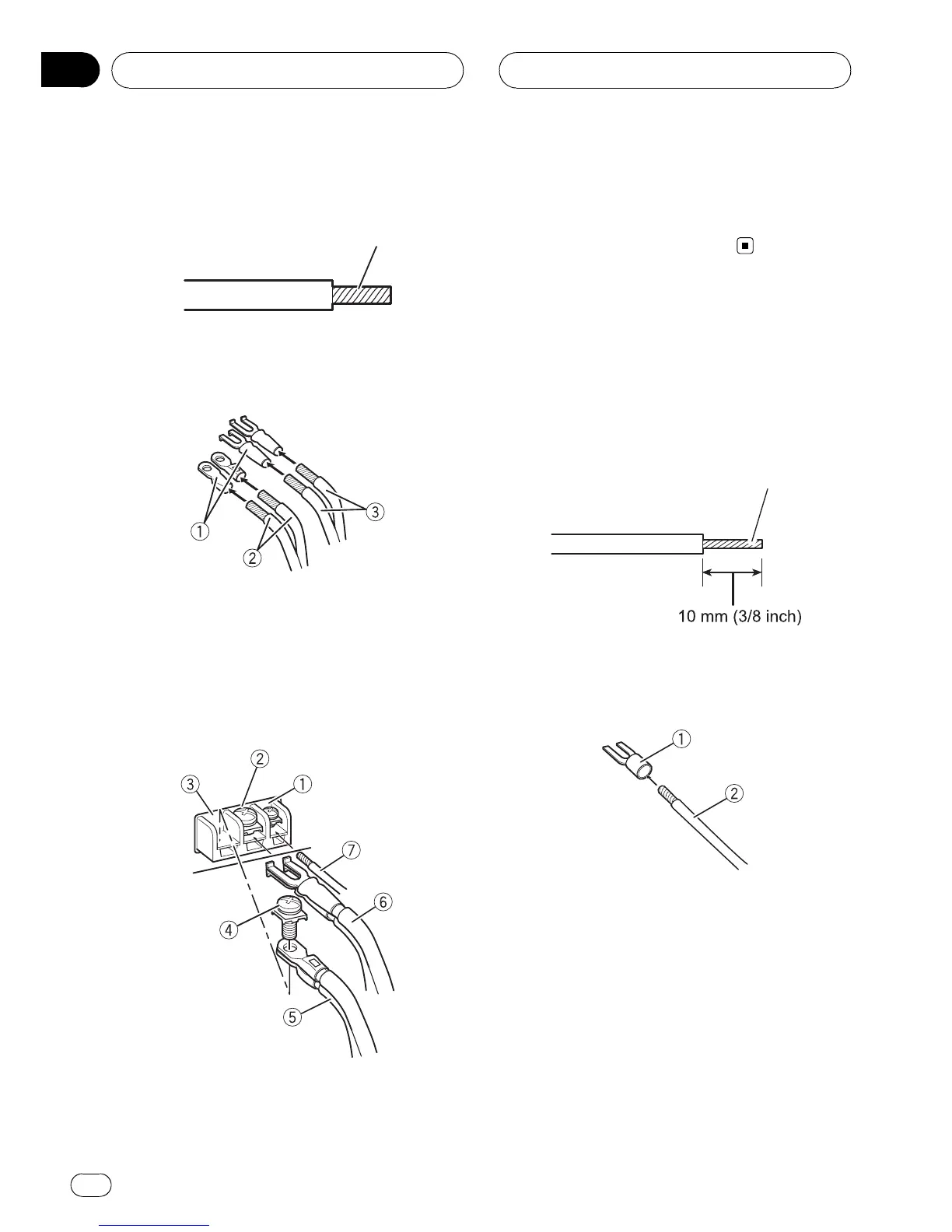

2 Twist the battery wire, ground wire
and system remote control wire.
Twist
3 Attach lugs to wire ends. Lugs not sup-
plied.
Use pliers, etc., to crimp lugs to wires.
1 Lug
2 Battery wire
3 Ground wire
4 Connect the wires to the terminal.
Fix the wires securely with the terminal
screws.
1 System remote control terminal
2 GND terminal
3 Power terminal
4 Terminal screws
5 Battery wire
6 Ground wire
7 System remote control wire
Connecting the speaker
output terminals
1 Expose the end of the speaker wires
using nippers or a cutter by about 10 mm
(3/8 inch) and twist.
Twist
2 Attach lugs to speaker wire ends. Lugs
not supplied.
Use pliers, etc., to crimp lugs to wires.
1 Lug
2 Speaker wire
3 Connect the speaker wires to the
speaker output terminals.
Fix the speaker wires securely with the term-
inal screws.
Connecting the units
En
10
Section
03

Pioneer GM-5400T Specifications

General

Impedance	4 Ω
Frequency range	20 - 20000 Hz
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.03 %
Channels quantity	2 channels
Dimensions (WxDxH)	265 x 346 x 62 mm
Connectivity technology	Wired
Line-in	Yes
Product color	Black

Weight and Dimensions

Weight	3800 g
