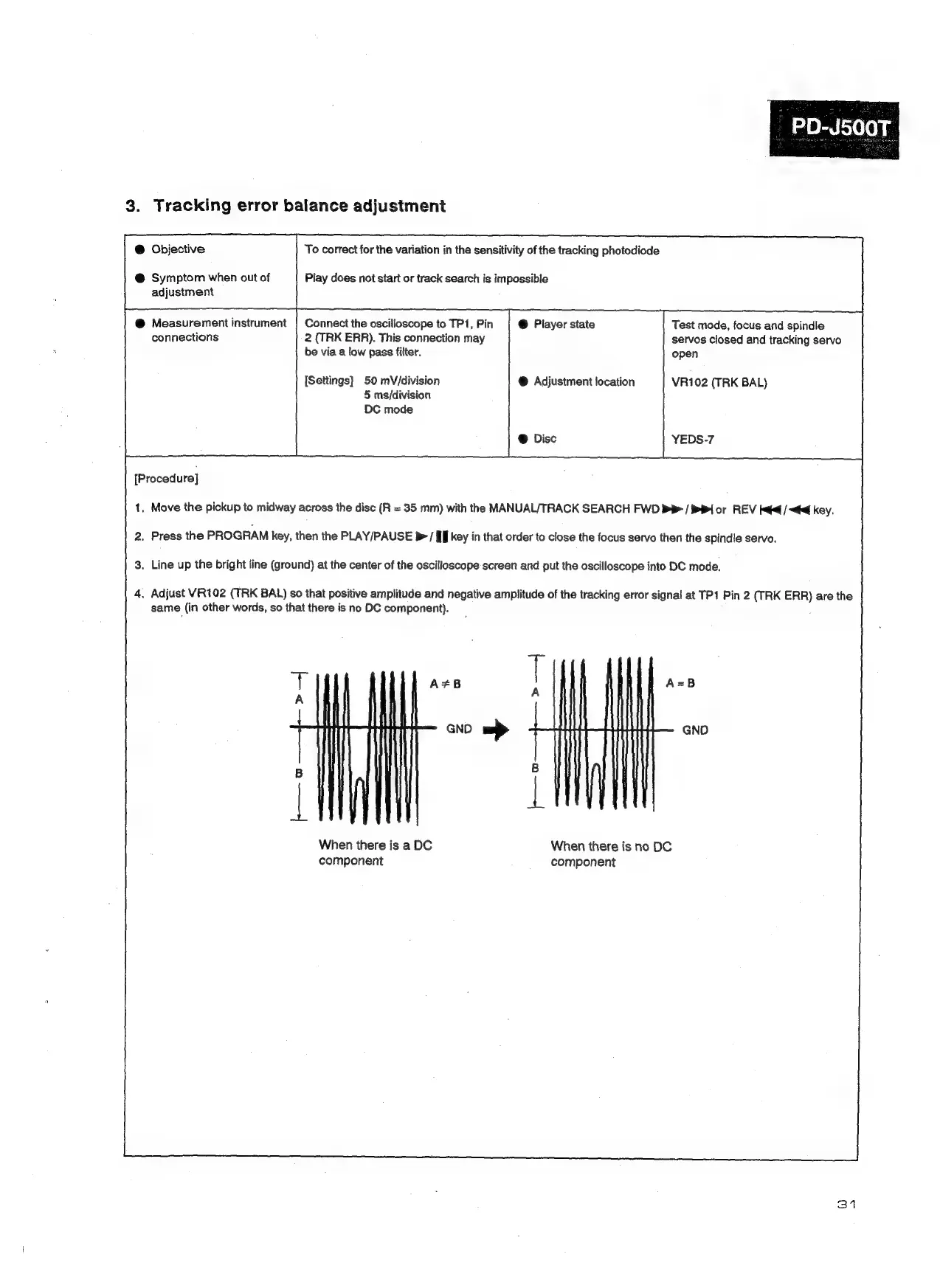

3. Tracking error balance adjustment
@ Objective To correct for the variation in the sensitivity of the tracking photodiode
@ Symptom when out of Play does not start or track search is impossible
adjustment
@ Measurement instrument | Connect the oscilloscope to TP1, Pin @ Player state Test made, focus and spindle
connections 2 (TRK ERR). This connection may servos closed and tracking servo
be via a low pass filter. open
[Settings] 50 mV/division @ Adjustment location VR102 (TRK BAL)
5 ms/division
DC mode
[Procedure]
. Move the pickup to midway across the disc (R = 35 mm) with the MANUAL/TRACK SEARCH FWD B}> / ei or REV keldd / <had Key.
. Press the PROGRAM key, then the PLAY/PAUSE B> / if key in that order to close the focus servo then the spindle servo.
. Line up the bright line (ground) at the center of the oscilloscope screen and put the oscilloscope into DC mode.
. Adjust VR102 (TRK BAL) so that positive amplitude and negative amplitude of the tracking error signal at TP1 Pin 2 (TRK ERR) are the
same (in other words, so that there is no DC component).
When there is a DC When there is no DC
component component
31
