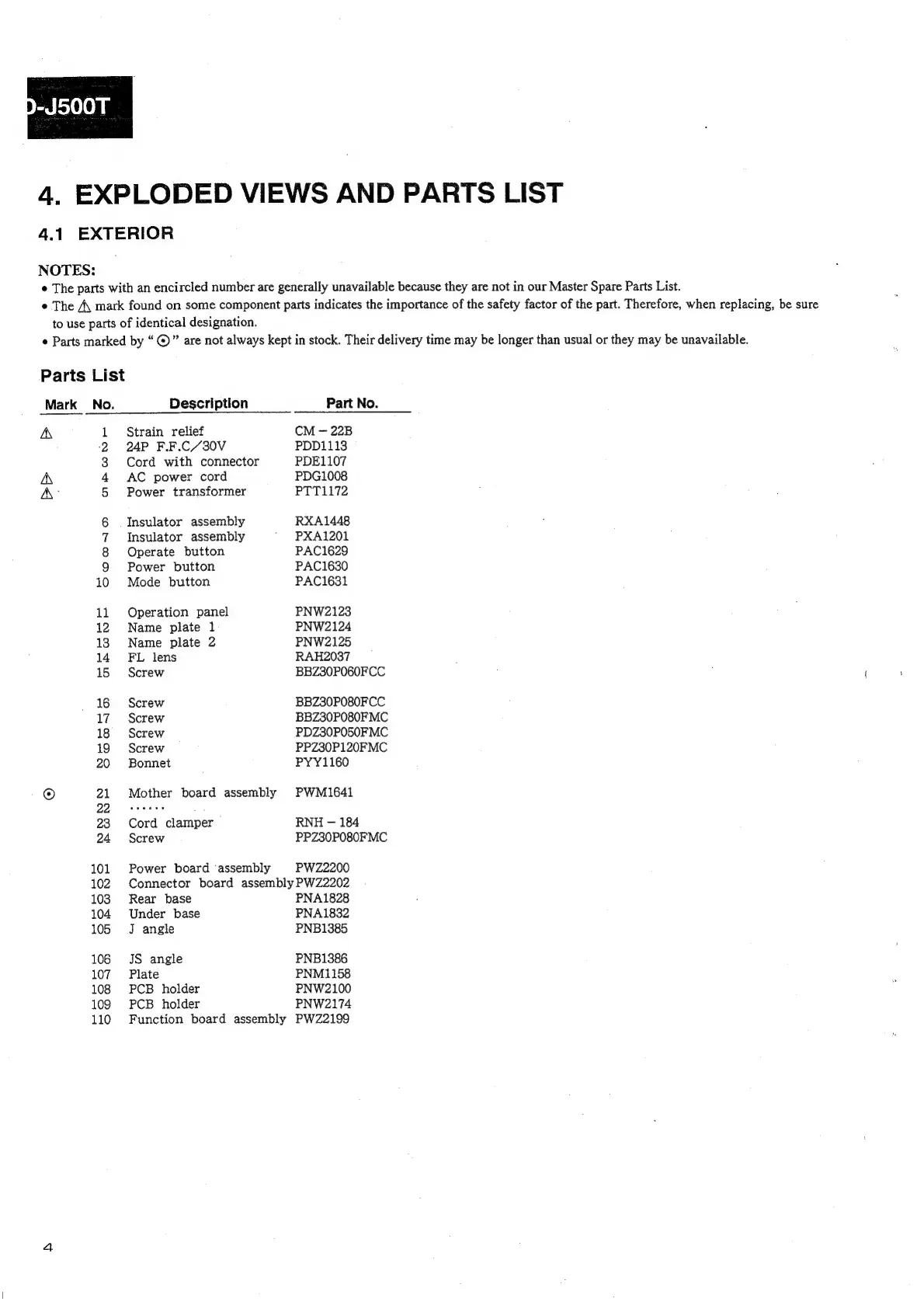

4.
EXPLODED
VIEWS
AND
PARTS
LIST
4.1
EXTERIOR
NOTES:
¢
The
parts
with
an
encircled
number
are
generally
unavailable
because
they
are
not
in
our
Master
Spare
Parts
List.
¢
The
A\
mark
found
on
some
component
parts
indicates
the
importance
of
the
safety
factor
of
the
part.
Therefore,
when
replacing,
be
sure
to
use
parts
of
identical
designation.
Parts
marked
by
“©”
are
not
always
kept
in
stock.
Their
delivery
time
may
be
longer
than
usual
or
they
may
be
unavailable.
Parts
List
Mark
No.
Description
Part
No.
A
1
Strain
relief
CM
22B
‘2
24P
FF.C/30V
PDD1113
3
Cord
with
connector
PDE1107
A
4
AC
power
cord
PDG1008
A:
5
Power
transformer
PTT1172
6
Insulator
assembly
RXA1448
7
Insulator
assembly
PXA1201
8
Operate
button
PAC1629
9
Power
button
PAC1630
10
Mode
button
PAC1631
11
Operation
panel
PNW2123
12
Name
plate
1
PNW2124
18
Name
plate
2
PNW2125
14
FL
lens
RAH2037
15
Screw
BBZ30PO060FCC
16
Screw
BBZ30P080FCC
17
Screw
BBZ30P080F
MC
18
Screw
PDZ30P050FMC
19
Screw
PPZ30P120FMC
20
Bonnet
PYY1160
©
21
Mother
board
assembly
PWM1641
22
sv
enee
23
Cord
clamper
RNH
184
24
Screw
PPZ30P080F
MC
101
Power
board
‘assembly
PWZ2200
102
Connector
board
assembly
PWZ2202
103
Rear
base
PNA1828
104.
Under
base
PNA1832
105
J
angle
PNB1385
106
JS
angle
PNB1386
107
‘Plate
PNM1158
108
PCB
holder
PNW2100
109
PCB
holder
PNW2174
110
Function
board
assembly
PWZ2199
