3
English
English
INSTALLATION ON THE PLASMA
DISPLAY
(WHEN INSTALLING THE SPEAKERS ON THE RIGHT AND
LEFT SIDES OF THE DISPLAY)

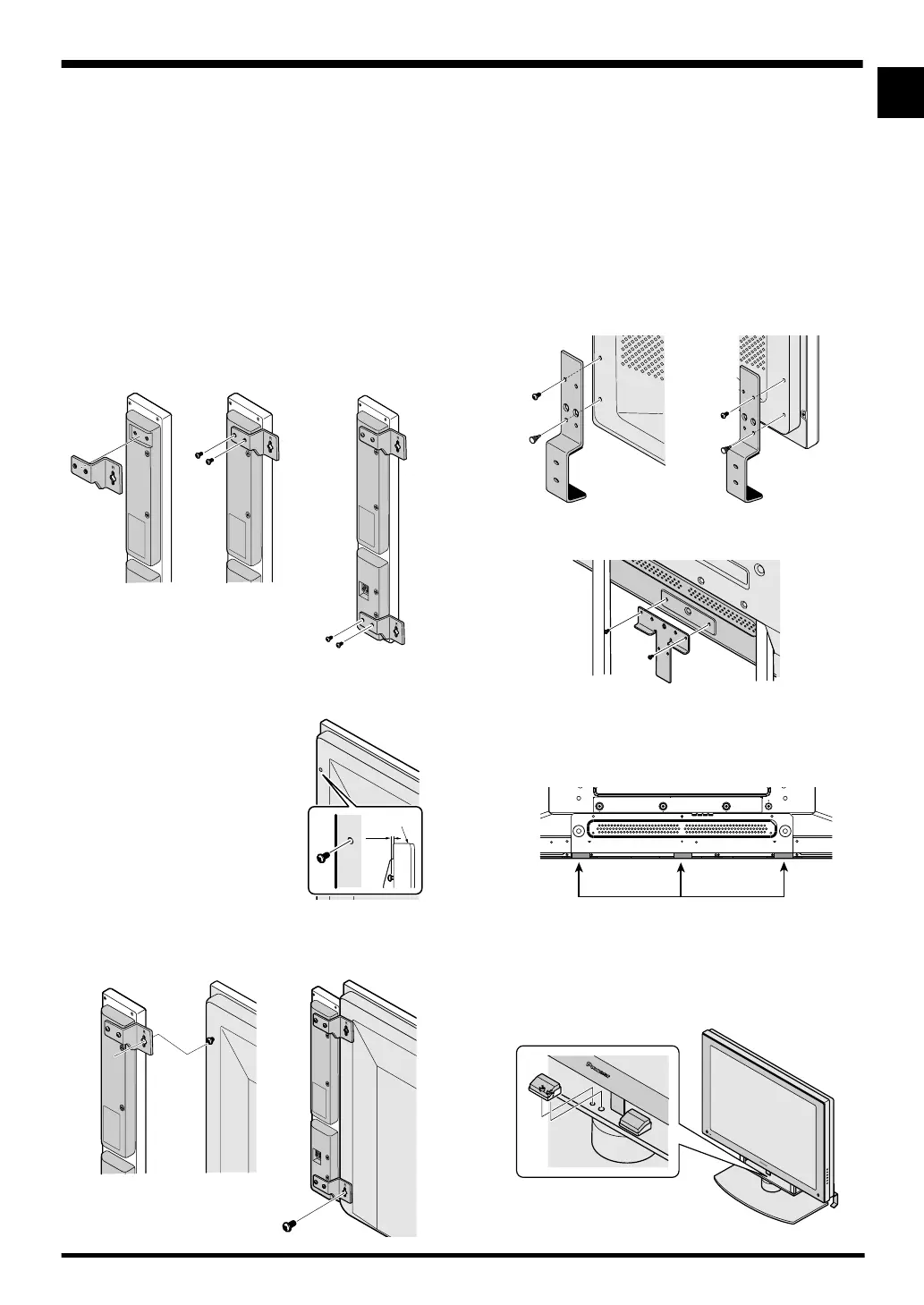

1 Attach the mounting fittings to the
speakers.
The illustration below shows the right speaker. Attach the left
side mounting fitting in the same way.
1 Attach a bracket (R) to the top of the right speaker, as
shown.
2 Attach another bracket (R) to the bottom of the speaker
in the same way.
2 Attach the speakers to the display.
The illustration below shows how to attach of the right speaker.
Attach the left speaker in the same way.
1 Fix the upper screw temporarily in
advance to hang the speaker on
the display (In this case, leave a
space of about 5 mm between the
head of the screw and the display).
2 Hang the speaker on the upper
screw.
3 Fix the lower screw temporarily.
4 Adjust the position so that the speaker is parallel to the
display and then fix the upper and lower screws firmly.
Perform installation according to the following steps 1 to 2.
INSTALLATION ON THE PLASMA
DISPLAY
(WHEN INSTALLING THE SPEAKERS AT THE BOTTOM
OF THE DISPLAY)
1 Attach the mounting fittings to the
display.
1 Push rivets into each (lower) outside hole of brackets (on
the right and left sides).
2 Lightly finger-tighten a screw into the (upper) outside hole of
each bracket.
3 Insert the screws into the two outside holes of bracket
(at the center), and tighten them.
4 Attach the speaker cushions supplied with your plasma
display.
5 Align the bosses of the spacer with the holes of the stand
and insert them.
2
5mm
The display
1
24
3
Perform installation according to the following steps 1 to 2.
1
1
2
2
Separate the 3 cushions evenly, making
sure you don't cover the screws with the
speaker cushions when placing them.
Lower back side of the plasma
display speaker system
To Next Page
