4

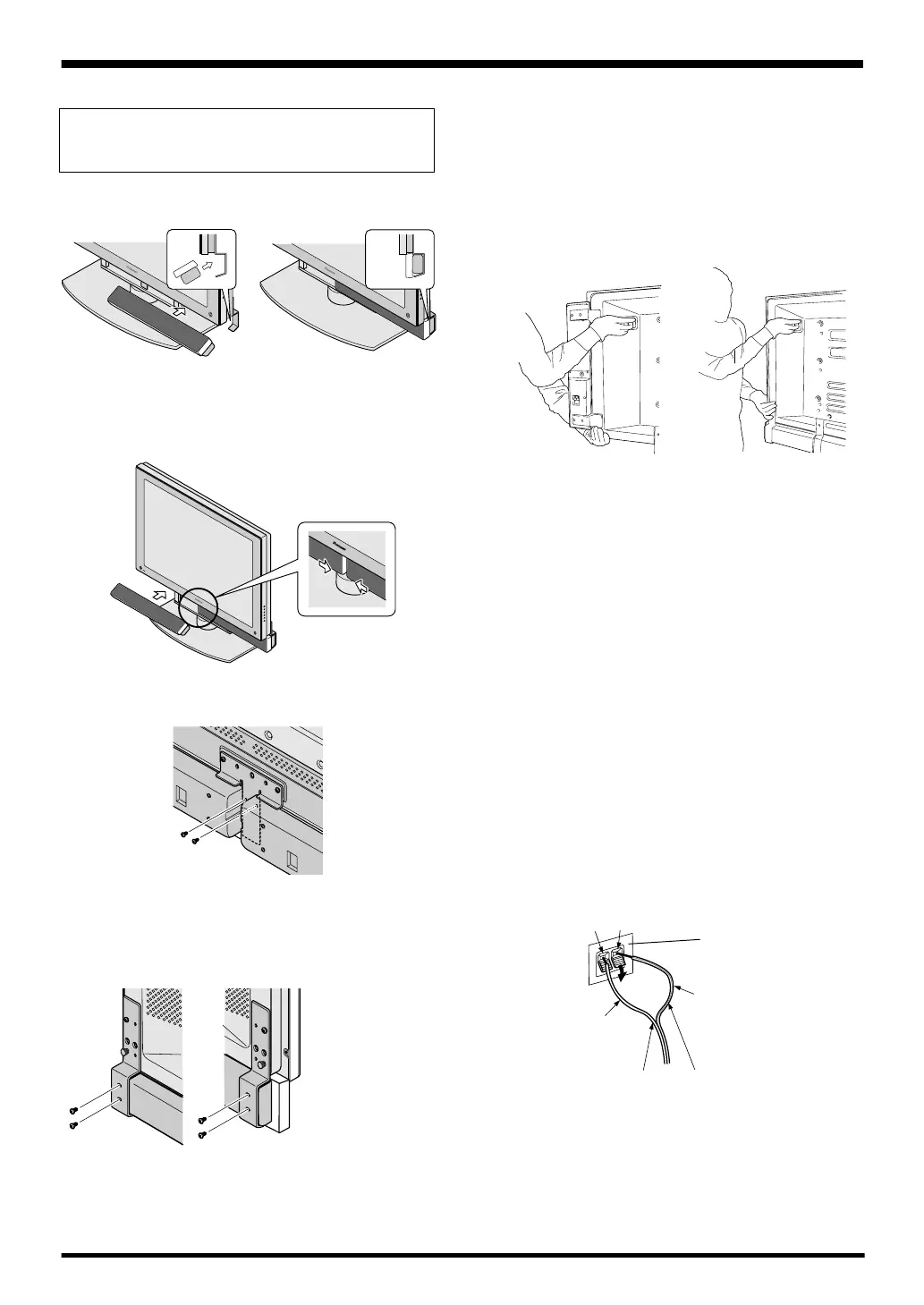

2 Similarly, insert the other speaker into the bracket on the
left side.
3 Adjust so that the clearance between the speakers is lost
and so that the speakers are not shifted to the right or left.
4 Fix the two points in the center of the display with screws.
5 Fix the two points on the right and left sides with screws.
Adjust so that the speaker system is parallel to the dis-
play and then finish securing the screws you had lightly
tightened on the mounting fittings.
When the speakers are installed
on the right and left sides
When the speakers are
installed at the bottom
CONNECTION TO A PLASMA
DISPLAY
1 Connecting the speaker cables
1 Switch off the power of the plasma display.
2 Connect the input terminals of the speaker system and
the speaker output terminals of the plasma display with
the accessory speaker cable. Make sure the positive (ª)
and negative (·) terminals match when connecting.
1. Push the lever, insert the cable into the hole, and release the lever.
To the· terminal
To the ª terminal
(Speaker input terminals of the speaker system)
· terminal (black)
ª terminal (red)
Input terminal of speaker
White
White with gray line
÷
Make sure not to push on the speaker cover with force,
using your fingers or otherwise. The speaker cover can
be broken, and damage to the speaker unit may also
occur as a result.
NOTE:
÷
When attaching the speakers to the plasma display,
make sure to tighten all the screws, making sure the
speakers are secure and do not shake.
÷
When the display is to be moved after speaker
installation, do not hold the display by the speakers. Hold
the handle of the display and the side or bottom of the
display with reference to the figures below when moving
the speaker system. Do not hold the speakers and raise
the display. This may cause the deformation or damage
of products.
Make sure the speaker
is fit snug against the
bracket, then tighten
the screws.
2 Attach the speakers to the display.
Take care to ensure that the display does not hit the
speakers in steps 1 and 2 when speakers are installed on
the display.
1 Place it below the display while inclining one speaker and
insert it into the bracket on the right side.
