Pioneer PDP-S38 User Manual

5
English
English
SYSTEM
CABLE
WHITE
BLACK

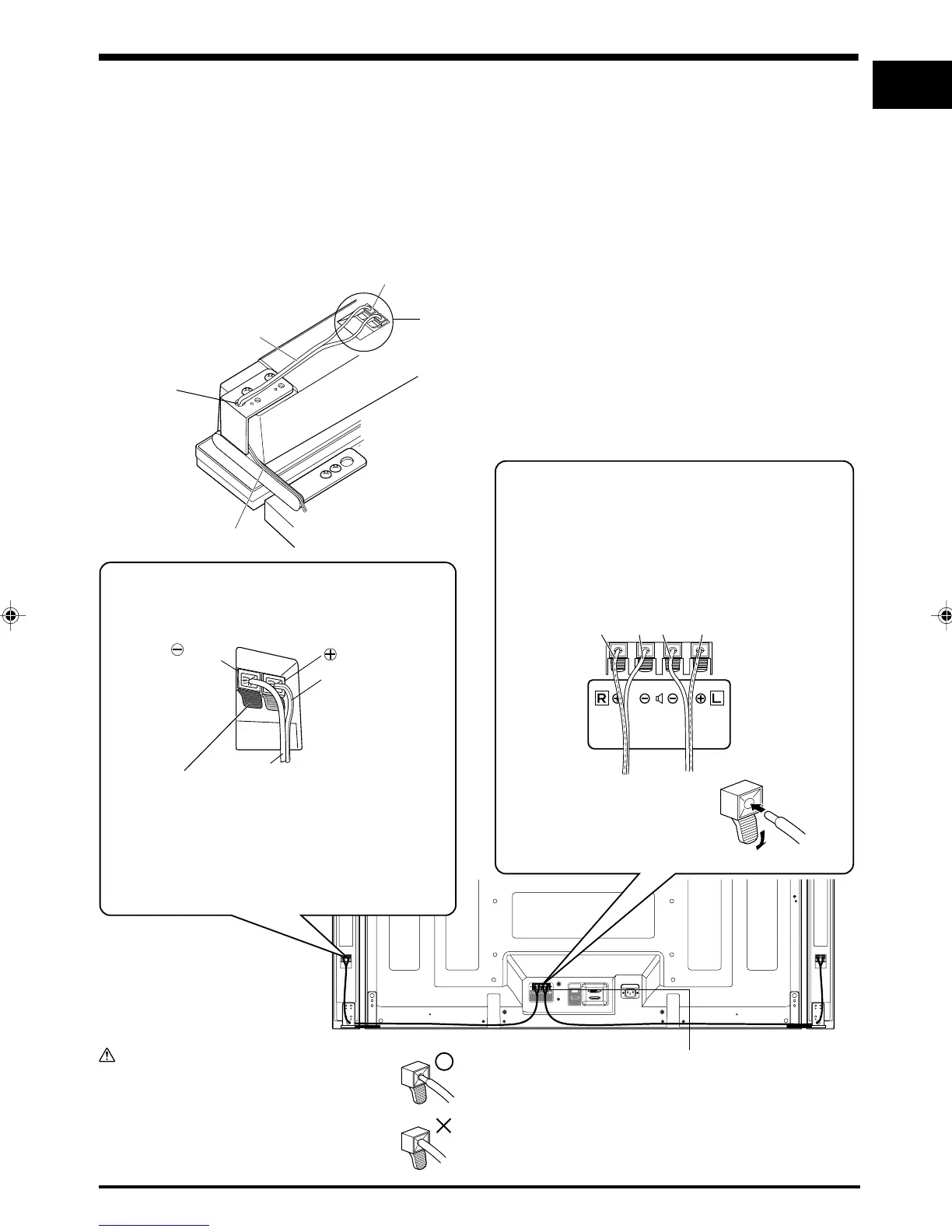

CONNECTION TO A PLASMA DISPLAY
CONNECTING THE SPEAKERS
1 Pass the speaker cables through the hole in the speaker mounting bracket.
2 Connect the speaker cables to the speaker.
3 Press the speaker cables into the groove of the bracket.
4 Connect the speaker cables to the display.
Connecting your Speaker Cables
(to the speaker)
Groove
Speaker Terminal
Speaker Cable
Connecting your Speaker Cables
(to the display)
Connect the cables correctly with respect to the
polarity of the Plasma Display and the speaker
terminals, that is, ª cable to ª terminals and ·
cable to · terminals. To do so, connect the cable
with the gray line to the ª terminals and the white
cable to the · terminals.
÷ Press the lever and insert the
end of the cable.
÷ When you release the lever,
it clamps onto the speaker
cable.
Gray Line
Push the lever, insert the end of the speaker cable
into the hole, and release the lever.
Pay attention to the polarity of the speaker terminals
when making connections. (The gray line represents
the ª terminal)
White
Gray Line White White Gray Line
2
1
3
Warning
If you insert the speaker cable too far so that
the insulation is touching the speaker
terminal, you may not get any sound.
4
(black)
(red)
SRD1294A_01-07/En 6/16/05, 5:55 PM5
