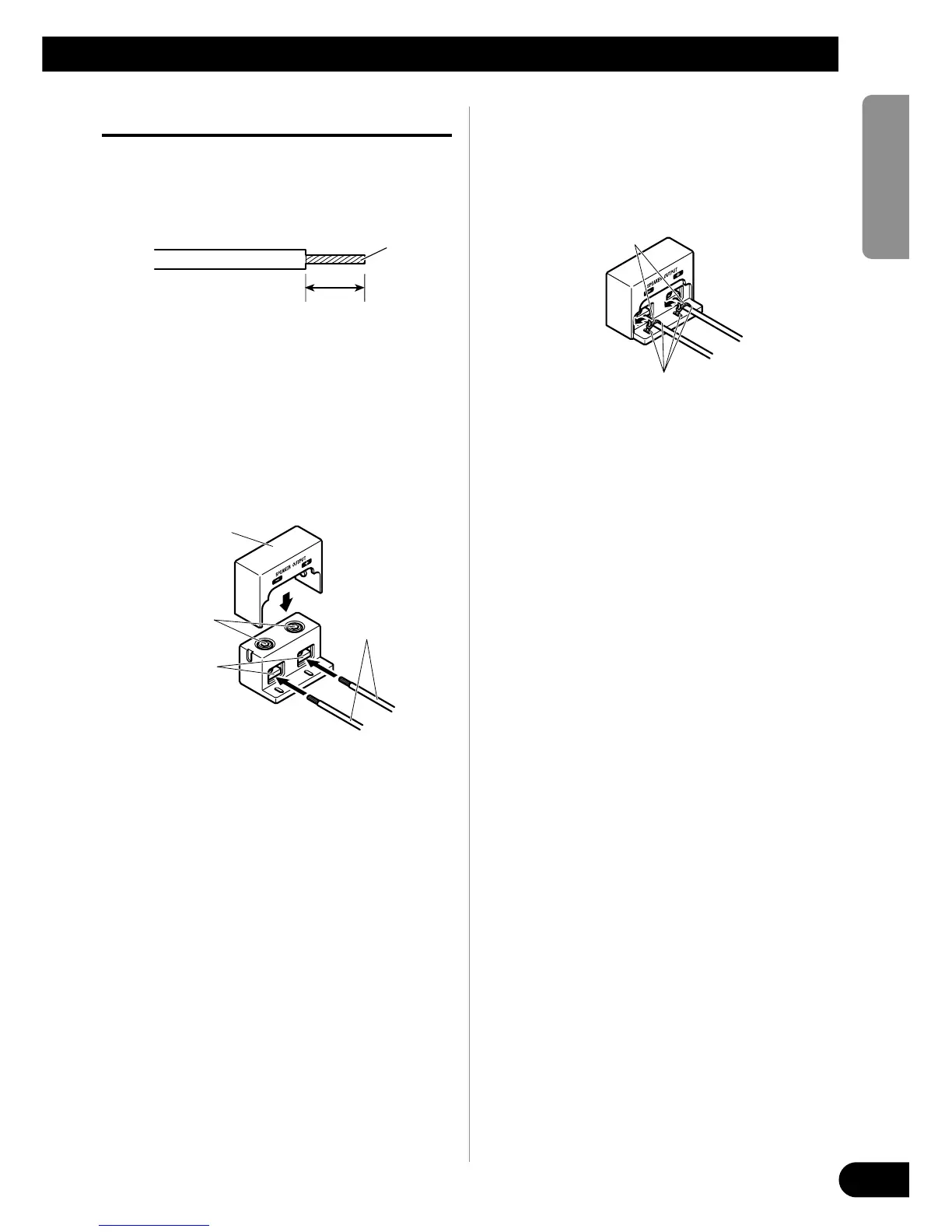

Connecting the Speaker Terminals
1. Expose the end of the speaker wires
using nippers or a cutter by about
15–20 mm and twist.
2. Connect the speaker wires to the
speaker terminals.
• Before connecting the wires to the terminals,
remove the endcap. After connecting the
wires to the terminals, attach the endcap.
• Fix the speaker wires securely with the termi-
nal screws.
3. Put the wire ties in the slits and
wrap the wire ties around the wires.
• Wrap the wire tie around the wire insulation,
not the stripped wire.
15–20 mm
Twist
Wire tie
Slit
Speaker terminal
Terminal screw
Speaker wire
Endcap
