Pioneer VSX-21 - Schematic Diagram; 2.1 Front Assy

VSX-21
4
A
B
C
D
1
23
4
1234
2. SCHEMATIC DIAGRAM
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST"

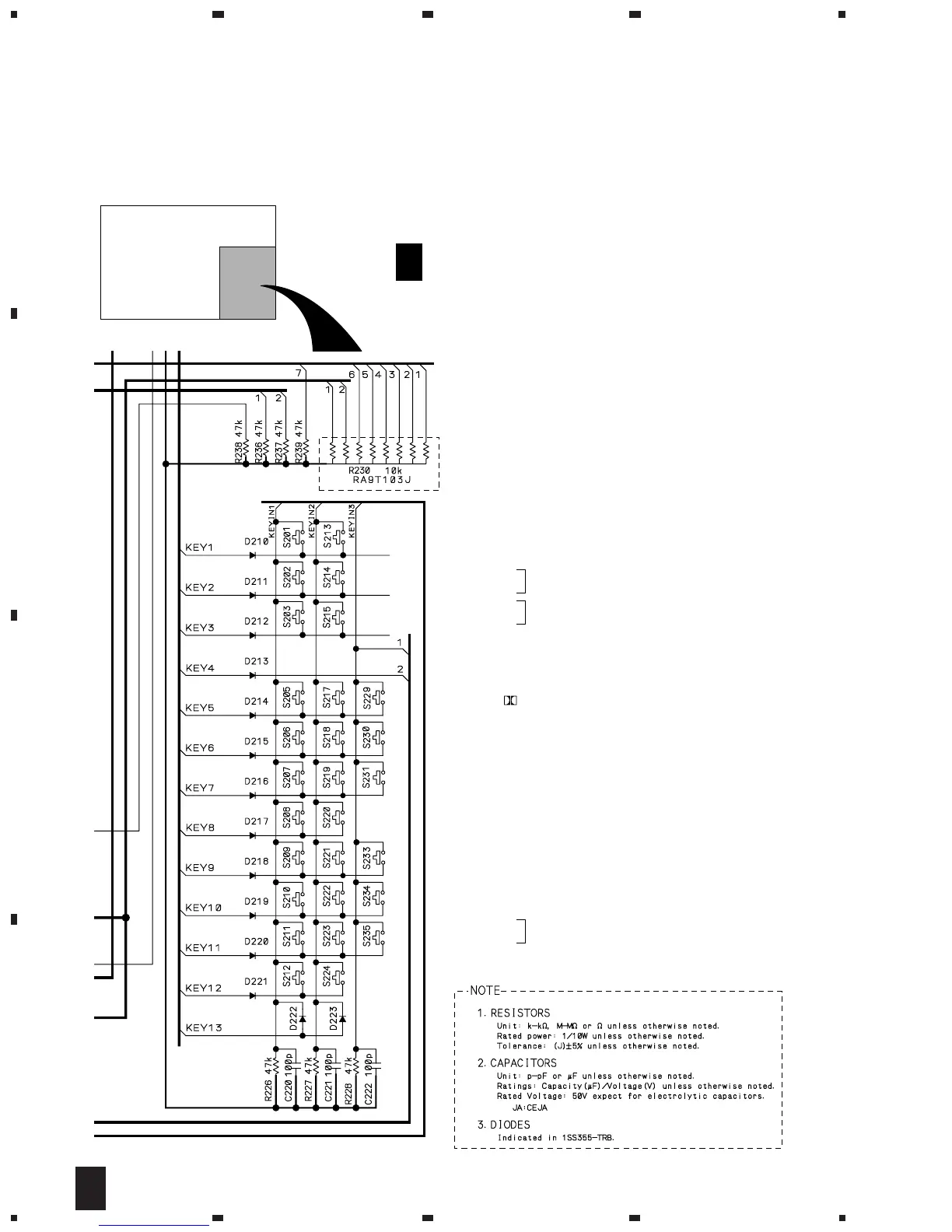

2.1 FRONT ASSY
FB
FRONT ASSY
S201 : SIGNAL SELECT
S202 : MIDNIGHT
S203 : DIGITAL NR
S205 : –
S206 : +
S207 : –
S208 : +
S209 : SPEAKERS
S210 : LOUDNESS
S211 : DIRECT
S212 : TAPE2 MONITOR
S213 : / DTS
S214 : DSP MODE
S215 : RE-EQ
S217 : DVD/LD
S218 : TV/SAT
S219 : CD
S220 : FM/AM
S221 : VCR 1
S222 : VCR 2
S223 : MD/TAPE1
S224 : VIDEO
S229 : CLASS
S230 : MEMORY
S231 : MPX MODE
S233 : –
S234 : +
S235 : TUNING SELECT
S250 : MASTER VOLUME
STATION/FREQUENCY
BASS
TREBLE
FRONT ASSY
(AWX7335)
F
B
