75
Front Panel Rear Panel Remote
Contents
Connections
Playback
Setup

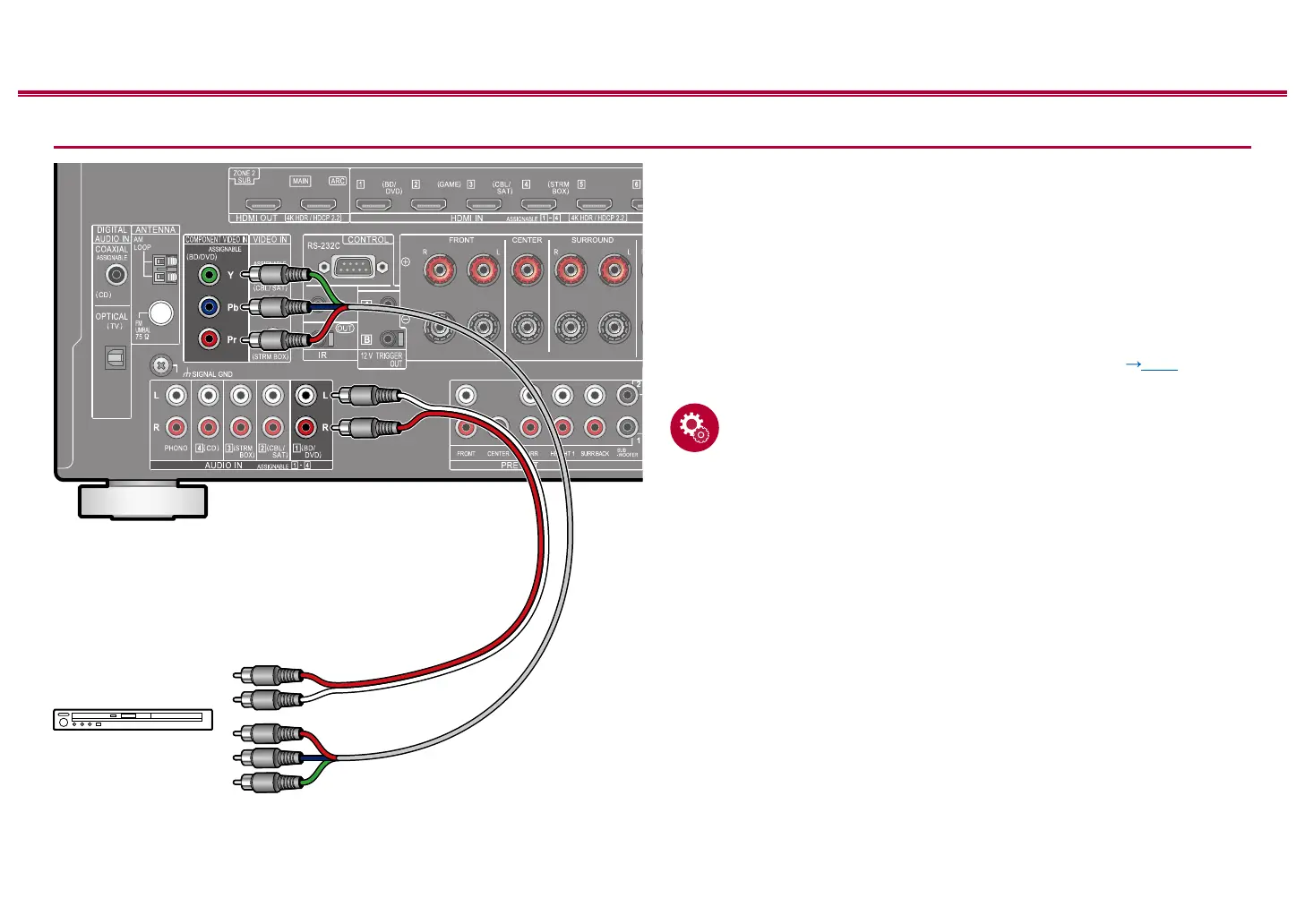

Connecting an AV Component without HDMI Jack Mounted
This is a connection example of an AV component unequipped with an HDMI
jack. Select cables that match the jacks of the AV component for connection. For
example, when video input is connected to the BD/DVD jack, connect the audio
input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should
have the same name for connection. Note that video signals input to the VIDEO
IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals,
and then output from the HDMI OUT jack.
To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital
optical cable.
According to the illustration, changing the input assignment ( p147)
enables connection to jacks other than the BD/DVD jack.
Setup
The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i
resolution. When connecting to the COMPONENT VIDEO IN jacks, set the
output resolution of the player to 480i or 576i. If there is no option such as
480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
a Analog audio cable, b Component video cable
a b
BD/DVD

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pioneer VSX-LX504 and is the answer not in the manual?

Pioneer VSX-LX504 Specifications

General IconGeneral
Receiver typeSurround
Pre-out connectivityYes
Audio output channels9.2 channels
Power output per channel (1KHz@6 Ohm)215 W
Power output per channel (1KHz@8 Ohm)180 W
Power output per channel (20-20KHz@8 Ohm)- W
Display-
HDCP version2.2
Apple dockingNo
Product colorSilver
Audio decodersDTS 96/24, DTS-HD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
Volume controlRotary
Surround modes quantity10
AC input voltage220-240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.15 W
Power consumption (typical)870 W
Supported video modes1080p, 2160p
Supported radio bandsAM, FM
Preset stations quantity40
Internet radio services supportedAmazon Music, Deezer, Spotify, Tidal, TuneIn
Bluetooth version4.2
Bluetooth profilesA2DP, AVRCP
Audio formats supportedAIFF, ALAC, FLAC, WAV
RS-232 ports1
Connectivity technologyWired & Wireless
12V trigger ports quantity2
Speakers connectivity typeBinding post
HDMI in7
Weight and Dimensions IconWeight and Dimensions
Depth386 mm
Width435 mm
Height185 mm
Weight13000 g
