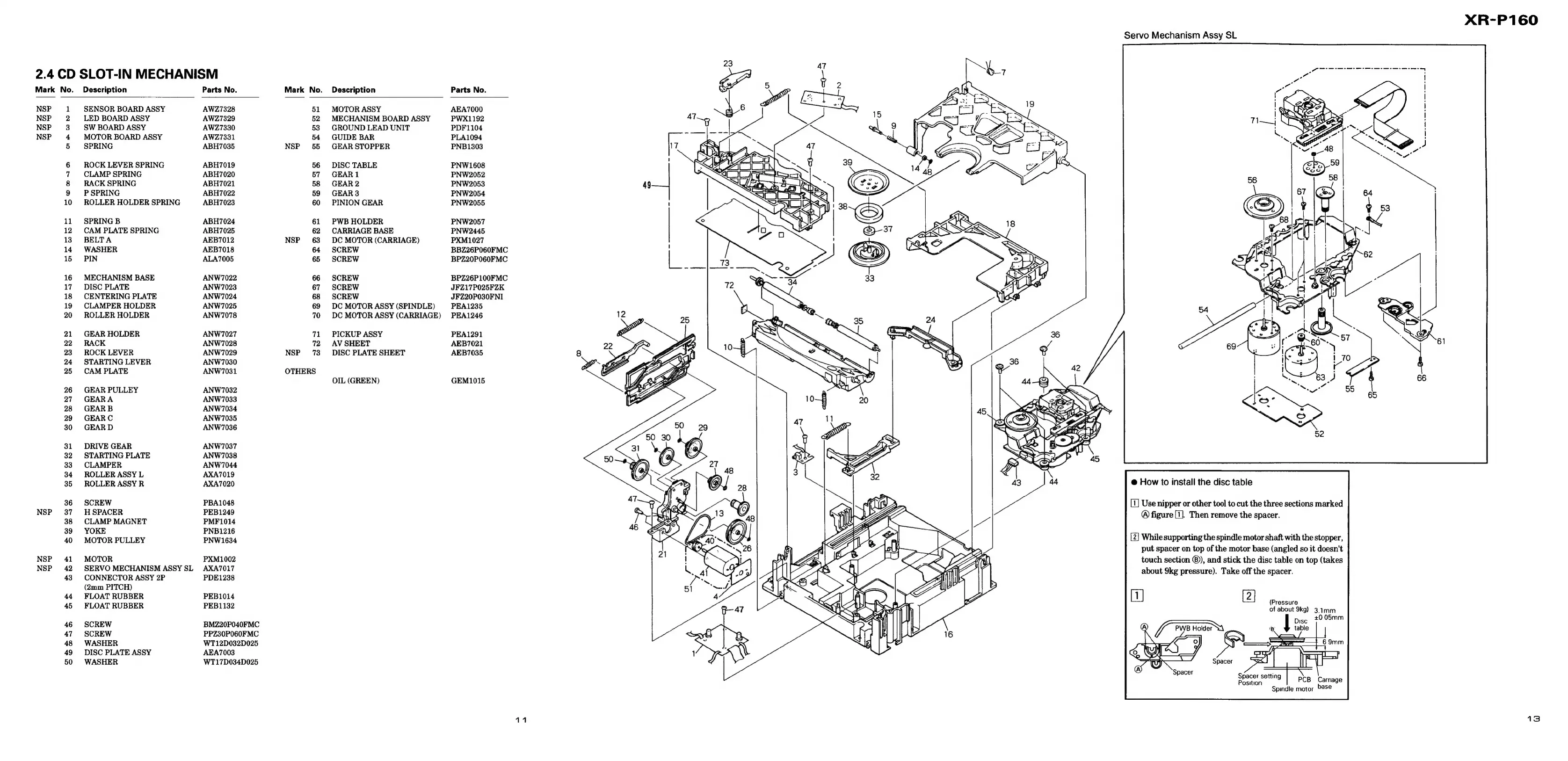

2.4 CD SLOT-IN MECHANISM
XR-P160
Servo Mechanism Assy SL
Mark No. Description Parts No. Mark No. Description Parts No.
NSP 1 SENSOR BOARD ASSY AWZ7328 51 MOTOR ASSY AEA7000
NSP 2 LED BOARD ASSY AWZ7329 52 MECHANISM BOARD ASSY PWX1192
NSP 3 SW BOARD ASSY AWZ7330 53 GROUND LEAD UNIT PDF1104
NSP 4 MOTOR BOARD ASSY AWZ7331 54 GUIDE BAR PLA1094
5 SPRING ABH7035 NSP 55 GEAR STOPPER PNB1303
6 ROCK LEVER SPRING ABH7019 56 DISC TABLE PNW1608
7 CLAMP SPRING ABH7020 57 GEAR1 PNW2052
8 RACK SPRING ABH7021 58 GEAR2 PNW2053
9 P SPRING ABH7022 59 GEAR3 PNW2054
10 ROLLER HOLDER SPRING ABH7023 60 PINION GEAR PNW2055
11 SPRINGB ABH7024 61 PWB HOLDER PNW2057
12 CAM PLATE SPRING ABH7025 62 CARRIAGE BASE PNW2445
138 BELTA AEB7012 NSP 63 DC MOTOR (CARRIAGE) PXM1027
14. WASHER AEB7018 64 SCREW BBZ26P060FMC ‘
15 PIN ALA7005 65 SCREW BPZ20P060FMC
16 MECHANISM BASE ANW7022 66 SCREW BPZ26P100FMC
17. DISC PLATE ANW7023 67 SCREW JFZ17P025FZK i
18 CENTERING PLATE ANW7024 68 SCREW JFZ20P030FNI
19 CLAMPER HOLDER ANW7025 69 DC MOTOR ASSY (SPINDLE) PEA1235
20 ROLLER HOLDER ANW7078 70 DC MOTOR ASSY (CARRIAGE) PEA1246 P~
21 GEAR HOLDER ANW7027 71 PICKUP ASSY PEA1291 : Cy
22 RACK ANW7028 72 AV SHEET AEB7021 6)
23. ROCK LEVER ANW7029 NSP 73 DISC PLATE SHEET AEB7035
24 STARTING LEVER ANW7030
25 CAM PLATE ANW7031 OTHERS
OIL (GREEN) GEM1015 66
26 GEAR PULLEY ANW7032
27 GEARA ANW7033
28 GEARB ANW7034
29 GEARC ANW7035
30 GEARD ANW7036
31 DRIVE GEAR ANW7037
32 STARTING PLATE ANW7038
33. CLAMPER ANW7044
34 ROLLER ASSY L AXA7019 ; :
35 ROLLERASSYR AXA7020 @ How to install the disc table
36 SCREW PBA1048 [1] Use nipper or other tool to cut the three sections marked
NSP 37 HSPACER PEB1249 ® figure [1]. Then remove the spacer.
38 CLAMP MAGNET PMF1014
- ork PULLEY elehilag [2] While supporting the spindle motor shaft with the stopper,
put spacer on top of the motor base (angled so it doesn't
NSP 41 MOTOR PXM1002 touch section ®), and stick the disc table on top (takes
NSP
42
SERVO
MECHANISM
ASSYSL
AXA7017
about
9kg
pressure).
Take
off
the
spacer.
43 CONNECTOR ASSY 2P PDE1238
(2mm PITCH)
44 FLOAT RUBBER PEB1014 (Pressurd
45 FLOAT RUBBER PEB1132 of about 90h nan
J Disc +2 05mm
46 SCREW BMZ20P040FMC ble
47 SCREW PPZ30P060FMC
48 WASHER WT12D032D025
49 DISC PLATE ASSY AEA7003
50 WASHER WT17D034D025
Spacer setting
Position PCB Carriage
Spindle motor base
11
13
