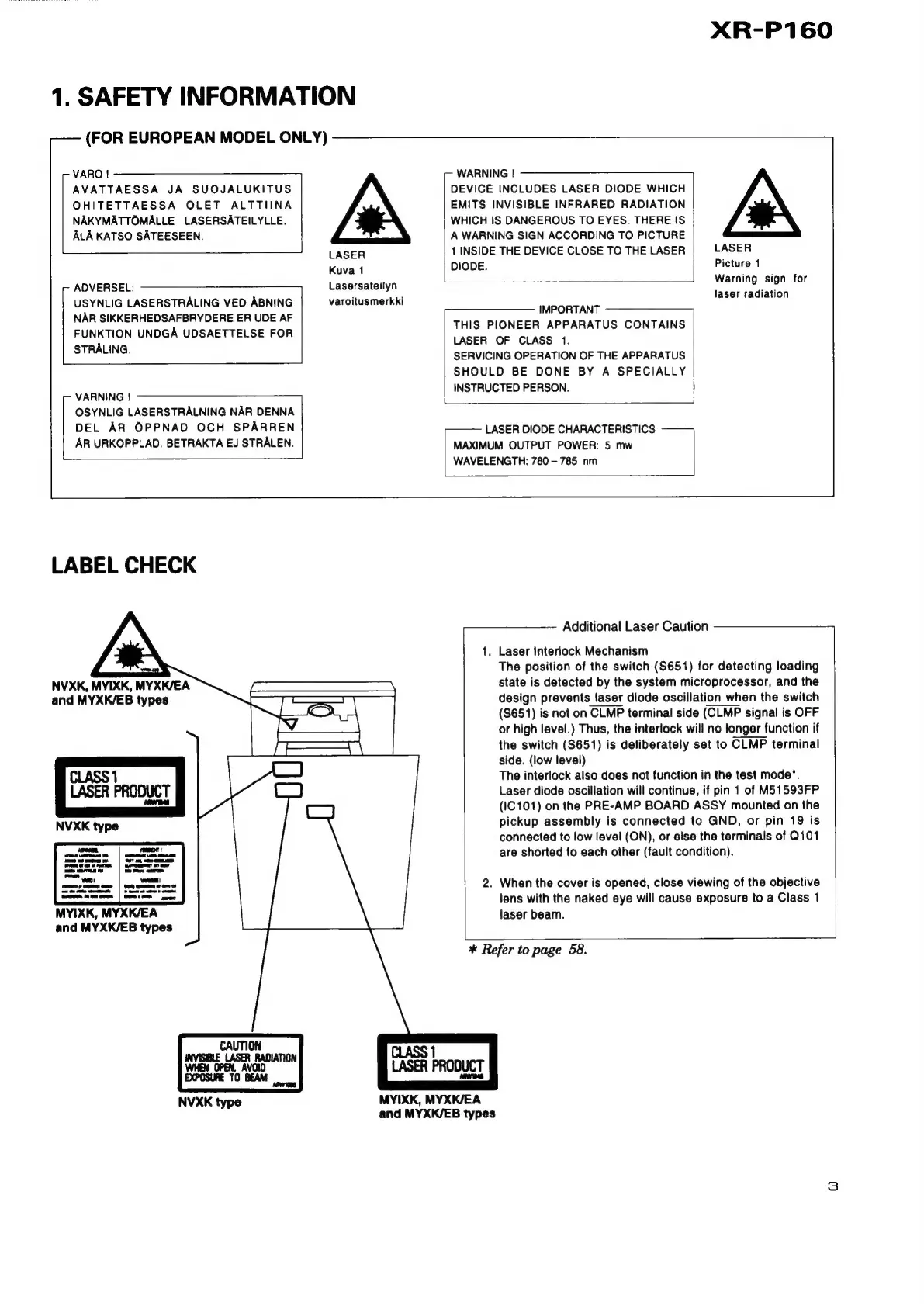

1. SAFETY INFORMATION
(FOR EUROPEAN MODEL ONLY)
- VARO | — A WARNING | ——H—_
AVATTAESSA JA SUOJALUKITUS DEVICE INCLUDES LASER DIODE WHICH
OHITETTAESSA OLET ALTTIINA EMITS INVISIBLE INFRARED RADIATION
NAKYMATTOMALLE LASERSATEILYLLE. WHICH IS DANGEROUS TO EYES. THERE IS
ALA KATSO SATEESEEN. A WARNING SIGN ACCORDING TO PICTURE
LASER 1 INSIDE THE DEVICE CLOSE TO THE LASER LASER
Kuva 1 DIODE. Picture 1
-
ADVERSEL:
Lasersateilyn
Warning
sign
for
USYNLIG
LASERSTRALING
VED
ABNING
varoitusmerkki
laser
radiation
NAR
SIKKERHEDSAFBRYDERE
ER
UDE
AF
FUNKTION
UNDGA
UDSAETTELSE
FOR
STRALING.
IMPORTANT ———————_
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
- VARNING !
OSYNLIG LASERSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPARREN LASER DIODE CHARACTERISTICS ———
AR URKOPPLAD. BETRAKTA EJ STRALEN. MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 - 785 nm
LABEL CHECK
Additional Laser Caution
1. Laser Interlock Mechanism
The position of the switch (S651) for detecting loading
state is detected by the system microprocessor, and the
design prevents laser diode oscillation when the switch
(S651) is not on CLMP terminal side (CLMP signal is OFF
or high level.) Thus, the interlock will no longer function if
the switch (S651) is deliberately set to CLMP terminal
side. (low level)
The interlock also does not function in the test mode’.
Laser diode oscillation will continue, if pin 1 of M51593FP
(IC 101) on the PRE-AMP BOARD ASSY mounted on the
pickup assembly is connected to GND, or pin 19 is
connected to low level (ON), or else the terminals of Q101
are shorted to each other (fault condition).
NVXK, MYIXK, MYXK/EA
and MYXK/EB types
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 1
MYIXK, MYXK/EA laser beam.
and MYXK/EB types
* Refer to page 58.
NVXK type MYIXK, MYXK/EA
and MYXK/EB types
