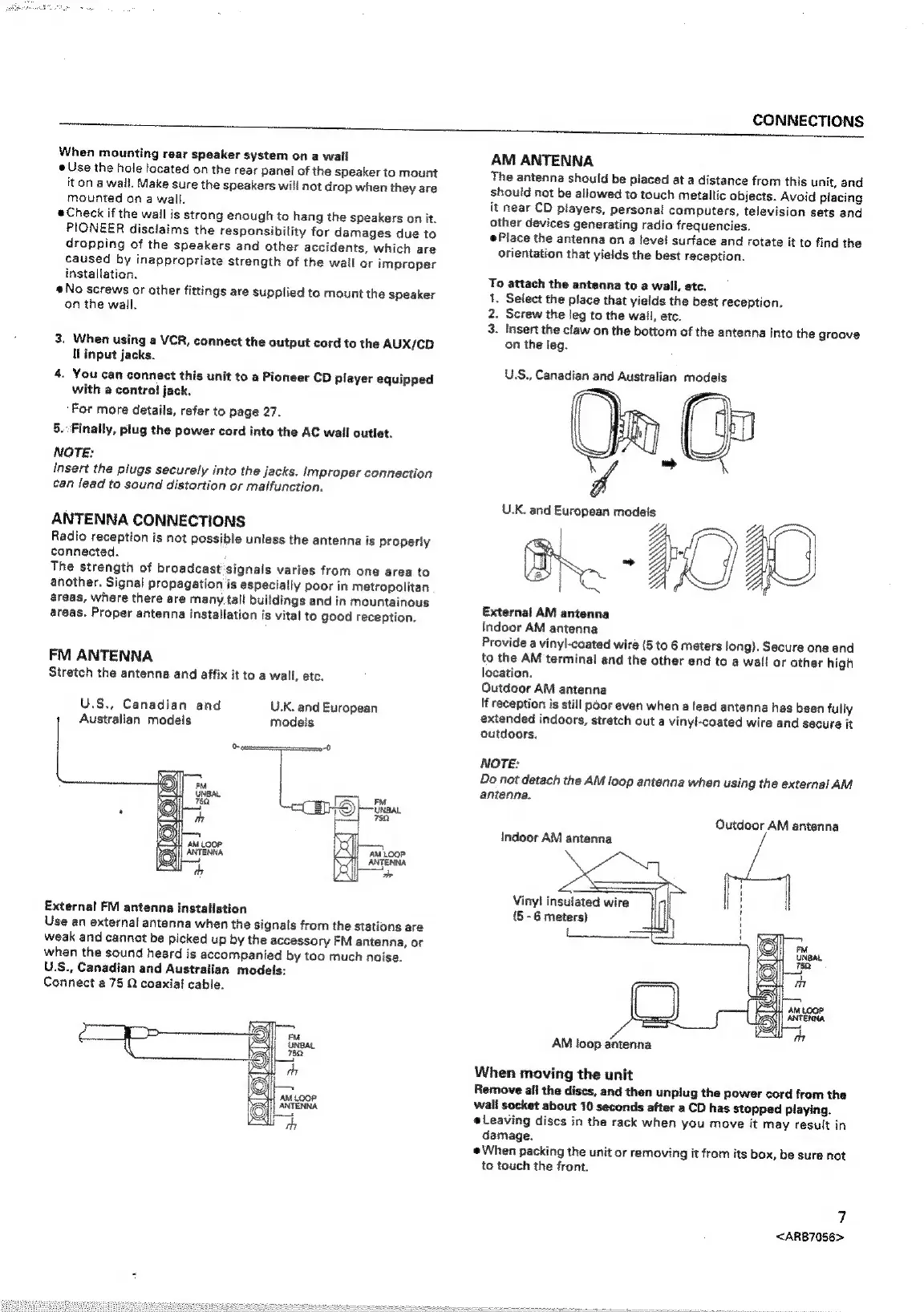

CONNECTIONS
When
mounting
rear
speaker
system
on
a
wall
e
Use
the
hale
located
on
the
rear
panel
of
the
speaker
to
mount
it
on
a
wall.
Make
sure
the
speakers
will
not
drop
when
they
are
mounted
on
a
wall.
®
Check
if
the
wail
is
strong
enough
to
hang
the
speakers
on
it.
PIONEER
disclaims
the
responsibility
for
damages
due
to
dropping
of
the
speakers
and
other
accidents,
which
are
caused
by
inappropriate
strength
of
the
wall
or
improper
installation.
@No
screws
or
other
fittings
are
supplied
to
mount
the
speaker
on
the
wall,
3.
When
using
a
VCR,
connect
the
output
cord
to
the
AUX/CD
Il
input
jacks.
4.
You
can
connect
this
unit
to
a
Pioneer
CD
player
equipped
with
a
control
jack,
For
more
details,
refer
to
page
27.
5.-Finally,
plug
the
power
cord
into
the
AC
wall
outlet.
NOTE:
insert
the
plugs
securely
into
the
jacks.
Improper
connection
can
lead
to
sound
distortion
or
malfunction.
ANTENNA
CONNECTIONS
Radio
reception
is
not
possible
unless
the
antenna
is
properly
connected.
The
strength
of
broadcast
signals
varies
from
one
area
to
another.
Signal
propagation
is
especially
poor
in
metropolitan
areas,
where
there
are
many
tall
buildings
and
in
mountainous
areas.
Proper
antenna
installation
is
vital
to
good
reception.
FM ANTENNA
Stretch
the
antenna
and
affix
it
to
a
wall,
etc.
U.S.,
Canadian
and
U.K.
and
European
Australian
models
models
External FM antenna installation
Use
an
external
antenna
when
the
signals
from
the
stations
are
weak
and
cannot
be
picked
up
by
the
accessory
FM
antenna,
or
when
the
sound
heard
is
accompanied
by
too
much
noise.
U.S.,
Canadian
and
Australian
modets:
Connect a 75 Q coaxial cable.
bs
FM
‘UNBAL
TER
ib
AM LOOP
ANTENNA
a
AM ANTENNA
The
antenna
should
be
placed
at a
distance
from
this
unit,
and
shouid
not
be
allowed
to
touch
metallic
objects.
Avoid
placing
it
near
CD
players,
personal
computers,
television
sets
and
other
devices
generating
radio
frequencies.
Place
the
antenna
on
a
level
surface
and
rotate
it
to
find
the
orientation
that
yields
the
best
reception.
To
attach
the
antenna
to
a
wall,
ete.
1,
Select
the
piace
that
yields
the
best
reception.
2. Screw the leg to the wail, atc.
3.
Insert
the
claw
on
the
bottom
of
the
antenna
into
the
groove
on
the
leg.
U.S., Canadian and Australian models
External AM antenna
Indoor AM antenna
Provide
a
vinyi-coated
wire
(5
to
6
meters
long).
Secure
one
end
to
the
AM
terminal
and
the
other
end
to
a
wall
or
other
high
location.
Outdoor AM antenna
If
reception
is
still
poor
even
when
a
lead
antenna
has
been
fully
extended
indoors,
stretch
out
a
vinyl-coated
wire
and
secure
it
outdoors,
NOTE:
Do
not
detach
the
AM
loop
antenna
when
using
the
external
AM
antenna.
Outdoor AM antenna
Indoor AM antenna
Vinyl
insulated
wire
H i
(5
-
6
meters)
4
[ees
ee
AM loop antenna
When
moving
the
unit
Remove
all
the
discs,
and
then
unplug
the
power
cord
from
the
wail
socket
about
10
seconds
after
a
CD
has
stopped
playing.
eLeaving
discs
in
the
rack
when
you
move
it
may
result
in
damage.
e
When
packing
the
unit
or
removing
it
from
its
box,
be
sure
not
to
touch
the
front.
7
<ARB7056>
