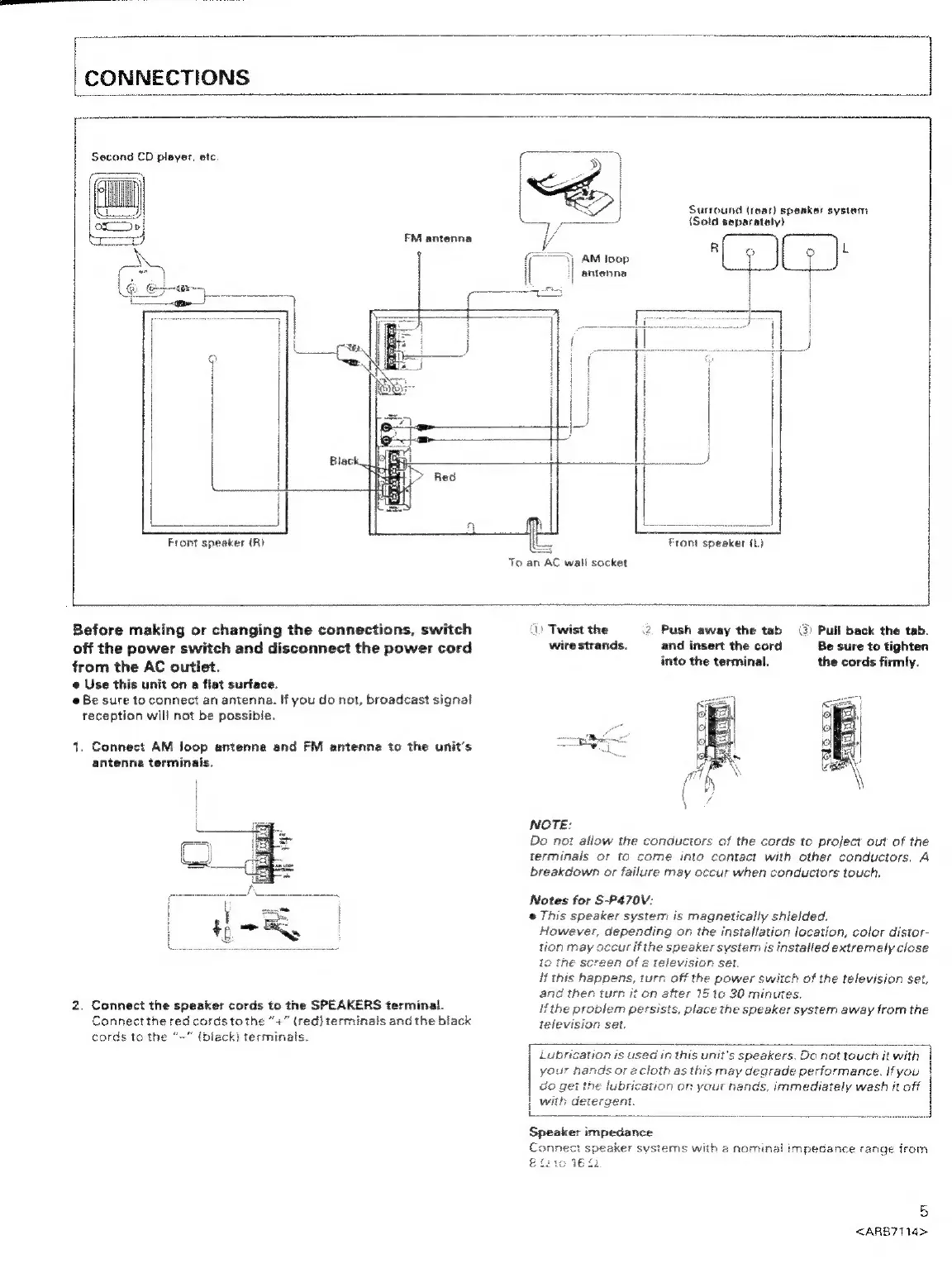

Pioneer XR-P670F User Manual

Surround (rear) speaker system
(Sold separately)
Rf 4 L
FM antenna
AM loap
antenna
|
Front speaker (R)
Front speaker {Li
To an AC walt socket
Before making or changing the connections, switch 1) Twist the 2. Push away the tab @) Pull back the tab.
off the power switch and disconnect the power cord wire strands. and insert the cord Be sure to tighten
from the AC outlet into the terminal. the cords firmly.
@ Use this unit on a flat surface.
@ Be sure to connect an antenna. If you do not, broadcast signa!
reception will not be possible.
4. Connect AM loop antenna and FM antenna to the unit's
antenna terminais.
NOTE:
Do not allow the conductors of the cords to project out of the
terminals or to come into contact with other conductors, A
breakdown or failure may occur when conductors touch,
Notes for S-P470V:
® This speaker system is magnetically shielded.
However, depending on the installation location, color distor-
tion may occur if the speaker system is installed extremely close
© the screen of @ television set.
Hf this happens, turn off the power switch of the television set,
and then turn it on after 15 to 30 minutes.
2. Connect the speaker cords to the SPEAKERS terminal. li the problem persists, place the speaker system away from the
Connect the red cords tothe “+” (red} terminals and the biack television set.
cords to the “~" {black} terminals.
po ae
| Lubrication is used in this unit's speakers. Do not touch it with |
your hands or e cloth as this may degrade performance. Ifyou |
rer i tttinind
5
<ARB7114>
