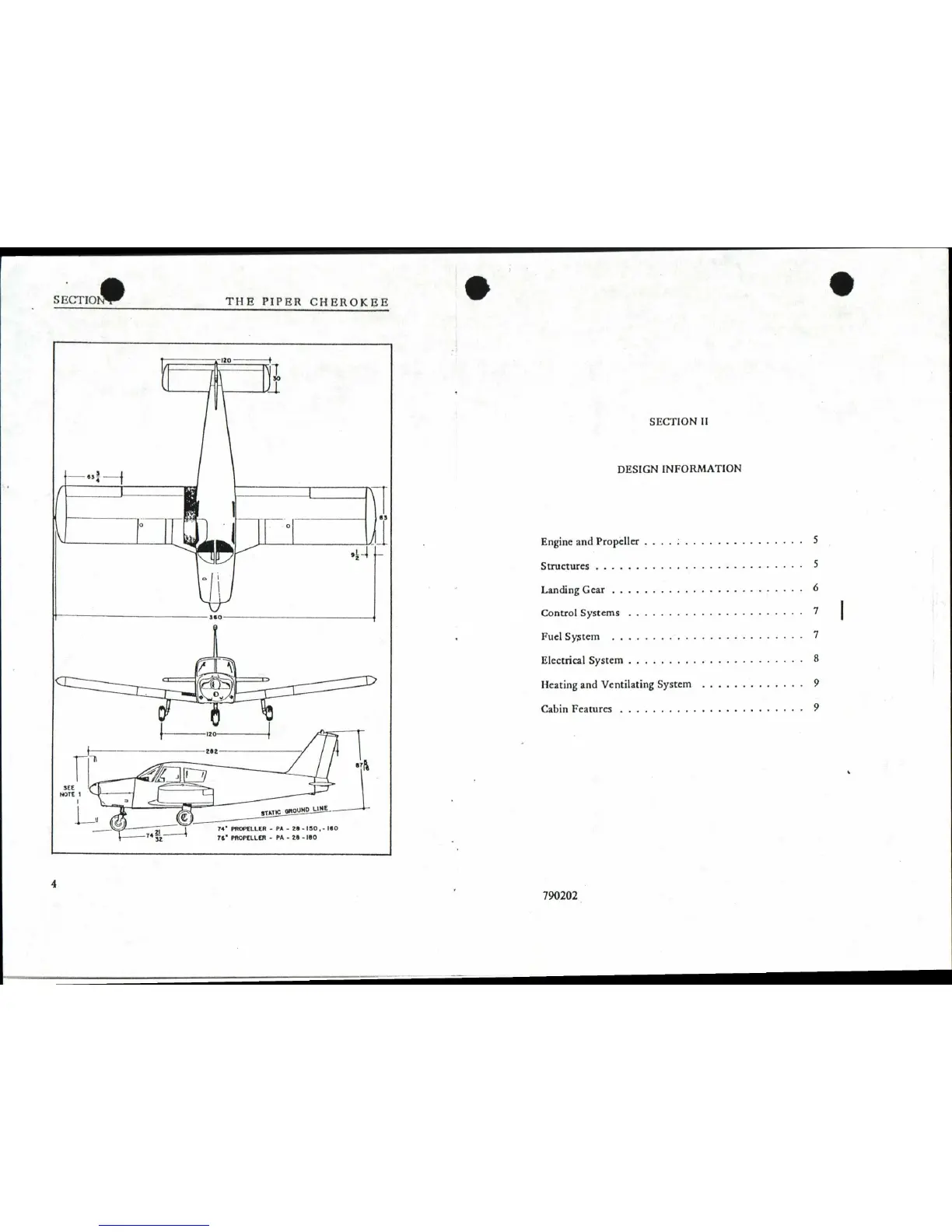

STATIC GROUND LINE
74' PROPELLER - PA - 29 - ISO 160
76" PROPELLER - PA 28 -180
4
SECTIO•
THE PIPER CHEROKEE
SECTION II
DESIGN INFORMATION
Engine and Propeller
5
Structures
5
Landing Gear
6
Control Systems
7
Fuel System
7
Electrical System
8
Heating and Ventilating System
9
Cabin Features
9
790202
