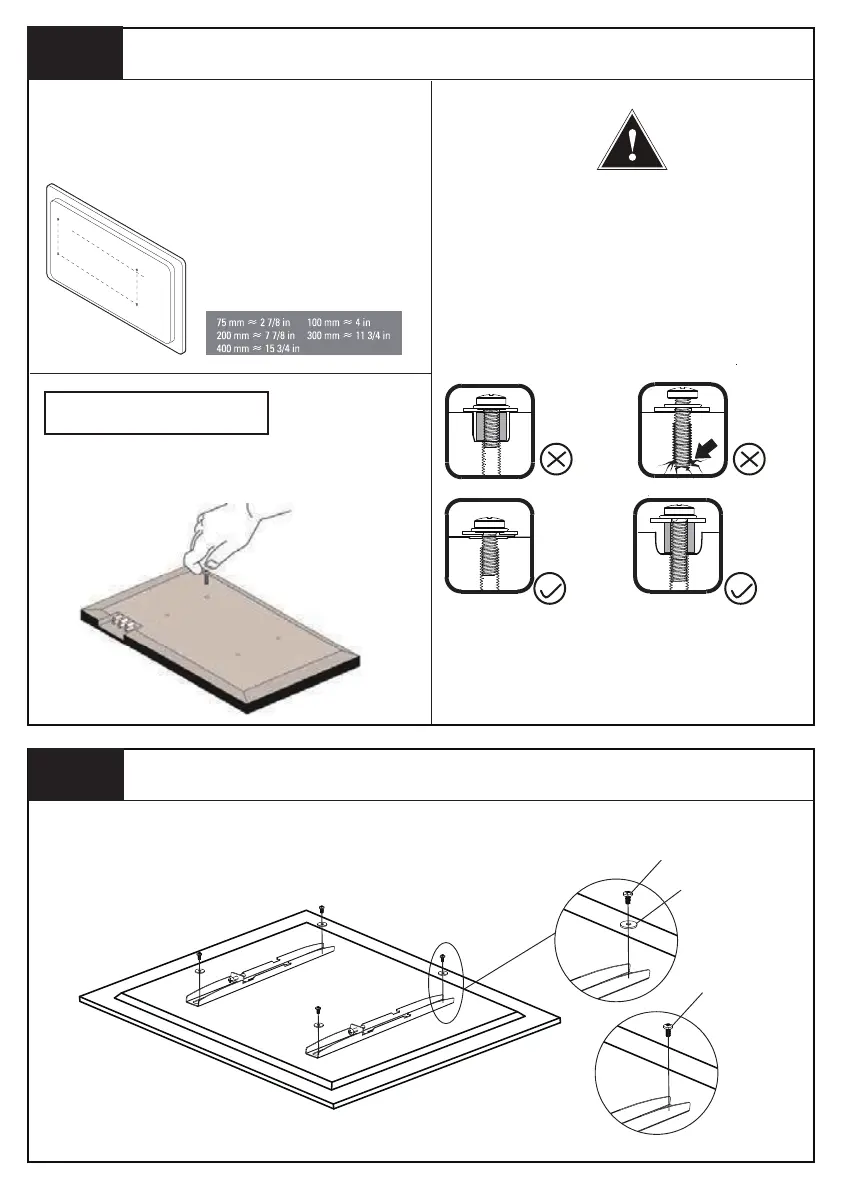

Step 1
Measure VESA and Check TV screws
Check TV screws
When attaching brackets to the flat
screen, be careful not to over
tighten screws and be sure that
screws do not bottom out in the
mounting holes.
Too Short
Too Long
Correct
Correct
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M4, M6, or M8) to use.
Width
Height
Measure the distance between
the holes located at the back of
your TV (these measures may
form the shape of a square, or a
rectan gle) and check that these
taken measures are within the
VESA(*) range for this wall
mount.(*) VESA: International
standard established by the TV
manufacturers used to determine
if LCD/LED TVs are compatble
with wall mounts.
FLAT BACK TV
(UNIVERSAL MONITOR PLATE)
Step 2
Attach the TV Brackets to the TV
