Pipistrel Sinus 503 User Manual

56
SINUS motorglider
www.pipistrel.si
REV. 0
57
SINUS motorglider
www.pipistrel.si
REV. 0
Composite parts are made of:
fabric: GG160, GG200, 90070, 92110, 92120, 91125, 92140, 92145, KHW200
roving: NF24
foam: 75 kg/m3 PVC 3mm, PVC 5 mm, PVC 8mm
GFK: 3 mm, 5 mm, 7 mm of thickness
paint: gelcoat
heat resistant protection glass-aluminium sandwich
Medal parts used are:
tubes: materials: Fe0146, Fe 0147, Fe0545, Fe1430, AC 100, CR41 in LN9369
sheet metal: materials: Fe0147 in Al 3571
rods: materials: Fe 1221, Fe 4732, Č4130, Al 6082, CR41 in Al 6362
cable: AISI 316
bolts and nuts: 8/8 steel
All composite parts are made of glass, carbon and kevlar ber manufactured by Interglas GmbH.
All parts have been tested at safety factor 1.8, meaning stressed to 7,2 G
All parts are made in moulds, therefore no shape or structural dierences can occur.
All desinging, manufacturing and testing complies with following regulations:
• Bauvorschriften für Ultraleichtugzeuge des Deutschen Aero Club e.V. Beauftragter des
Bundes-ministeriums für Verkehr
• JAR-1 microlight denition
• JAR-VLA –certain sections
for Slovenian market also: Pravilnik o ultralahkih napravah Republike Slovenije.
All parts and materials presented in Sinus ultralight motorglider are also being used
in glider and general aviation industry and all comply with aviation standards.

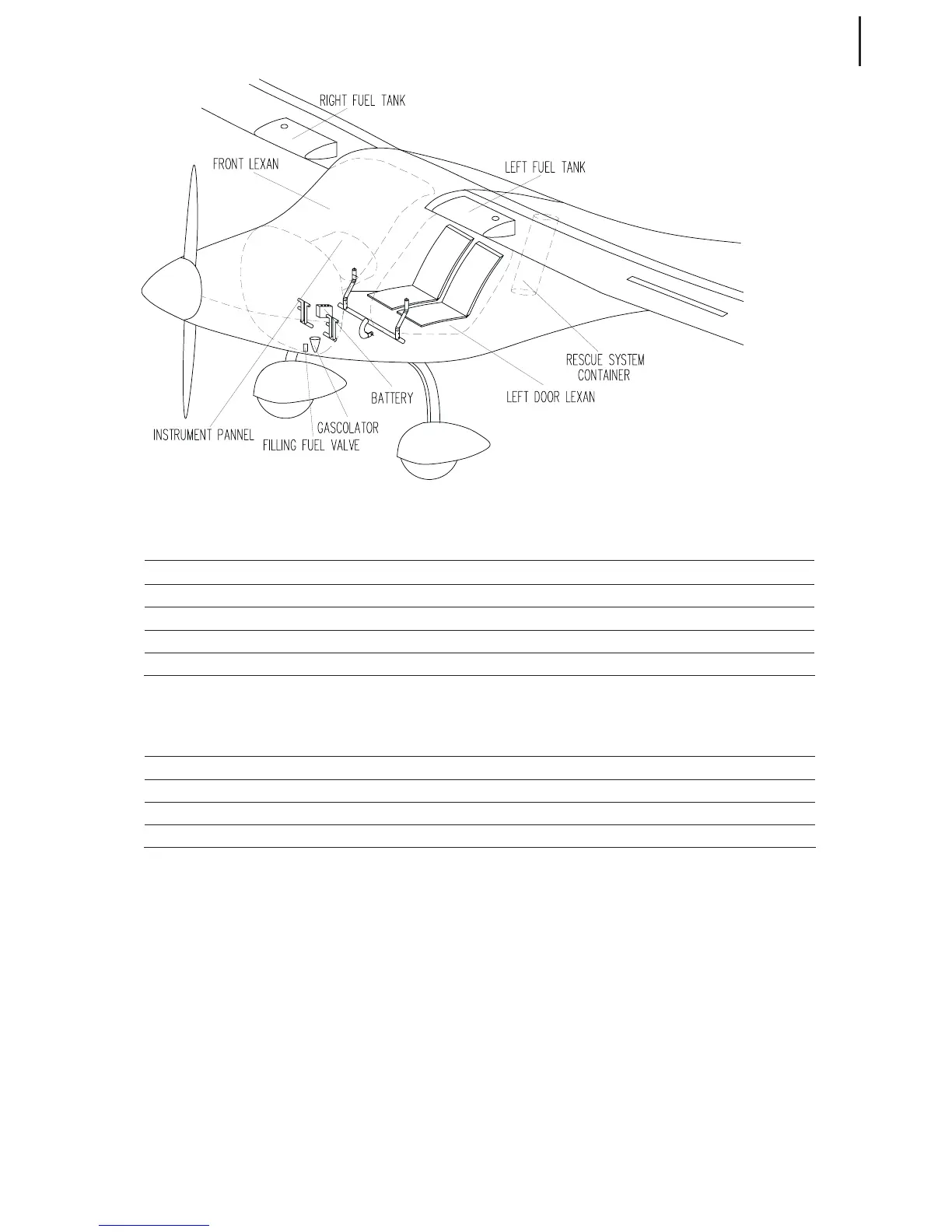

Aircraft and systems on board
