SINUS motorglider
www.pipistrel.si
REV. 0
Fuel system
description: vented wing fuel tanks with refuling aperture on top of the wings
fuel selector valves: separated, one for each fuel tank
gascolator: lter equipped with drain valve
fuel capacity: 30 + 30 liters (std.) / 50 + 50 litres (optional)
unusable fuel (per reservoir): 2 liters (std.) / 5 litres (optional)
fuel lter: metal, inside the gascolator
All fuel hoses are protected with certied glass-teon cover. Sinus ultralight motorglider models 503
and 582’s fuel system are without fuel return circuit. Model 912’s fuel system features fuel return cir-
cuit.
WARNING! Visual fuel quantity indicator (tubes) in cockpit do not always provide relevant
information about the actual fuel quantity on board. Due to reasons of wing dihedral, angle of
attack, sideslip and reservoir supply point the readout may be incorrect. Flying with less than 3
cm (1 Inch) of indicated fuel (measured from the bottom of the tube upwards in any of the reser-
voirs) is therefore regarded as hazardous any may result in engine fuel starvation and/or engine
failure.
CAUTION! Due to the position of the fuel reservoir supply point, ying in considerable sideslip
for a longer time may result in fuel starvation to the engine if the fuel tank in the opposite direc-
tion of the sideslip is closed. Should this occur, righten the ight and re-open the fuel tank in
question immediately to prevent engine failure.

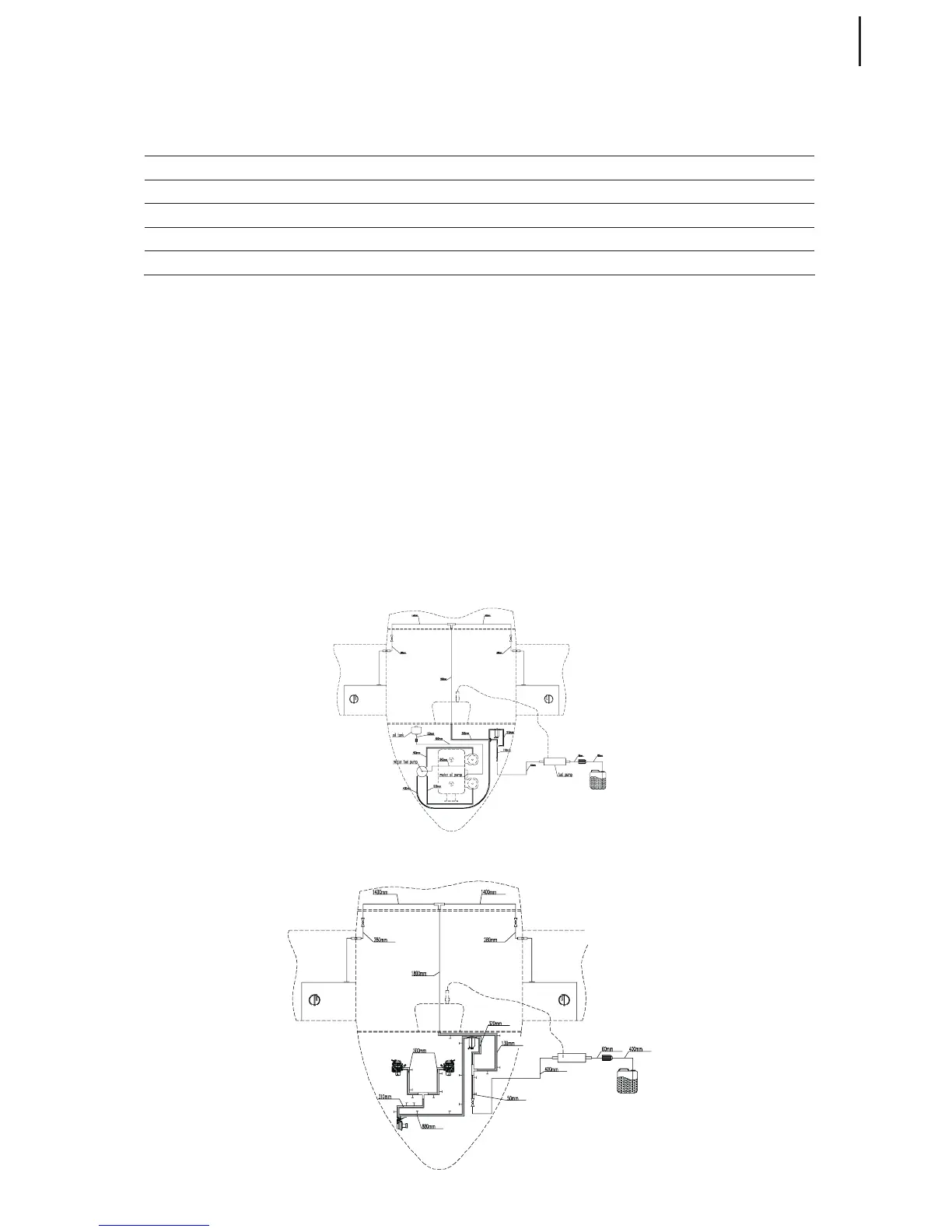

Schematic of fuel system - models 503 and 582
Schematic of fuel system - model 912 (no fuel return circuit)
