Page 4 For technical questions, please call 1-888-866-5797. Item 58755
TO PREVENT SERIOUS INJURY AND DEATH: The correct bolts must be used
during assembly. Carefully compare bolts to Bolt Identification illustration above and the measurements
shown in the parts list and assembly diagrams near the end of this manual to make sure that the correct
bolts are used in the correct place.
WARNING! TO PREVENT SERIOUS INJURY: For safety and ease of
assembly, use two people to assemble the Shop Crane.
CAUTION! DO NOT TIGHTEN ANY BOLTS UNTIL YOU ARE FULLY FINISHED WITH ASSEMBLY.
OTHERWISE PARTS WILL NOT LINE UP PROPERLY.

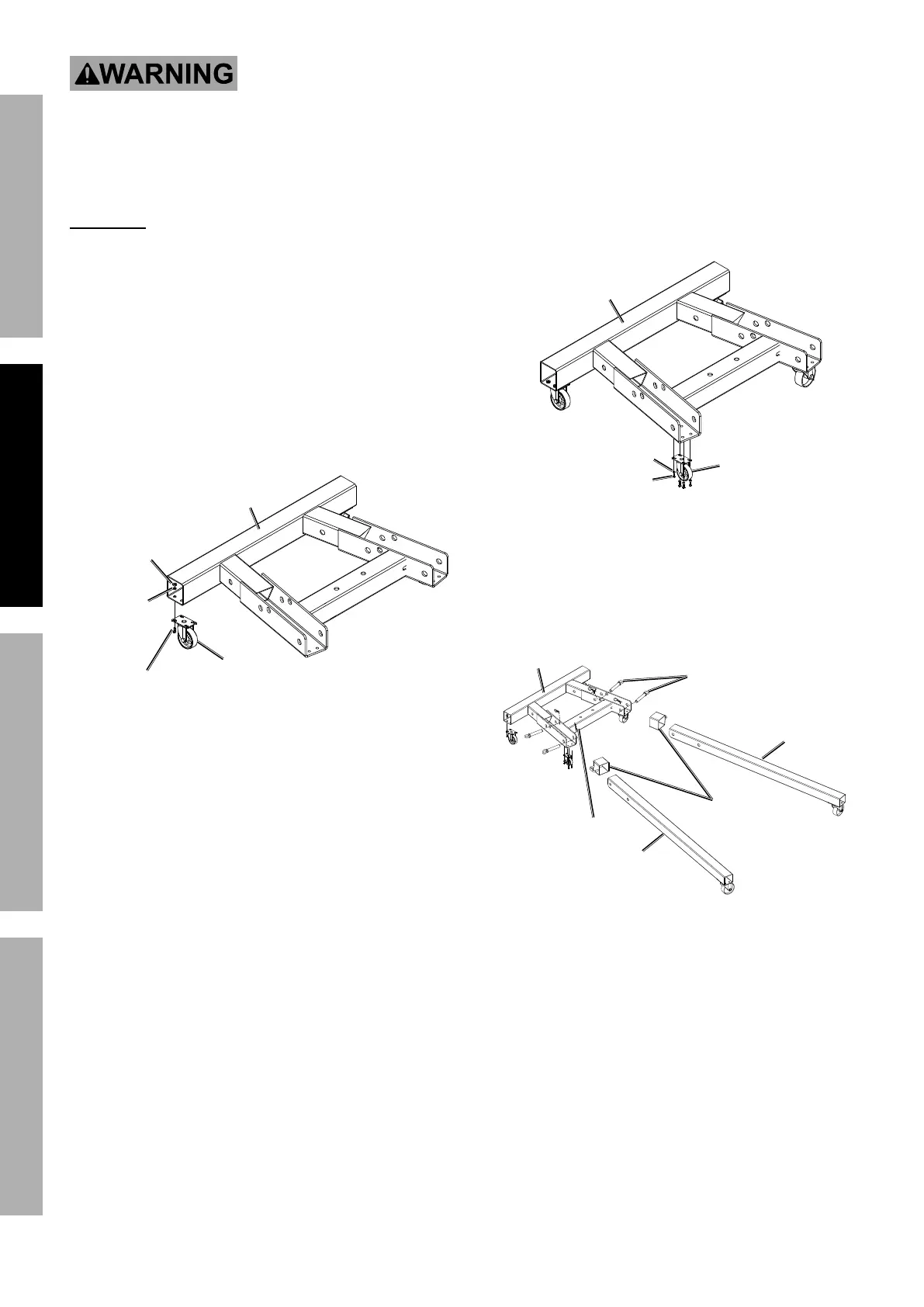

1. Place Base (21) on a secure, level surface.
2. Place two 3-1/2″ Swivel Caster
with Brake (33) on Base.
3. Install eight Bolts M8x20 (25) into Casters and Base.
4. Install eight Lock Washers (23) onto Bolts.
5. Install eight Nuts M8 (22) onto Bolts.
6. Tighten Nuts M8.
Base (21)
Nut
M8 (22)
Lock
Washer
(23)
Bolt M8x20 (25)
3-1/2″ Swivel Caster
with Brake (33)
7. Place two 3″ Swivel Casters (28) on Base.
8. Install eight Lock Washers (23)
onto eight Bolts M8x12 (29).
9. Install eight Bolts and Lock Washers
into Casters and Base.
10. Tighten eight Bolts.
Bolt M8x12 (29)
Lock Washer (23)
3″ Swivel
Caster (28)
Base (21)
11. Install two Movable Brackets (34) onto
Legs with loops facing outward.
12. Place two Leg (30) into Base.
13. Install four Lock Pin (26) into Base and Legs.
14. Place four R-Pin (27) onto Lock Pins.
Base (21)
Lock Pin (26)
Movable
Bracket (34)
Leg (30)
Leg (30)
R-Pin (27)
15. Install Main Post (14) onto Base.
16. Install two Hex Bolts M14x100 (8)
through Main Post and Base.
17. Place two Flat Washers (9) onto Bolts.
SAFETY OPERATION MAINTENANCESETUP
