Page 6 For technical questions, please call 1-888-866-5797. Item 58755

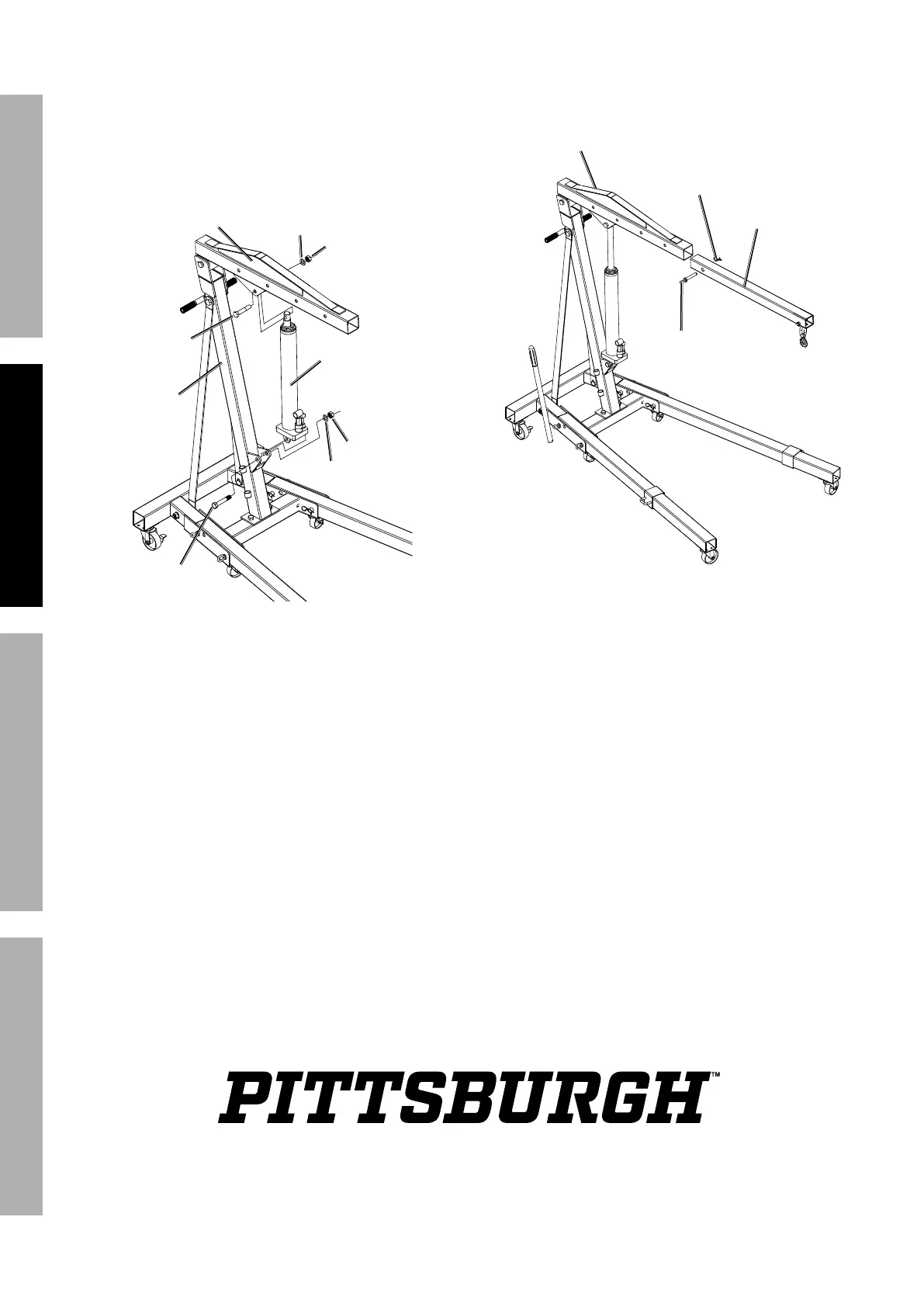

40. Place Nut M16 (13) on Bolt.
41. Tighten Nut.
42. Place Flat Washer (12) onto Hex Bolt M16x90 (20).
43. Place Nut M16 (13) onto Bolt.
44. Tighten Nut.
Jack (19)
Hex Bolt
M16x90 (20)
Hex Bolt
M16x80 (11)
Flat Washer (12)
Flat Washer (12)
Nut M16 (13)
Nut M16 (13)
Main Post (14)
Boom (7)
45. Place Boom Extension (6) into Boom (7).
46. Install Long Pin (32) through Boom and Boom
Extension, and attach R-Pin (27) to end of Long Pin.
Long Pin (32)
R-Pin (27)
Boom
Extension (6)
Boom (7)
SAFETY OPERATION MAINTENANCESETUP
