Pittsburgh 58755 - Handrail and Support Strap Assembly; Boom and Jack Installation

Page 5For technical questions, please call 1-888-866-5797.Item 58755
Note: Do not tighten two Nuts M14 (10)
until Shop Crane is fully assembled.
18. Place two Nuts M14 (10) onto Bolts then
thread two Nuts onto Bolts by hand until
snug and then loosen a few turns.
Hex Bolt M14x100 (8)
Flat Washer (9)
Nut M14 (10)
Main Post (14)
(Do Not
Tighten)
Base (21)
19. Place Handrail (31) onto Main Post then place
Support Straps (17) onto Handrail, refer to Figure A:
Handrail and Support Strap Configuration.
20. Install Hex Bolt M16x110 (16) through
Support Strap, Handrail flange, Main Post,
Handrail flange and Support Strap.
21. Place Flat Washer (12) onto Bolt.
22. Place Nut M16 (13) onto Bolt then thread Nut onto
Bolt by hand until snug and then loosen a few turns.
23. Place two Support Straps (17) onto inner Base (21).
Ensure Support Straps angle towards Main Post.
24. Install two Hex Bolts M16x100 (15)
through Base and Support Straps.
25. Place two Flat Washers (12) onto Bolts.
Note: Do not tighten two Nuts M16 (13)
until Shop Crane is fully assembled.
26. Place two Nuts M16 (13) onto Bolts then
thread two Nuts onto Bolts by hand until
snug and then loosen a few turns.
Support Strap (17)
Flat
Washer (12)
Flat Washer (12)
Nut
M16 (13)
Nut M16 (13)
Hex Bolt
M16x100 (15)
Hex Bolt
M16x110 (16)
Handrail (31)
Main
Post (14)
Leg (30)
Base
(21)

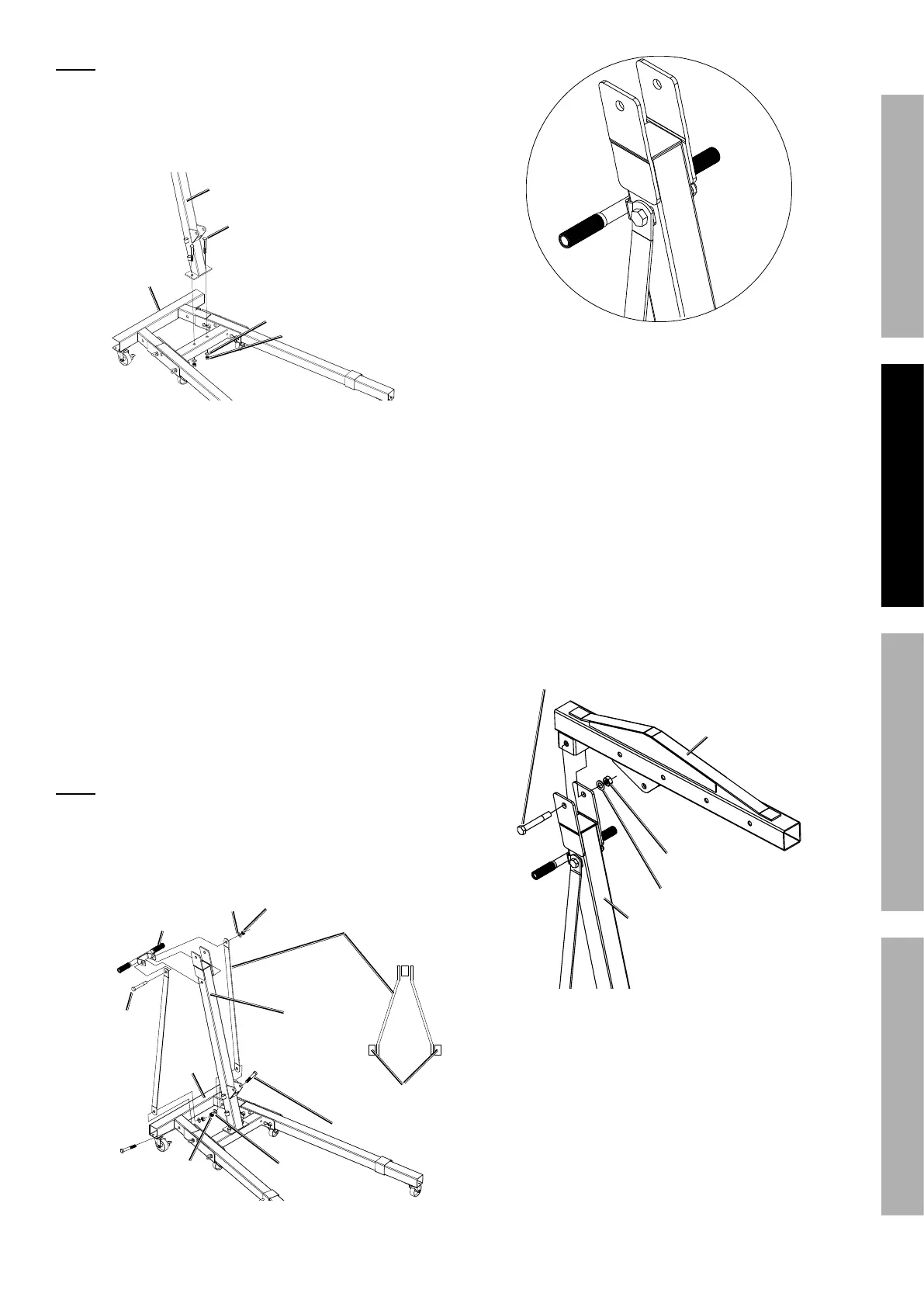

Figure A: Handrail and Support Strap Configuration.
27. Tighten two Nuts M14 (10) on Main Post and Base.
28. Tighten two Nuts M16 (13) on
Base and Support Straps.
29. Tighten Nut M16 (13) on Support Straps,
Handrail and Main Post.
30. Place Boom (7) into Main Post.
31. Install Hex Bolt M16x110 (16)
through Main Post and Boom.
32. Place Flat Washer (12) onto Bolt.
33. Place Nut M16 (13) onto Bolt.
34. Tighten Nut.
Hex Bolt M16x110 (16)
Boom (7)
Flat Washer (12)
Nut M16 (13)
Main Post (14)
35. Place lower Jack (19) onto Main Post (14)
flange with Handle insert facing outward.
36. Install Hex Bolt M16x90 (20) through
Main Post flange and Jack.
37. Place Jack cylinder into Boom (7) flange.
38. Install Hex Bolt M16x80 (11) through
Boom flange and Jack cylinder.
39. Place Flat Washer (12) onto Hex Bolt M16x80 (11).
