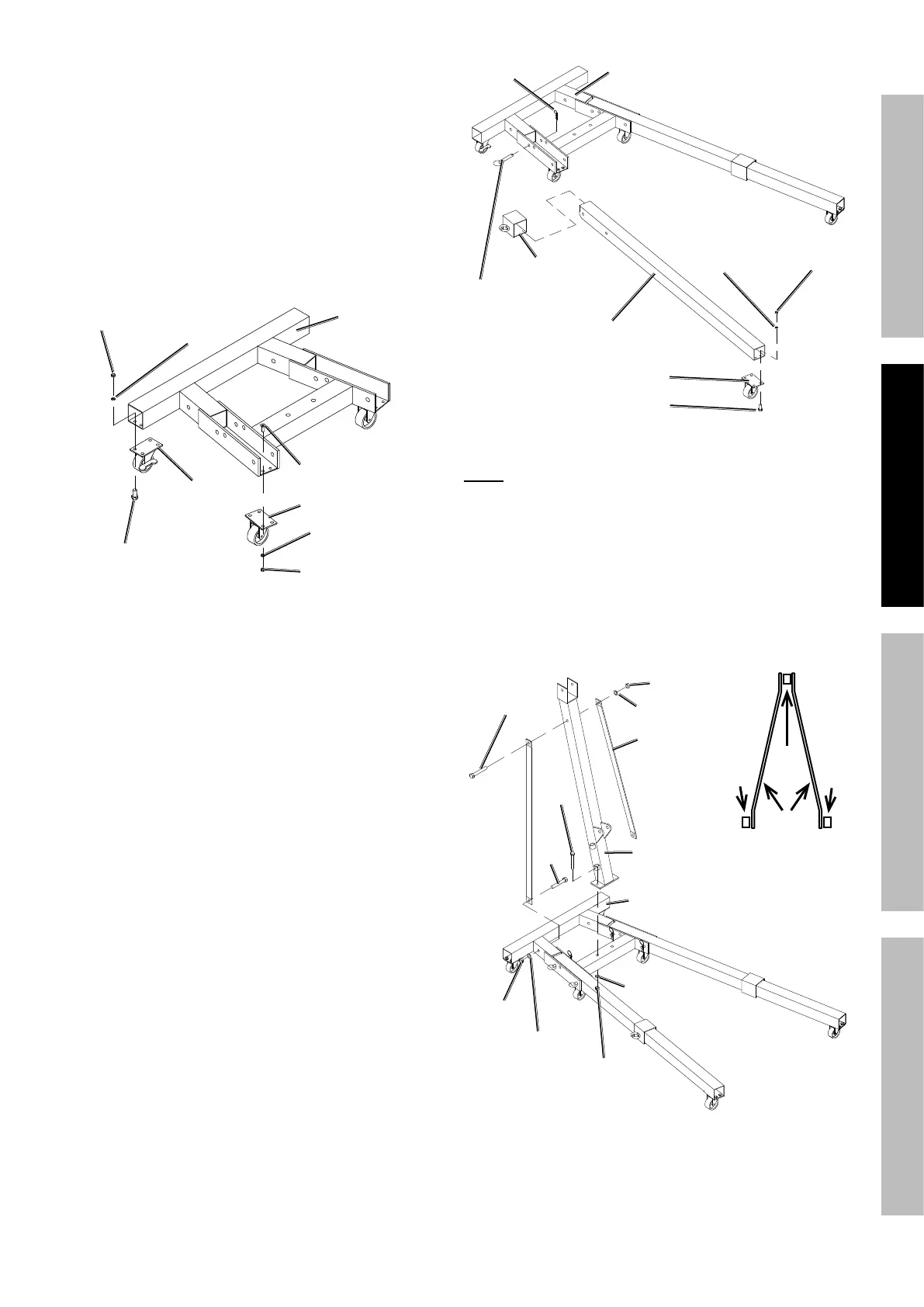

Page 5For technical questions, please call 1-888-866-5797.Item 58794
1. Attach the two 3-1/2″ Brake Casters(31) to the
Base(28) by aligning the four mounting holes in
each 3-1/2″ Brake Caster(31) with the four mounting
holes on the underside of each Base(28) end.
Secure them in place using four Caster Bolts(6A),
Lock Washers(8), and Nuts(9). See Figure A.
2. Attach the two 3″ Casters(10) to the Base(28)
by aligning the four mounting holes in each 3″
Caster(10) with the four mounting holes on the
underside of each Base(28) end. Secure them
in place using four Flat Head Caster Bolts(6B),
Lock Washers(8), and Nuts(9). See Figure A.
3-1/2" Brake
Caster (31)
Nut (9)
Caster Bolt (6A)
Lock
Washer (8)
Base (28)
Nut (9)
Lock
Washer (8)
Flat Head Caster
Bolt (6B)
3" Caster (10)
Figure A
3. Attach a 3-1/2″ Caster(7) to each Leg(29) by
aligning the four mounting holes in each 3-1/2″
Caster(7) with the four mounting holes on
the underside of each Leg(29). Secure them
in place using four Caster Bolts(6A), Lock
Washers(8), and Nuts(9). See Figure B.
4. Place a Slider(32) on each Leg(29), making sure
the ring is facing out as illustrated. Secure each
Leg(29) to the Base with two Leg Pins(11). After all
four Leg Pins(11) are inserted, insert one R-Pin(14)
through the small hole at the end of each Leg
Pin(11) until it snaps into place. See Figure B.
Slider (32)
Caster Bolt (6A)
Base (28)
Nut (9)
Lock
Washer (8)
R-Pin (14)
3-1/2" Caster (7)
Leg (29)
Leg Pin (11)
Figure B
Note: Make sure Leg Pins(11) and R-Pins(14)
are secure before proceeding.
5. Mount the Support Post(22) to the Base(28)
with the two Boom Bolts(2), Washers(12),
and Nuts(13). See Figure C.
6. Mount the two Support Braces(21) to the Support
Post(22) with a Hinge Bolt(20), Washer(4), and
Nut(5), and to the Base(28) with Frame Bolts(3),
Washers(12) and Nuts(13). See Figure C.
Base (28)
Support
Post (22)
Support
Brace (21)
Washer (4)
Nut (5)
Washer (4)
Bolt
(2)
The bends of the
Supports face
out at the top and
in at the bottom
as shown above.
BaseBase
Post
Support
Bolt
(3)
Nut (5)
Bolt (20)
Washer (12)
Nut (13)
Figure C
SAFETYOPERATIONMAINTENANCE SETUP
