Operating Instructions
Read ENTIRE IMPORTANT SAFETY INFORMATION section at beginning of this manual
including all text under subheadings therein before set up or use of this product.
Note: Once Assembly is complete, tighten ALL Bolts before initial operation.
Lifting and Lowering
1. Locate the hole on the Boom with a weight limit
higher than the weight you will be lifting.
For example: Locate the 1/2 TON
hole on the Boom for a load that is
under 1/2 Ton. See Figure F.
2. Adjust the Boom Extension(24) so the hole farthest
from the hook-end aligns with the chosen hole
on the Boom(23). Secure into place by inserting
the Boom Pin(30) through all aligned holes and
securing in place with the R-Pin(14). See Figure F.
WARNING! Keep clear of the object that is being
lifted by the Shop Crane. Be aware of the possibility of
a load slipping off the Hook and Chain. An item that falls
from the Crane can cause serious injury.
3. Move the Shop Crane so that the
Chain / Hook(26) are directly above the
Load to be lifted. See Figure F.
4. Securely attach the Chain / Hook(26)
to the Load. See Figure F.
Boom
Pin (30)
R-Pin (14)
Boom
Extension (24)
Boom (23)
3/8 Ton Load
Chain /
Hook (26)
Ram (25)
Ram
Handle
(27)

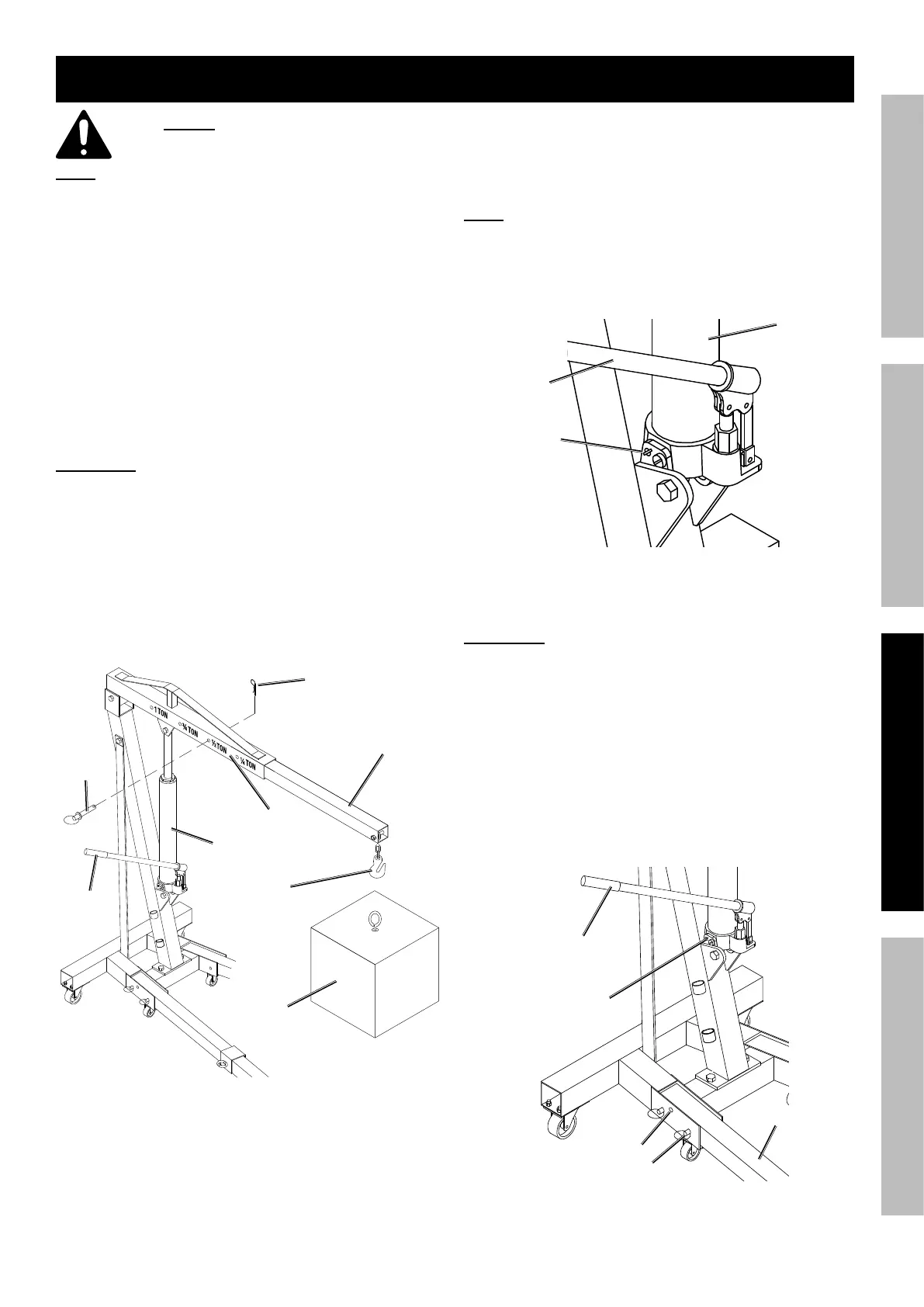

Figure F
5. To raise the Boom, turn the Ram’s Release
Valve(7A) fully clockwise (right). Insert the Ram
Handle(27) into the Ram(25) and pump (up
and down) repeatedly until the Load has been
lifted to the desired height. See Figure G.
Note: Fully tighten the Release Valve(7A)
or else the Ram(25) may lower or may
not be able to reach the full height.
6. To lower the Shop Crane, SLOWLY turn the Release
Valve(7A) counterclockwise (left). See Figure G.
Ram (25)
Release
Valve (7A)
Ram
Handle (27)
Figure G
Folding the Frame
WARNING! Do not fold the Shop Crane while loaded.
1. Lower the Shop Crane by turning the Release
Valve(7A) counterclockwise (left). See Figure H.
2. Remove R-Pins(14) from the front Leg
Pins(11). Remove the front Leg Pins(11).
Leave rear Leg Pins(11) in. See Figure H.
3. Raise the Legs until they rest against the Ram
Handle(27). Insert a front Leg Pin(11) into the
middle hole of the Base(25), for each Leg(29),
and reinsert R-Pins(14). See Figure H.
Front Leg Pin (11)
with R-Pin (14)
Middle Hole
Ram
Handle (27)
Leg (29)
Release
Valve (7A)
Figure H
