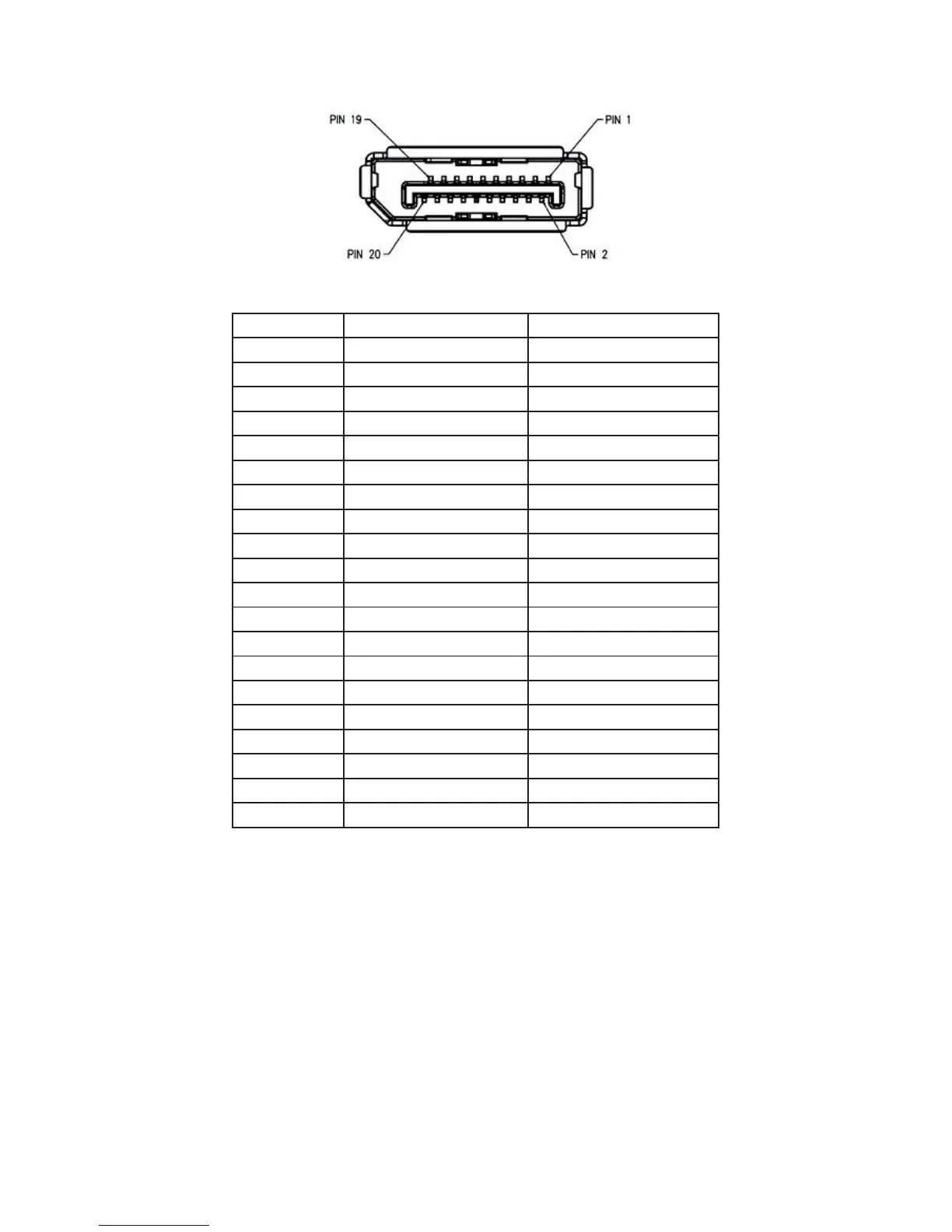

20-Pin Display Port Signal Cable
Pin No. Mnemonic Signal
1 ML Lane 3 (n) Lane 3 -
2 GND Ground
3 ML Lane 3 (p) Lane 3 +
4 ML Lane 2 (n) Lane 2 -
5 GND Ground
6 ML Lane 2 (p) Lane 2 +
7 ML Lane 1 (n) Lane 1 -
8 GND Ground
9 ML Lane 1 (p) Lane 1 p
10 ML Lane 0 (n) Lane 0 -
11 GND Ground
12 ML Lane 0 (p) Lane 0 +
13 GND Ground
14 GND Ground
15 AUX CH (p) Aux Channel +
16 GND Ground
17 AUX CH (n) Aux Channel -
18 HPD Hot Plug Detect
19 Return Return
20 DP PWR NC
