Planar IX2851 - Page 25

24

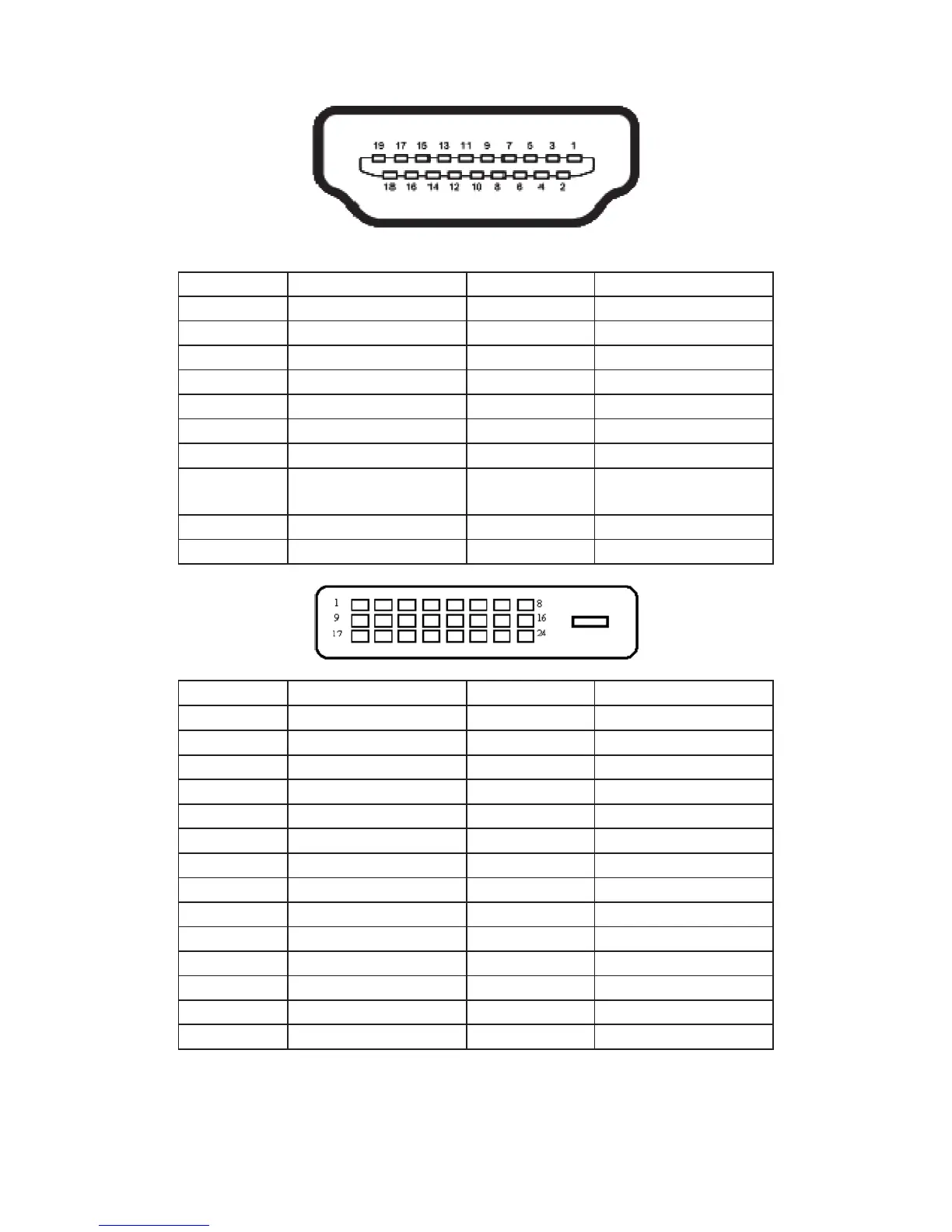

19 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. TMDS Data 2+ 11. TMDS Clock Shield
2. TMDS Data 2 Shield 12. TMDS Clock-
3. TMDS Data 2- 13. CEC
4. TMDS Data 1+ 14. N.C.
5. TMDS Data 1 Shield 15. DDC SCL
6. TMDS Data 1- 16. DDC CLK
7. TMDS Data 0+ 17. DDC/CEC Ground
8. TMDS Data 0 Shield 18. +5V Power
(max 50mA)
9. TMDS Data 0- 19. Hot Plug Detect
10. TMDS Clock+
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TMDS Data 2- 13 TMDS Data 3+
2 TMDS Data 2+ 14 +5V Power
3 TMDS Data 2/4 Shield 15 Ground (for +5V)
4 TMDS Data 4- 16 Hot Plug Detect
5 TMDS Data 4+ 17 TMDS Data 0-
6 DDC Clock 18 TMDS Data 0+
7 DDC Data 19 TMDS Data 0/5 Shield
8 NC 20 TMDS Data 5-
9 TMDS Data 1- 21 TMDS Data 5+
10 TMDS Data 1+ 22 TMDS Clock Shield
11 TMDS Data 1/3 Shield 23 TMDS Clock +
12 TMDS Data 3- 24 TMDS Clock -
