CONTROLS AND CONNECTORS
POWER CORD
Power Source:
1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an internal universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord into your LCD monitor’s power input socket, The AC-power
cord may be connected to either a wall power outlet or the power outlet socket on your
PC, depending on the type of power cord supplied with your LCD monitor.
SIGNAL CABLE
Connecting the Signal Cable :Plug one end of the signal cable to the LCD monitor and the
other end to a computer or a video source.
Caution: If the AC outlet is not grounded (with three holes), install the proper grounding adapter
(not supplied).
1 2 3 4

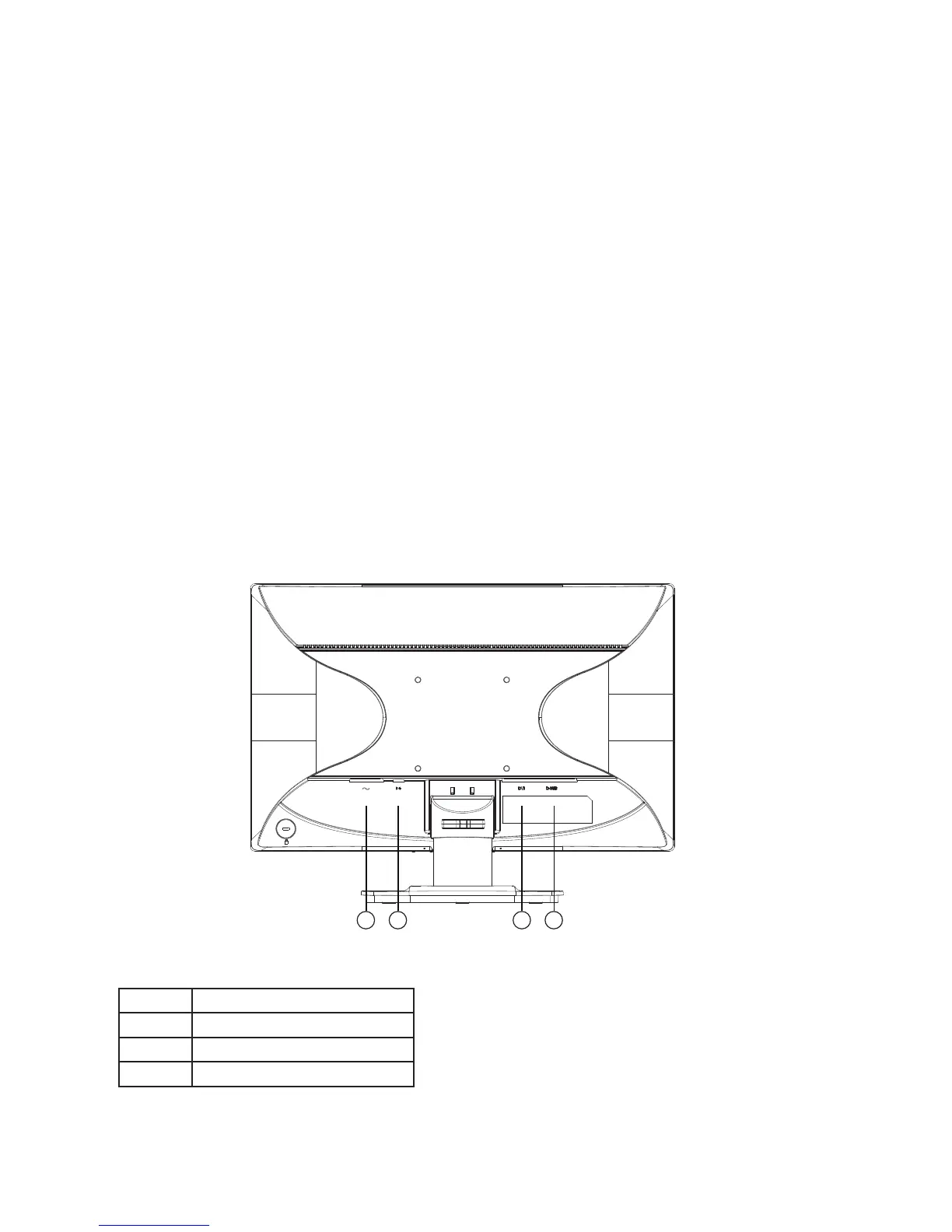

Figure 2 Connecting Cables
1. Power Cable
2. Audio cable
3. DVI Cable
4. D-SUB cable
