Advanced Operation—OSD Menu
You can use the OSD menu to adjust various settings for your
LED LCD monitor
.

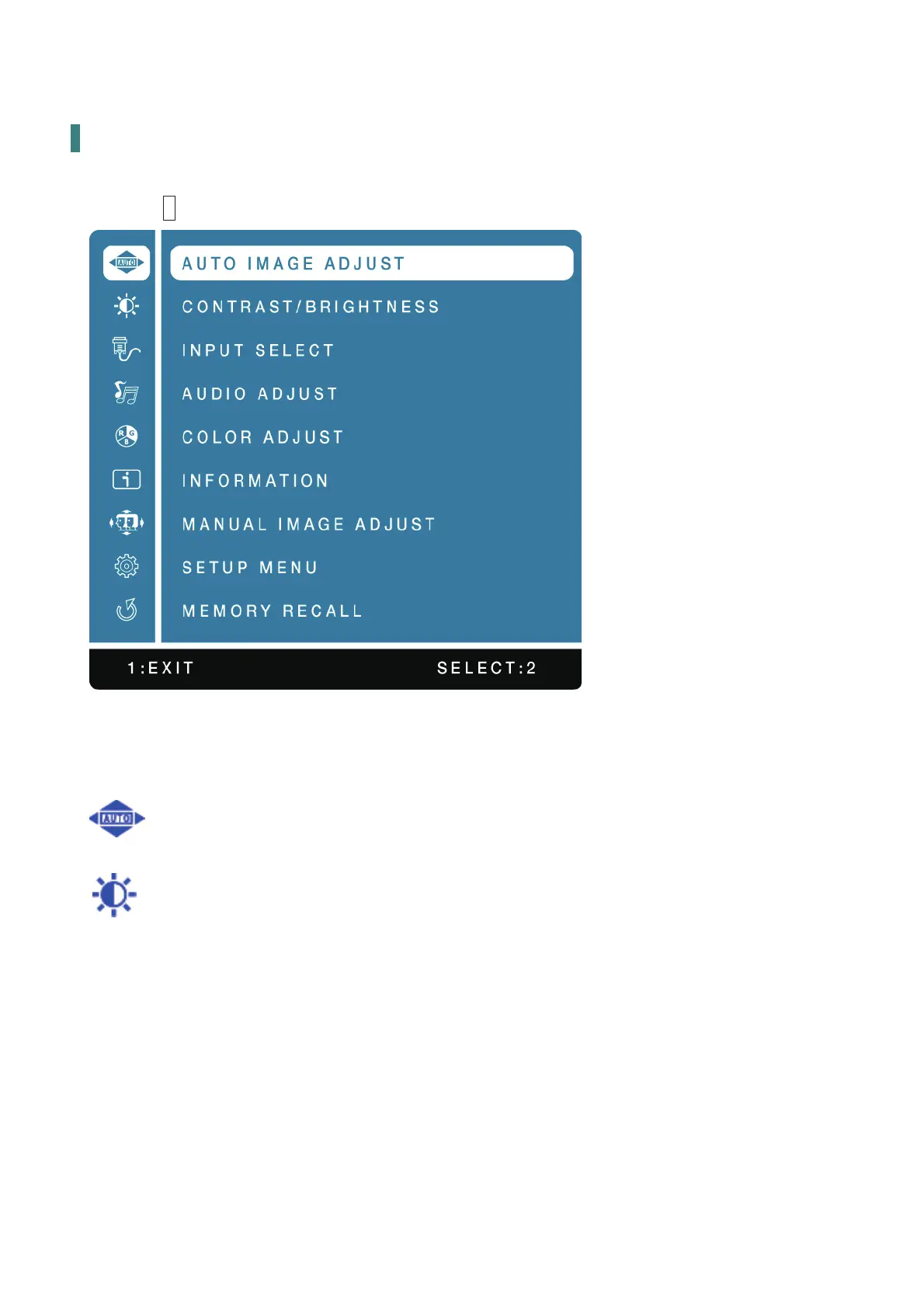

Press the 1 button to display the OSD Menu, and use ▲▼ to select the desired OSD menu.
Short Cuts Function from the button(s)
AUTO IMAGE ADJUST: To auto adjust Horizontal Position, Vertical Position, Phase (Fine
Tune) and Clock (H. Size) of the screen.
CONTRAST/BRIGHTNESS: To manually adjust the CONTRAST, BRIGHTNESS, ECO MODE
or OVER DRIVE of screen image.
CONTRAST: To adjust the foreground white level of screen image.
▲: increase contrast, ▼: decrease contrast.
BRIGHTNESS: To adjust the luminance of the video.
▲: increase brightness, ▼: decrease brightness.
ECO MODE: Allows the user to change the ECO mode. Brightness adjustment will be
disabled when ECO is active.
Press ▲ or ▼ key to adjust the ECO Mode in three levels.
(Mode 1: Backlight 75%, Mode 2: Backlight 50%, Mode 3: Backlight 15%)
