Start Your Installation
Please follow these instructions so that you can hook up the cables to associated connectors.

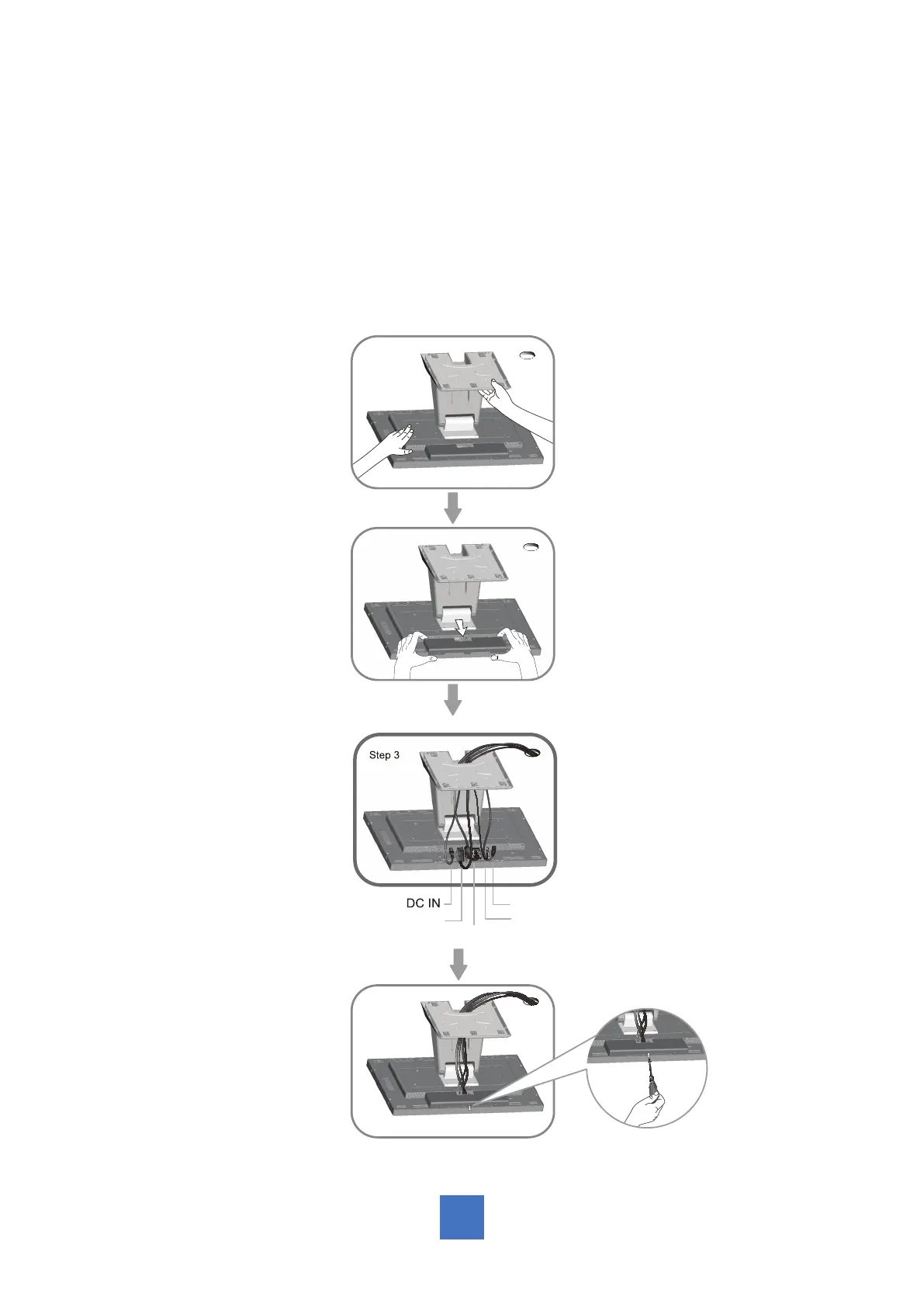

1. Lay the display at on an even surface.
2. Move the stand into position as seen in the step 1 diagram.
3. Remove the cable cover as seen in the step 2 diagram.
4. Connect the cables to the appropriate connectors as seen in the step 3 diagram.
5. Re-attach the cable cover. Take the screw (CBM M3x6) out of the accessory box, and
insert the screw into the cable cover and monitor as seen in the step 4 diagram.
7
Step 2
Step 1
Step 2
Step 2
Step 4
AUDIO
VGA
USB
HDMI
To Next Page
