6
Basic Operation and Calibration/Reset Instructions
Before using the TFT Touchscreen LCD Monitor:
Connect external equipment properly.
Insert the power plug, and the power LED indicator will light orange.
To turn the TFT Touchscreen LCD M :
Press POWER button on the front. The power LED indicator light will be blue when the TFT
Touchscreen LCD Monitor is on.
Using the OSD Menu
Use OSD menus to adjust settings by using the menu button on the front of the TFT Touchscreen
LCD Monitor.
Displays main menu
1
Exits from OSD menu
2 Selects between VGA, DVI or Auto mode
Select the desired item when in OSD menu
▼
When not in OSD menu, directly enters Volume adjust
Select the desired item when in OSD menu
▲
When not in OSD menu, directly enters Preset Mode
▼ + ▲ Recalls both Contrast and Brightness (when not in OSD menu)

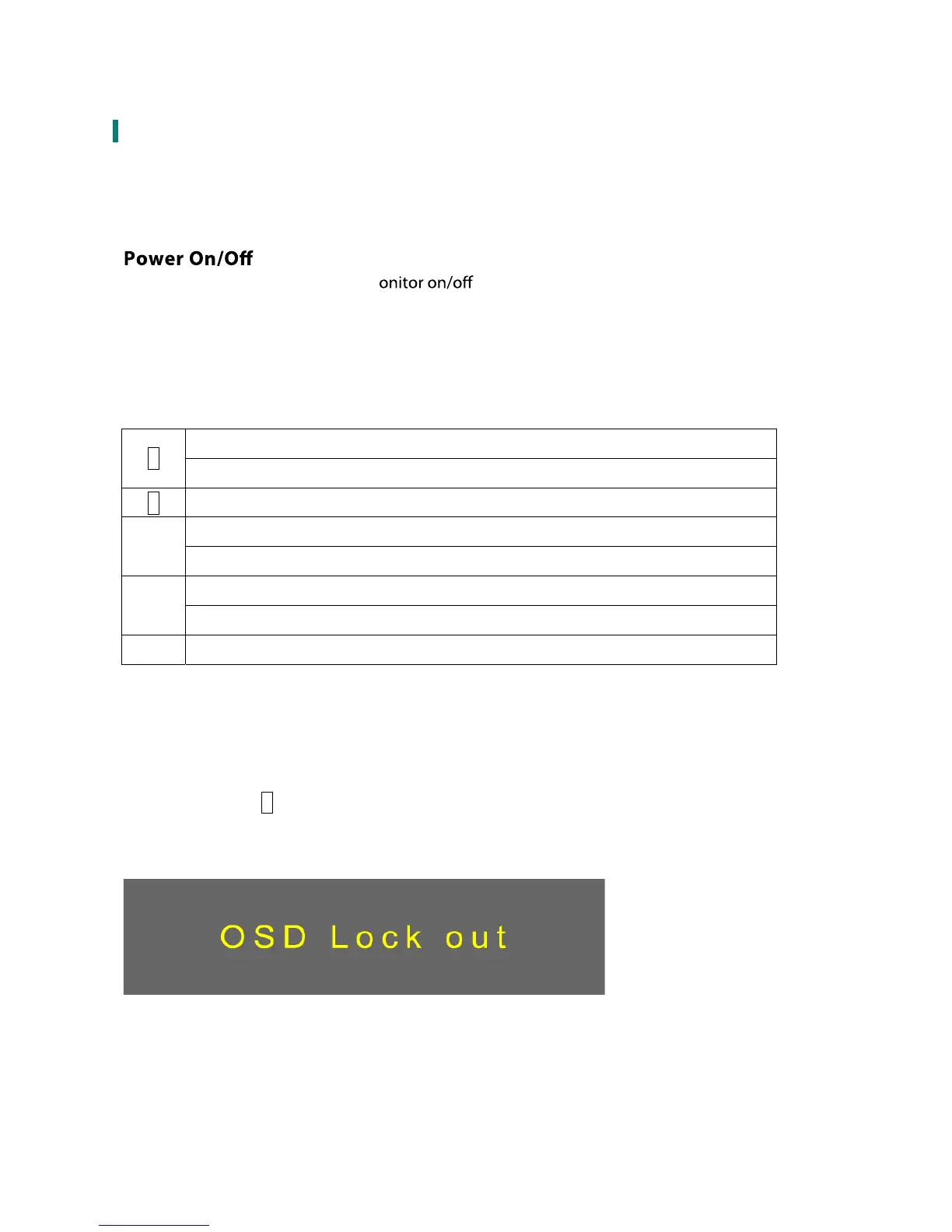

OSD Lock Out Function
When TFT Touchscreen LCD Monitor is in normal mode, the “OSD Lock Out” function can be
enabled.
Option 1: OSD lock – all 4 buttons are locked except the “POWER” button.
Press and hold the 1 button and the ▲ button for 10 seconds to lock the OSD buttons.
The TFT Touchscreen LCD Monitor will show an “OSD Lock Out” message for 3 seconds and the
message will disappear automatically.
Repeat this step to unlock.
