Quick Installation
1.
Connect either VGA, HDMI or DisplayPort Video Source from the monitor to the computer.
Make sure both monitor and computer are powered OFF. Please note. The monitor ships
with DisplayPort and HDMI cables only. VGA cable may be sourced separately from a cable
supplier.
2. Connect the audio cable from audio output of computer to the audio input of the monitor.
3. Connect the earphone to the earphone output terminal of the monitor. (Earphone sold
separately).
4. Connect power cord to a properly grounded AC outlet, and then to the monitor.
5. Power-ON computer and then POWER-ON the monitor.
6. Set the timing mode on your computer. Recommended resolution and refresh rate is
1920 x 1080 @ 60Hz.

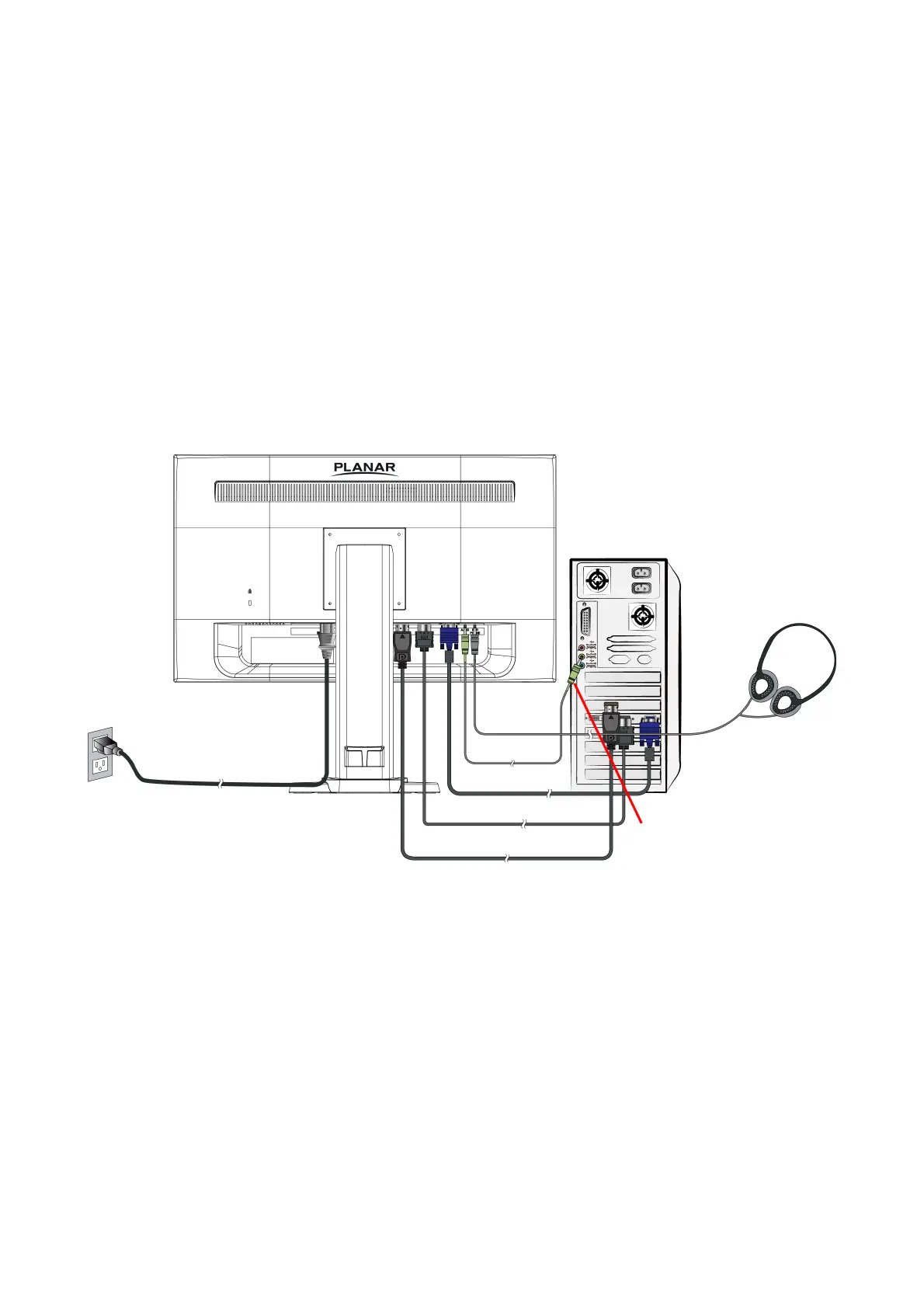

Figure:
PC
Earphone
(not supplied)
VGA cable
HDMI cable
(not supp
l
ie
d
)
Power cable
Audio cable
DisplayPort cable
