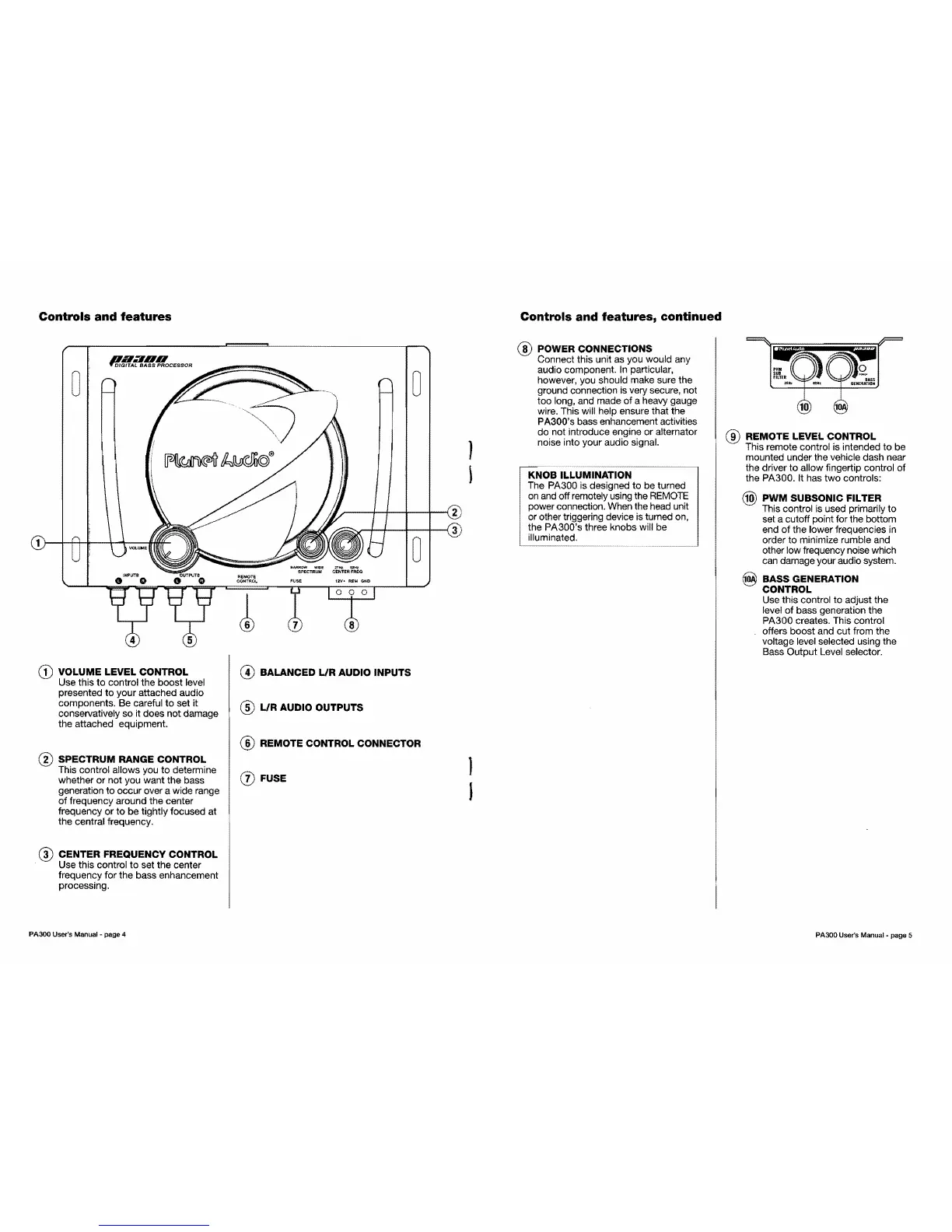

Controls and
features
1l1!f!.'4!1oCESSOR
REMOTe
CONTROl.
o
CD
VOLUME LEVEL CONTROL
Use this
to
control the boost level
presented
to
your attached audio
components. Be careful
to
set it
conservatively so it does not damage
the attached equipment.
® SPECTRUM RANGE CONTROL
This control allows you
to
determine
whether
or
not you want the bass
generation
to
occur over a wide range
of
frequency around the center
frequency
or
to
be tightly focused at
the central frequency.
® CENTER FREQUENCY CONTROL
Use this control
to
set the center
frequency for the bass enhancement
processing.
PA300 User's Manual - page 4
@ BALANCED
UR
AUDIO INPUTS
®
UR
AUDIO OUTPUTS
® REMOTE CONTROL CONNECTOR
(j) FUSE
Controls and features, continued
® POWER CONNECTIONS
1
Connect this unit as you would any
audio component.
In
particular,
however, you should make sure the
ground connection is very secure, not
too long, and made
of
a heavy gauge
wire. This will help ensure that the
PA300's bass enhancement activities
do not introduce engine or alternator
noise into your audio signal.
KNOB ILLUMINATION
)
The PA300 is designed
to
be turned
on
and off remotely using the
REMOTE
power connection. When the head unit
or other triggering device is turned on,
the PA300's three knobs will be
illuminated.
1
J
® REMOTE LEVEL CONTROL
This remote control is intended
to
be
mounted under the vehicle dash near
the driver
to
allow fingertip control
of
the PA300. It has
two
controls:
@)
PWM SUBSONIC FILTER
This control
is
used primarily
to
set a cutoff point for the bottom
end
of
the lower frequencies
in
order
to
minimize rumble and
other low frequency noise which
can damage your audio system.
~
BASS GENERATION
CONTROL
Use this control
to
adjust the
level
of
bass generation the
PA300 creates. This control
offers boost and cut from the
voltage level selected using the
Bass Output Level selector.
PA300 User's Manual - page 5
