INTRODUCTION
OL ED IND I CAT ORS
A
FIG.1

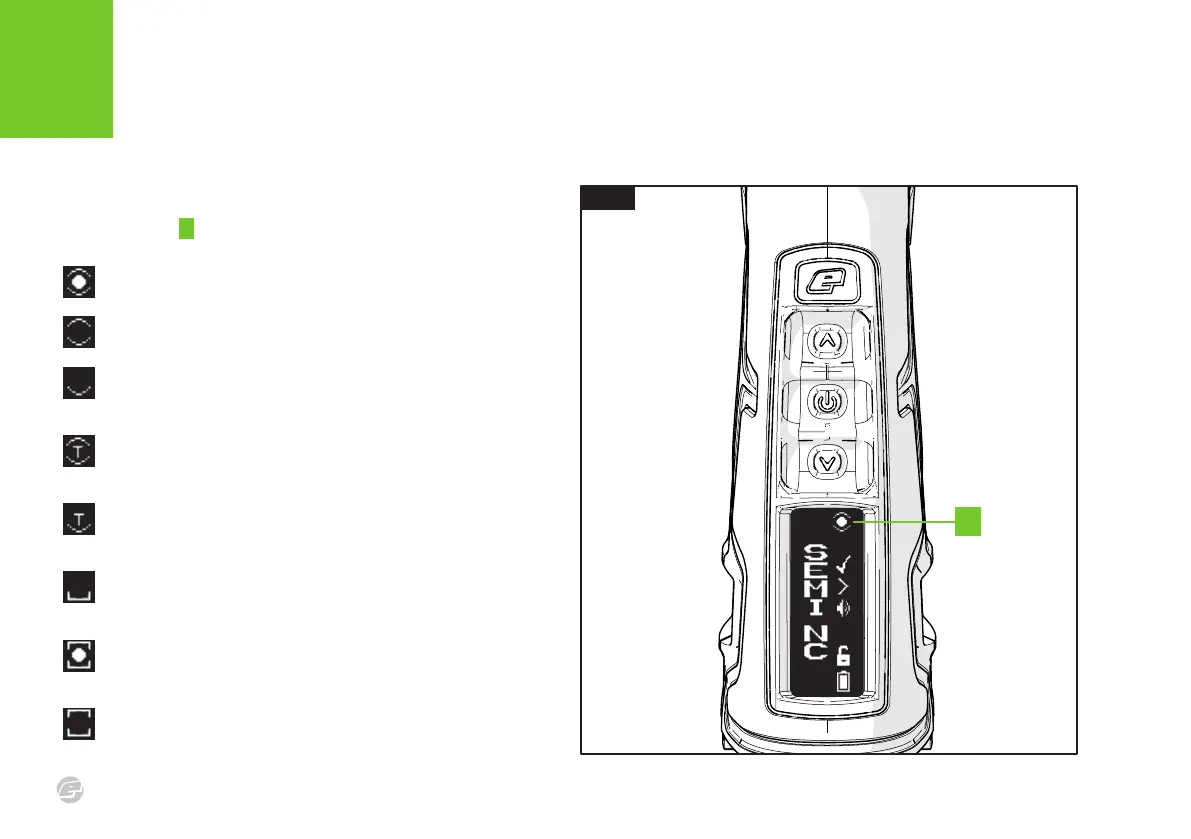

The BS indicator A displays the various states of the breech sensor.
BS ENABLED AND A BALL IS DETECTED
The marker can be fired up to the selected rate of fire.
BS ENABLED AND NO BALL IS DETECTED
The marker cannot be fired.
BS DISABLED
The marker can be fired up to the rate of fire set by the BS
OFF ROF parameter (see page 40).
BS ENABLED IN TRAINING MODE
Training mode is enabled and simulates firing up to the
selected rate of fire.
BS DISABLED IN TRAINING MODE
Training mode is enabled and simulates firing up to the rate
of fire set by the BS OFF ROF parameter.
BS DISABLED DUE TO DETECTION FAULT
A fault has temporarily disabled the BS and reduced the rate
of fire to 2bps below the BS ON ROF parameter.
BS FAULT CLEARED AND A BALL IS DETECTED
A fault has been cleared and the marker can be fired up to
the selected rate of fire.
BS FAULT CLEARED AND NO BALL IS DETECTED
A fault has been cleared but the marker cannot be fired.
