C S 3
16
INTRODUCTION
RE MOVI NG T HE GRI P S
A
C
B
D
FIG .3
FIG .1
FIG .4
FIG .2
WARNING!
Always make sure that the marker is OFF with a barrel blocking device installed and
that no paintballs are in the marker or loader before removing/replacing the grips.

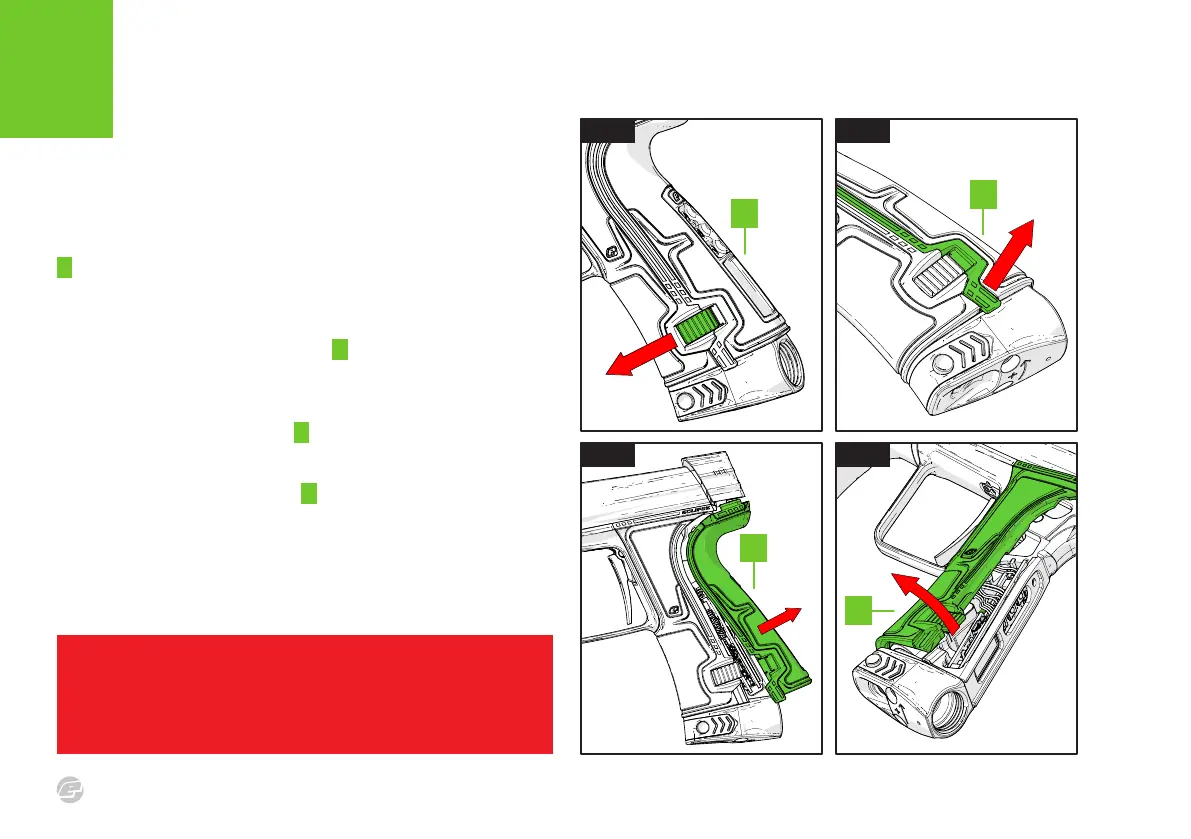

FIG.1
The marker MUST be degassed and the bolt bonnet pulled up before
the grips can be removed. Then, slide the grip retainer tabs forwards
A which will unlock the grip halves. This needs to be done on both
sides of the grips.
FIG.2
Use the plastic section of the rear grip B to leverage the rear grip
away from the frame.
FIG.3
Lift and pull the rear grip section C away from the frame.
FIG.4
Lift and pull the front grip section D away from the frame.
Removing the grips will allow access to the tournament lock, wiring,
circuit board and its connections.
