C S 3
17
INTRODUCTION
RE PLAC ING THE GRI PS
WARNING!
Always make sure that the marker is OFF with a barrel blocking device installed and
that no paintballs are in the marker or loader before removing/replacing the grips.

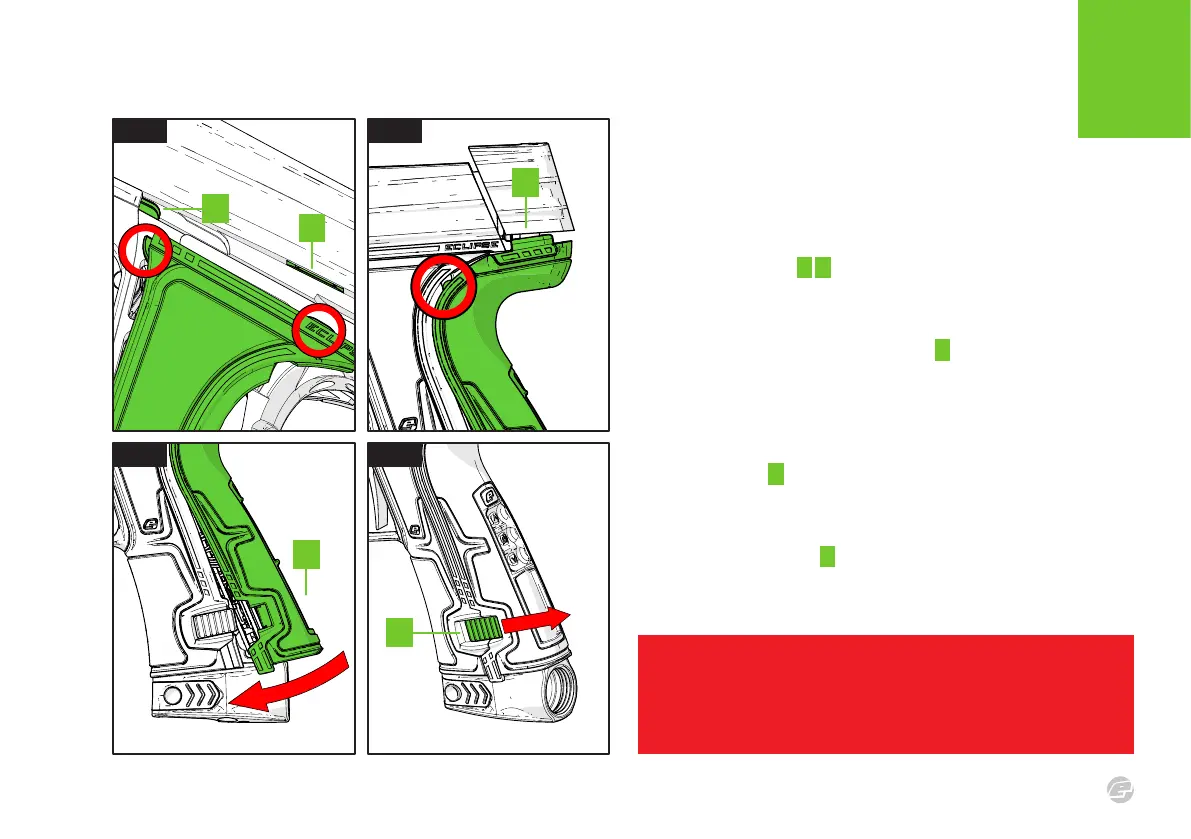

FIG.1
Replace the grips in the reverse order of how you removed them. You
MUST check that the location tabs in the front grip section (circled)
clip beneath the body A B before fitting the front grip section.
FIG.2
This also applies to the rear grip section. Make sure the location tab
(circled) clips into place and the rear tabs C sit beneath the bolt
bonnet. Note, the bolt bonnet must be in the UP position when
fitting, then DOWN to secure the rear grips.
FIG.3
Once the location tabs are in place simply simply swing the rear grip
section into place D .
FIG.4
Finally, push the grip retainer tabs towards the back of the grip to
secure the complete grip E .
A
B
D
C
E
FIG.3
FIG.1
FIG.4
FIG.2
